– 11 –
CD-PC3500
CP-C3500
1

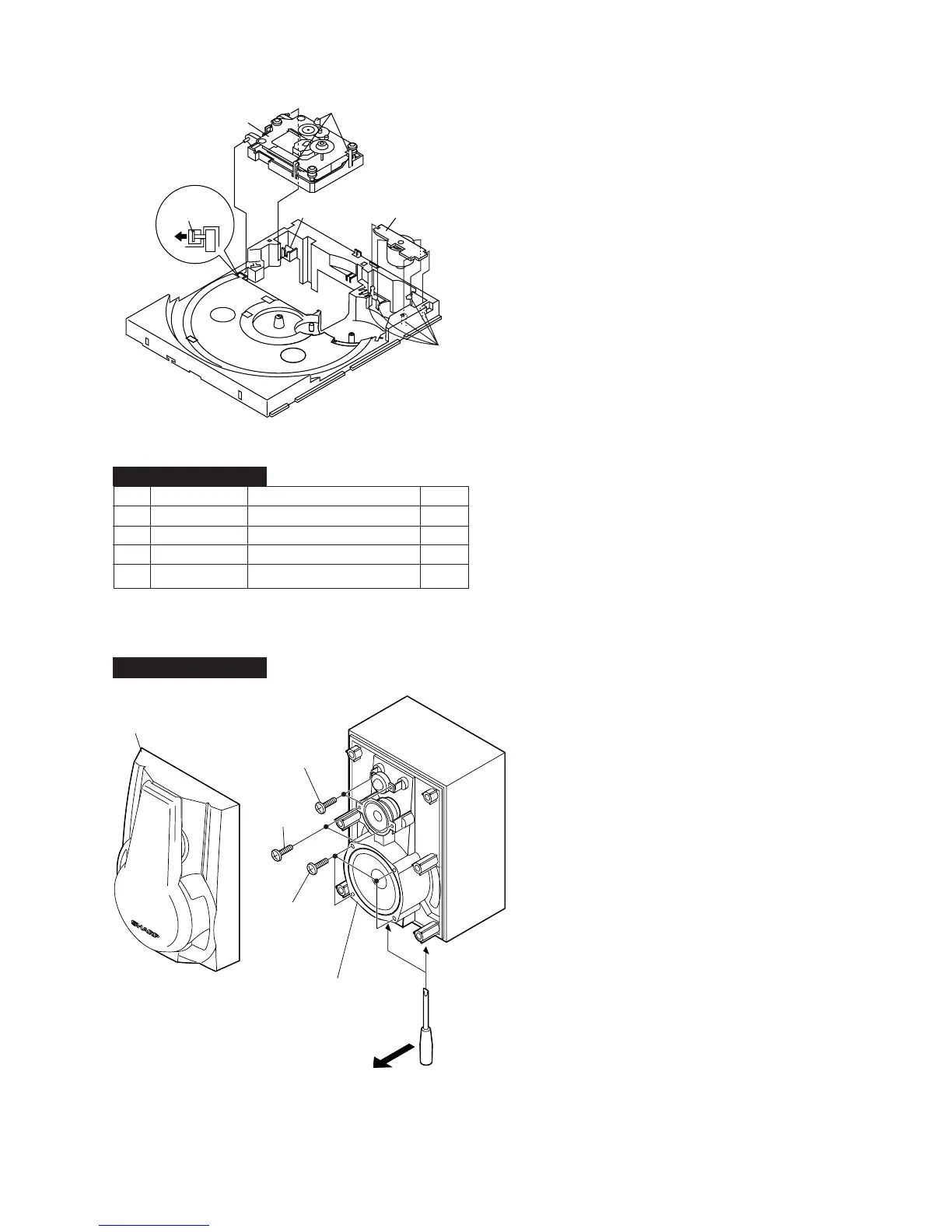

Front Panel
1. Front Panel
............
(A1) x1
11-2
2
Woofer
1. Screw
.....................
(B1) x4
11-2
4
Tweeter
1. Screw
....................
(C1) x2
11-2
5
Super Tweeter
1. Screw
....................
(D1) x2
11-2
STEP
REMOVAL
PROCEDURE
FIGURE
CP-C3500
Figure 11-2
Figure 11-1
(P2) x3
(P1) x1
(Q1) x5
(P1) x1
Loading
Motor
PWB
CD
Mechanism
Screw Driver
Woofer
(A1)x1
(B1)x4
Ø4x12mm
(C1)x2
Ø3x10mm
(D1)x2
Ø3x10mm
10
12
Table of Contents
Table of Contents
1
Important Service Notes (for U.s.a. Only)
2
Specifications
3
Names of Parts
4
CD Control Section
6
Operation Manual
7
Quick Guide
8
Disassembly
9
Removing and Reinstalling the Main Parts
12
Adjustment
13
Front View
16
Notes on Schematic Diagram
16
Block Diagram
17
Schematic Diagram / Wiring Side of P.w.board
20
Voltage
40
Waveforms of CD Circuit
41
Troubleshooting (CD Section)
42
Function Table of IC
46
Fl Display
52
Parts Guide
53
Packing of the Set (for U.s.a. Only)
66
