CD-XP200W
– 8 –

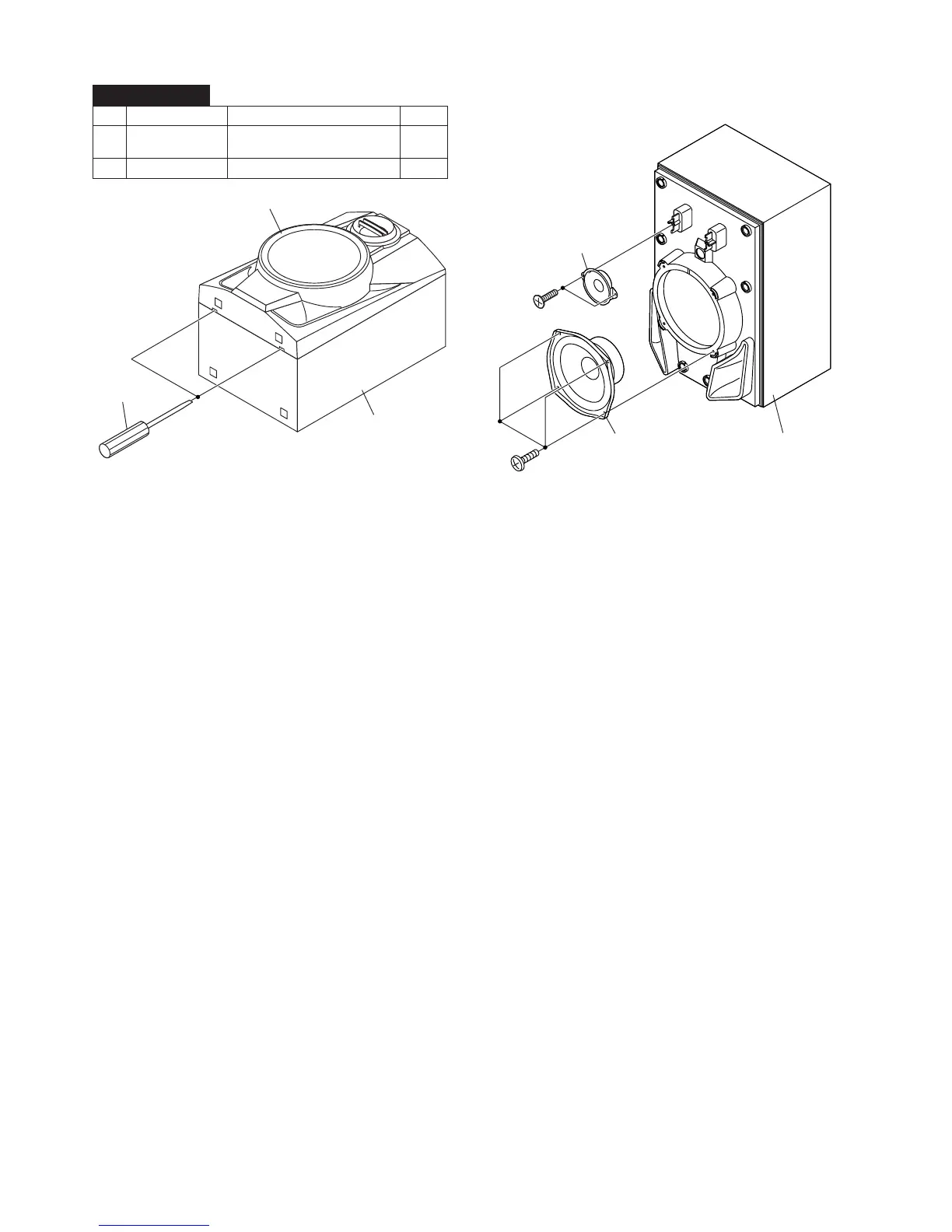

Figure 8-1
Figure 8-2
1
Woofer
1. Front Panel
.............
(A1) x1
8-1
2. Screw
......................
(A2) x4
8-2
2
Tweeter
1. Screw
......................
(B1) x2
8-2
STEP
REMOVAL
PROCEDURE
FIGURE
Screwdriver
Driver should
be pried away
from Speaker Box.
(A1)x1
Speaker Box
Ass'y
(A2)x4
ø4x12mm
(B1)x2
ø3x10mm
Speaker Box
Ass'y
Woofer
Tweeter
CP-XP200
7
9
Table of Contents
Table of Contents
1
Sharp Corporation
1
Safety Precaution for Service Manual
2
Voltage Selection
2
Ac Power Supply Cord and Ac Plug Adaptor
2
Specifications
3
Names of Parts
4
1. Remote Control Transmitter
5
Disassembly
6
Removing and Reinstalling the Main Parts
9
Adjustment
10
Tuner Section
11
Test Mode
12
Notes on Schematic Diagram
14
Types of Transistor and Led
14
Block Diagram
15
Schematic Diagram / Wiring Side of P.w.board
18
Voltage
36
Waveforms of CD Circuit
37
Troubleshooting
38
Function Table of IC
42
Fl Display
50
Parts Guide
51
Remote Control
57
