Sharp CD-XP700 User Manual

CD-XP700/CD-XP7700
– 36 –

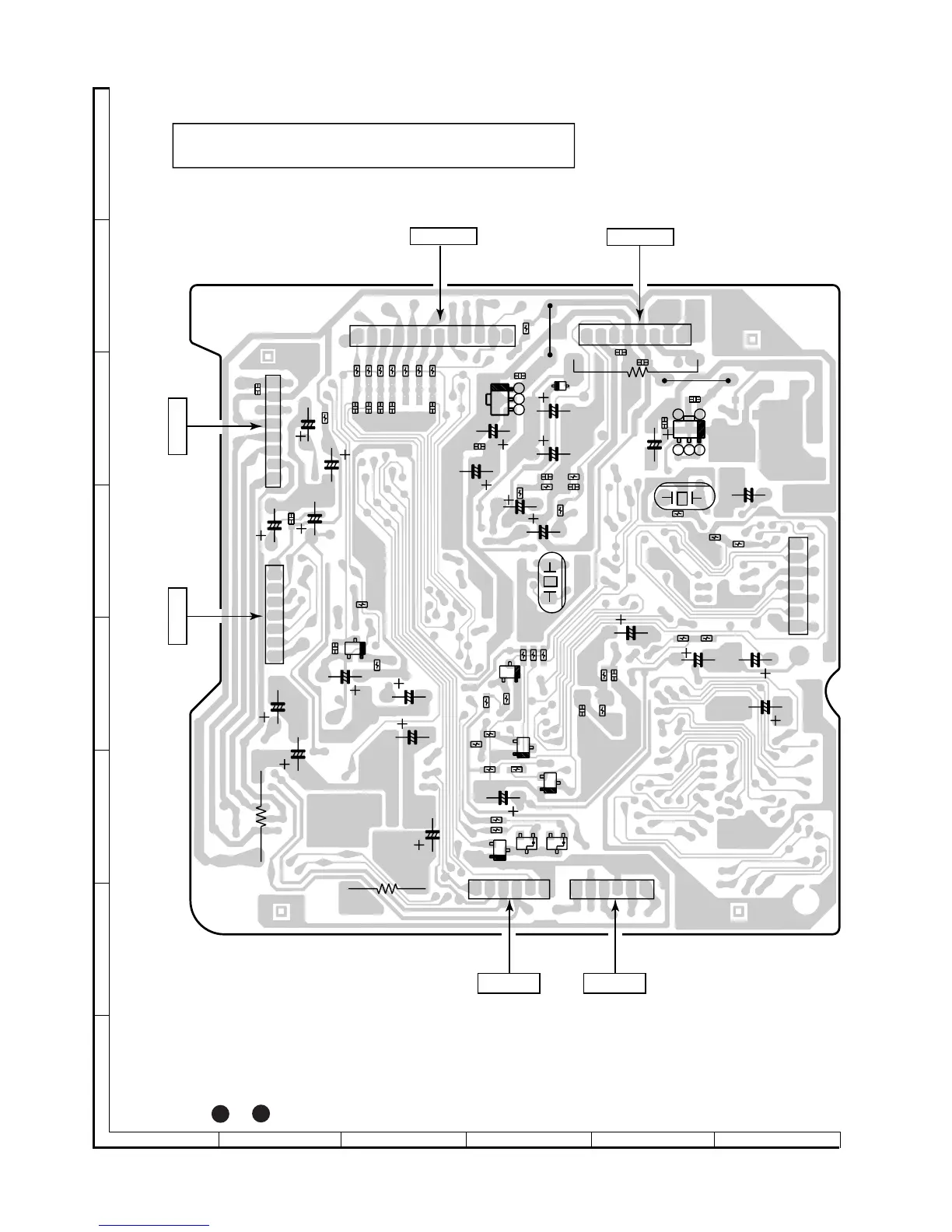

Figure 36 WIRING SIDE OF P.W.BOARD (5/8)
A
B
C
D
E
F
G
H
1
23456
• The numbers 1 to 12 are waveform numbers shown in page 41.
C4
Q1
R8
R84
R92
R98
R87
R54
R55
Q2
R96
R97
Q4
Q3
R90
D2
R86
R89
Q5
D1
C60
R80
R81
C64
R82
R70
R71
R99
C78
IC6
R75
C76
C80
C79
C24
R26
R24
ZD1
R25
C23
R23
C39
IC7
C38
C31
R46 R42 R44
C28
R43
C27
R41
C32
R47
R9
R45
C30
R7
C2
C36
C37
C20
C82
C77
R27
XL2
C50
CNP5
XL1
C21
C22
C18
C12
C1
CNP2
CNS2A
FROM
PICKUP UNIT
P39 7 - G
C11
C10
C42
C41
R57
C3
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
C43
C62
C65
C63
C72
CNP4
CNP3
CNS3A
FROM
CD MOTOR
PWB
P39 11 - F
6 5 4 3 2 1
6 5 4 3 2 1
C69
C44
R58
C34
CNP7
1 2 3 4 5 6 7 8 9
1 2 3 4 5 6 7 8
CNP6
CNS601
FROM
MAIN PWB
P32 5 - A
CNP1
7
6
5
4
3
2
1
1
10 11 12
R83
1
2
3
2
3
4
5
CNS1A
FROM
PICKUP UNIT
P39 7 - G
CNS3A
FROM
CD LOADING
MOTOR PWB
P39 7 - F
CNS701
FROM
DISPLAY PWB
P34 1 - D
CD SERVO PWB-C (TOP VIEW)
