Sharp CD-XP7700 - Page 12

CD-XP700/CD-XP7700
– 12 –

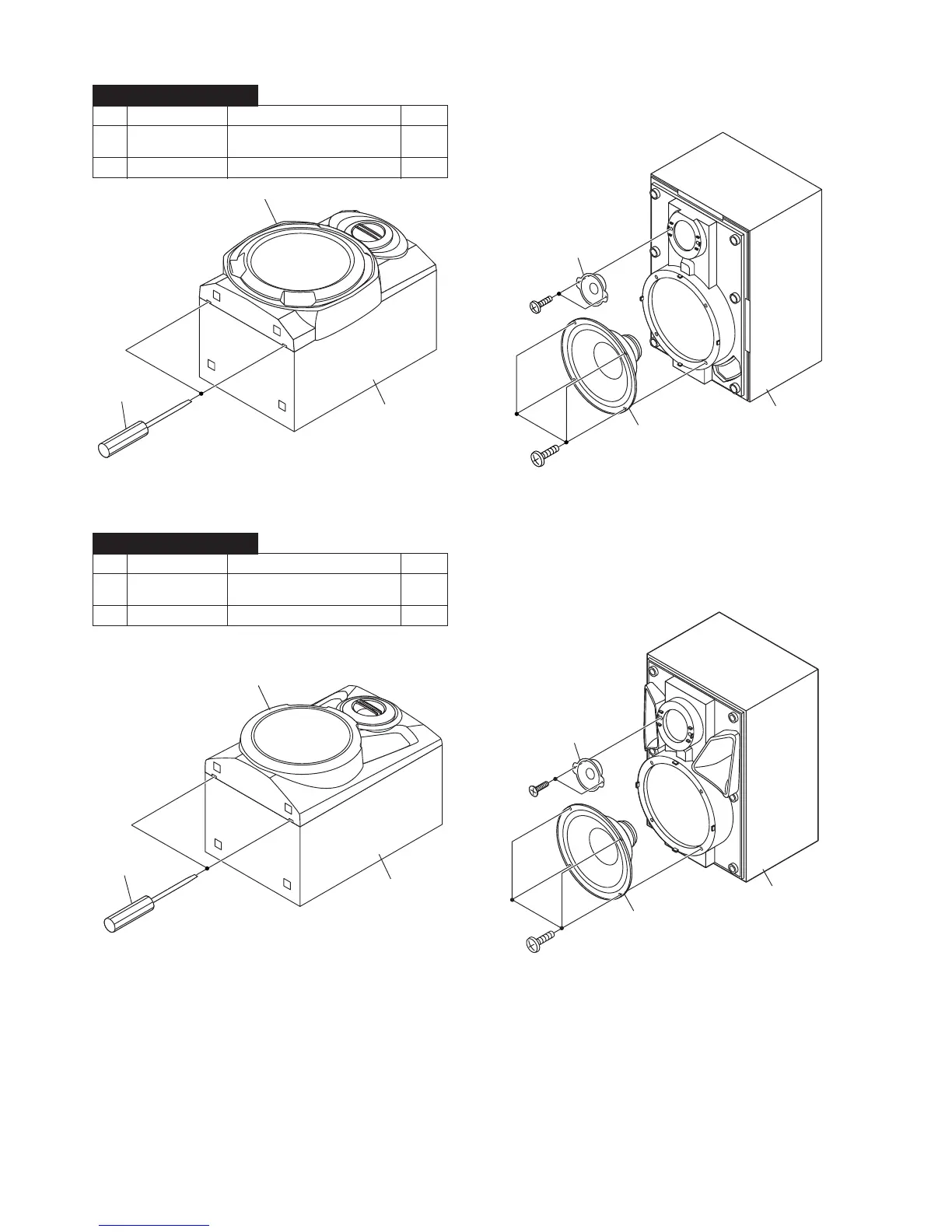

Figure 12-1 Figure 12-2
1 Woofer 1. Front Panel ............. (A1) x1 12-1
2. Screw ...................... (A2) x4 12-2
2 Tweeter 1. Screw ...................... (B1) x2 12-2
STEP
REMOVAL PROCEDURE FIGURE
CP-XP700
1 Woofer 1. Front Panel ............. (A1) x1 12-3
2. Screw ...................... (A2) x4 12-4
2 Tweeter 1. Screw ...................... (B1) x2 12-4
STEP REMOVAL
PROCEDURE
FIGURE
CP-XP7700
Screwdriver
Driver should
be pried away
from Speaker Box.
(A1)x1
Speaker Box
(A2)x4
ø4x12mm
(B1)x2
ø3x10mm
Speaker Box
Woofer
Tweeter
Figure 12-3
Figure 12-4
Screwdriver
Driver should
be pried away
from Speaker Box.
(A1)x1
Speaker Box
(A2)x4
ø4x12mm
(B1)x2
ø3x10mm
Speaker Box
Woofer
Tweeter
