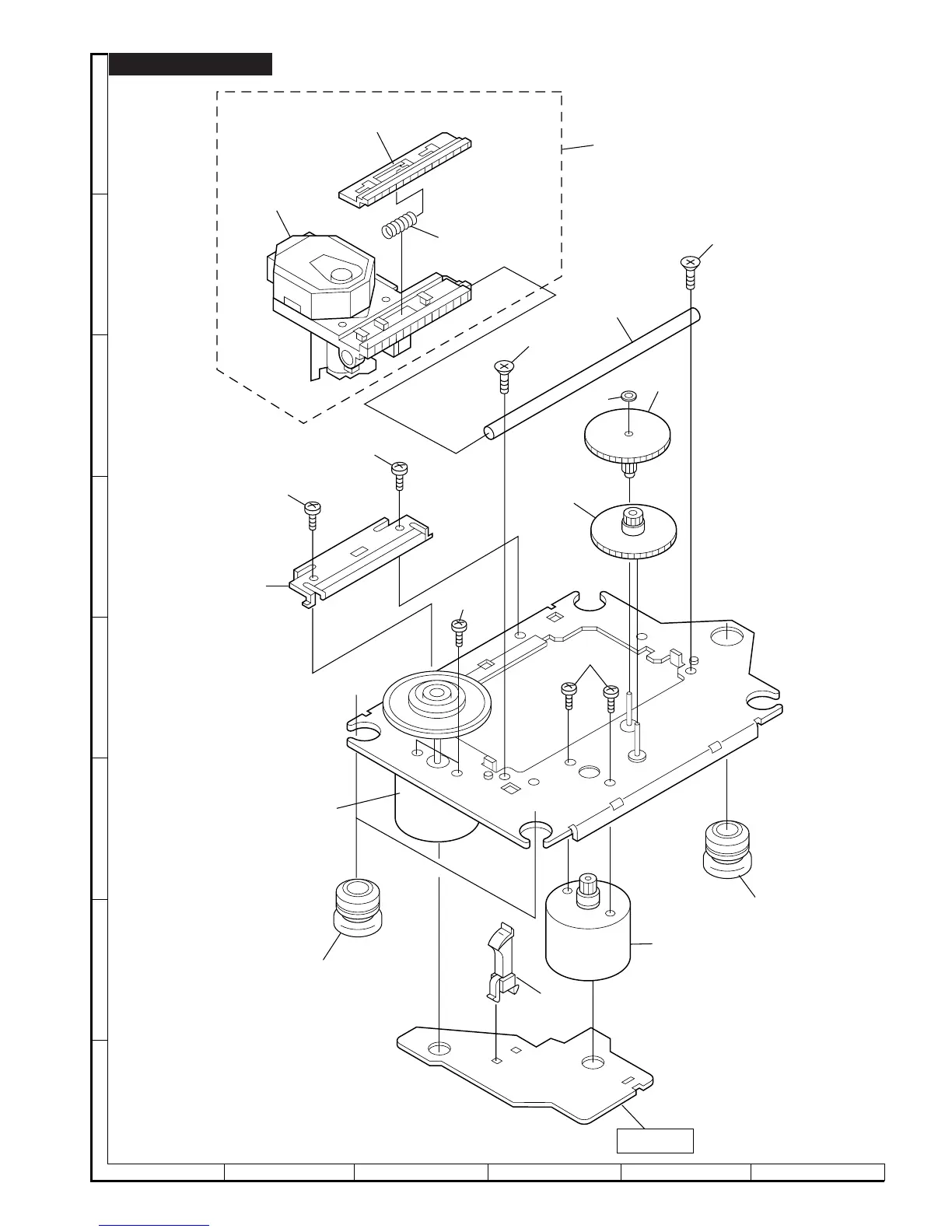

Figure 8 CD MECHANISM EXPLODED VIEW
– 8 –
CD-C622/C2900
306-1
701
304
701
302
301
702
702
303
M1
703x2
703x2
305x2
SW4
M2
305
PWB-C
306-2
306-3
306
704
