Re assembly
Sequence
9
10
11
12
13
14
All and more about Sharp PC-1500 at http :/l www.PC-1500.info
P arts Symbol
45
2·8
2·9
RE-2
2-6
41
SP 2.5 x 3
Wf 2.S
7.4
46
SP2x3
2-4
2·5

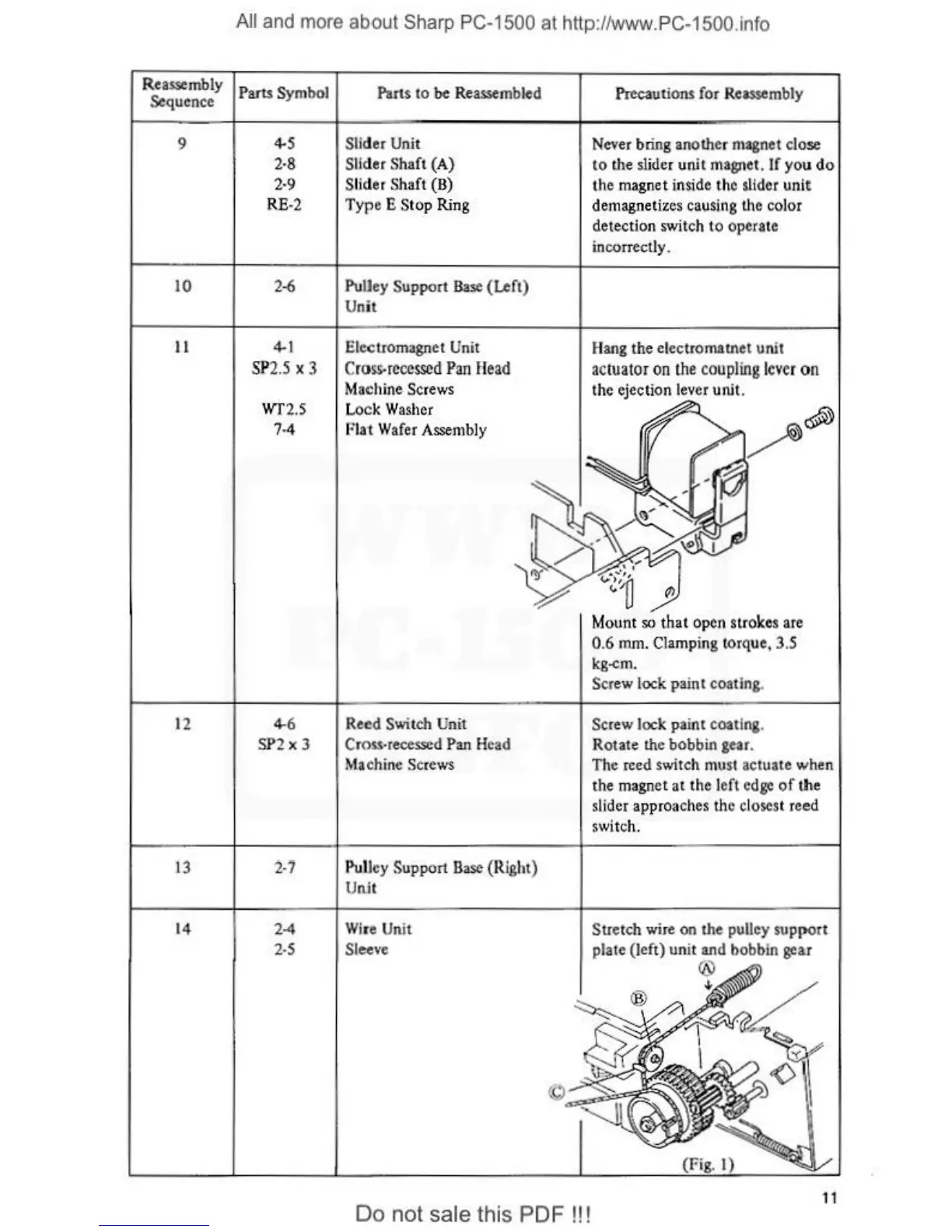

Parts to be Reassembled
Sli
der Unit
Sli der Shaf t (A)
S lid er Shaft (B)
Type E Stop Ring
Pulley Support Base (left)
Unit
Elec tr omagnet Unit
C ro ~s.r cccsscd Pan Head
Mac hine Screws
Lock Washer
Flat Wafer Assembly
Reed Switch Unit
Cross·recessed Pan Head
Machine Screws
Pulley
S upport Base (Right}
Uni t
Wire Unit
Sleeve
Do not sale this PDF !! !
Precautions for Reassembly
Never bring anoth er magnet clo se
to the slider unit magnet. If you do
the magnet inside the slider unit
demagnetizes causing th e c olor
detection switch to operate
incorrec
tly.
Hang the elec tromatnet unit
actuator on the coupling lev er on
the ejection lever unit.
~~
.~ •"'
--~~~ ~
Mount so that open strok es are
0 .6 mm. Clamping t or qu e, 3.S
kg<m.
Screw lock pa int coating.
Screw lock paint coat i ng .
Rotate the bobbin gear.
The reed switch must actuate when
the magnet at th e l eft edge of the
slider approaches th e closest reed
switch.
(Fig . I)
11
