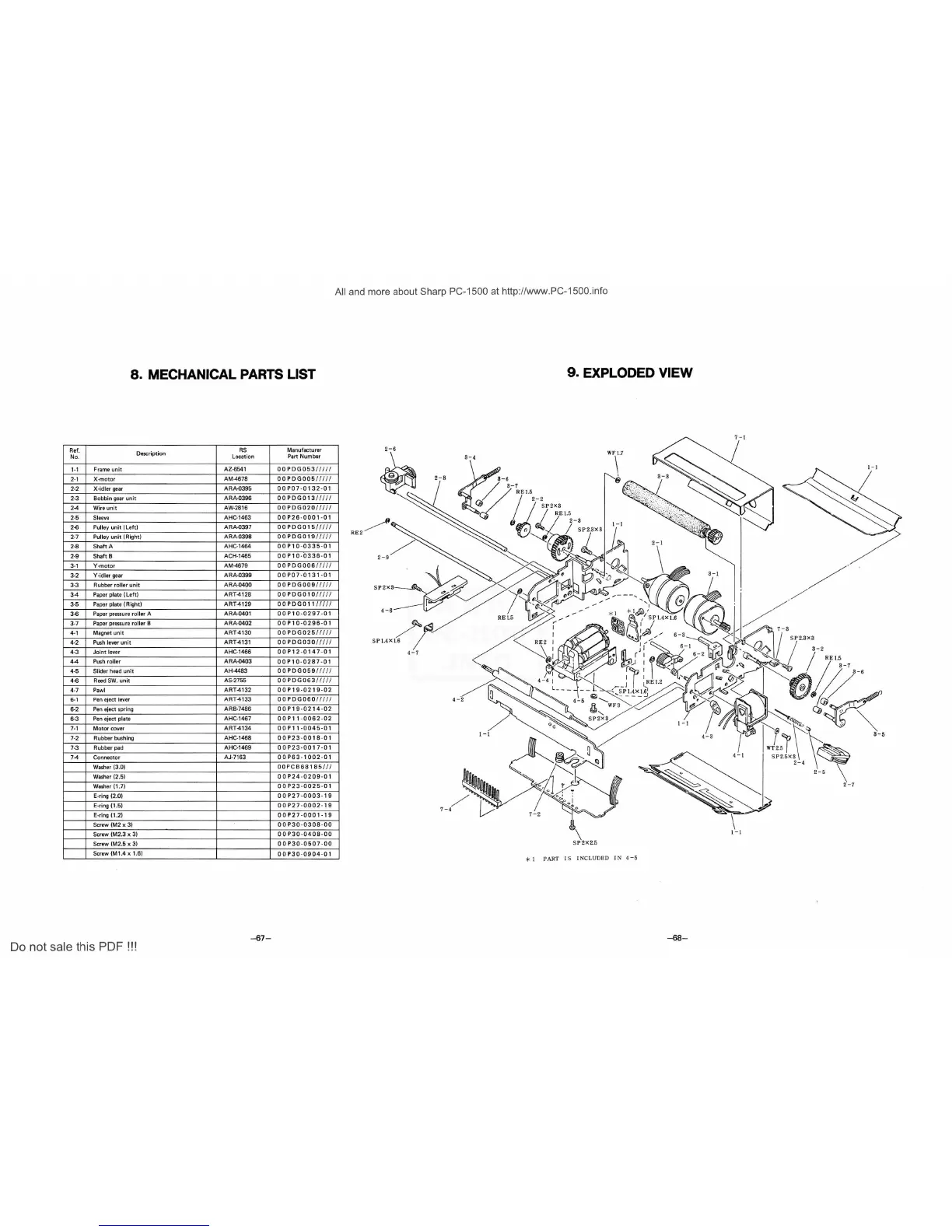

8. MECHANICAL PARTS LIST
Ref.
Description
RS Manufacturer
No.
Location
Part Number
1
-1 Frame unit
AZ-6541 OOPDG053 /////
2-1 X-motor
AM-4678
OOPDG005 /////
2-2
X-idler gear ARA-0395
00 P07 - 0132-0 1
2-3
Bobbin
gear unit ARA-0396 OOPDG0 13 //// /
2
-4 Wire unit
AW-2816
00 PDG020/////
2-5
Sleeve
AHC-1463
OOP26 - 0001-01
2-6
Pulley
unit (Left) ARA-0397 OOPDG0 15/////
2-7 Pulley unit (Right)
ARA -0398 OOPDG0 1 9/////
2-8
Shaft A AHC-1464
00p10 - 0335 - 01
2-9 Shaft B
ACH-1465
00p10 - 0336-01
3-1
Y-motor
AM-4679
OOPDG006 /////
3-2
Y-idler gear ARA-0399
OOP07 - 0131-01
3-3
Rubber
roller unit ARA-0400 OOPDG009/////
3-4
Paper plate (Left) ART-4128 OOPDG010/////
3-5 Paper plate (Right)
ART-4129
OOPDG0 11/////
3-6
Paper pressure roller A
ARA-0401 OOP10 - 0297-01
3-7 Paper pressure roller B
ARA-0402 00p10-0296-01
4-1 Magnet unit
ART-4130 OOPDG025/////
4 -2 P ush lever unit
AR T-41 31 OOPDG030 /////
4-3 Joint l ever
AHC-1466 OOP12-0147-01
4-4 Push roller
ARA-0403
OOPl0 - 0287-0 1
4-5 Slider head unit
AH-4483 OOPDG059/////
4-6 Reed SW. unit
AS-2755 OOPDG063/////
4-7 Pawl
ART-4132 OOP19-0219-02
6-1
Pen eject l ever
ART-4133 . OOPDG060/////
6-2
Pen eject spring
ARB-7486
OOP19 - 0214-02
6-3
Pen eject plate AHC-1467
OOP l 1-
0062-02
7-1 Motor cover
AR T -4134 OO Pl 1 -0045-0 1
7-2 Rubber
bu shing
AH C- 14 68 OOP23 - 0018-01
7-3
Rubber pad
AHC-1469
OOP23-0017-01
7-4 Connector
AJ-7163
00P63·1002-01
Washer (3.0)
OOPCB68185///
Washer (2 . 5) OOP24-0209-0 1
Washer (1.7) 00 P23-0025-01
E-ring (2. 0) OOP27-0003- 19
E-ri ng (1.5)
OOP27 - 0002-19
E- ring ( 1.2)
OOP27 - 0001-19
Sc r ew (M2 x 3)
0 0 P30 - 0308-00
Screw (M2.3 x 3)
0 0 P30 - 0408-00
Screw (M2.5 x 3)
0 0 P30 - 0507-00
Screw (M 1.4 x 1.6)
00P30-0904 -01
-67-
Do not sale this PDF !!!
All and more about Sharp PC-1500 at http://www .P C -1 500.info
M
RE2 ~
2-9
3-4
/
9. EXPLODED VIEW
WFl.7
\
@
~\
SP 2X2.5
* 1 PART IS INCLUDED IN 4- 5
