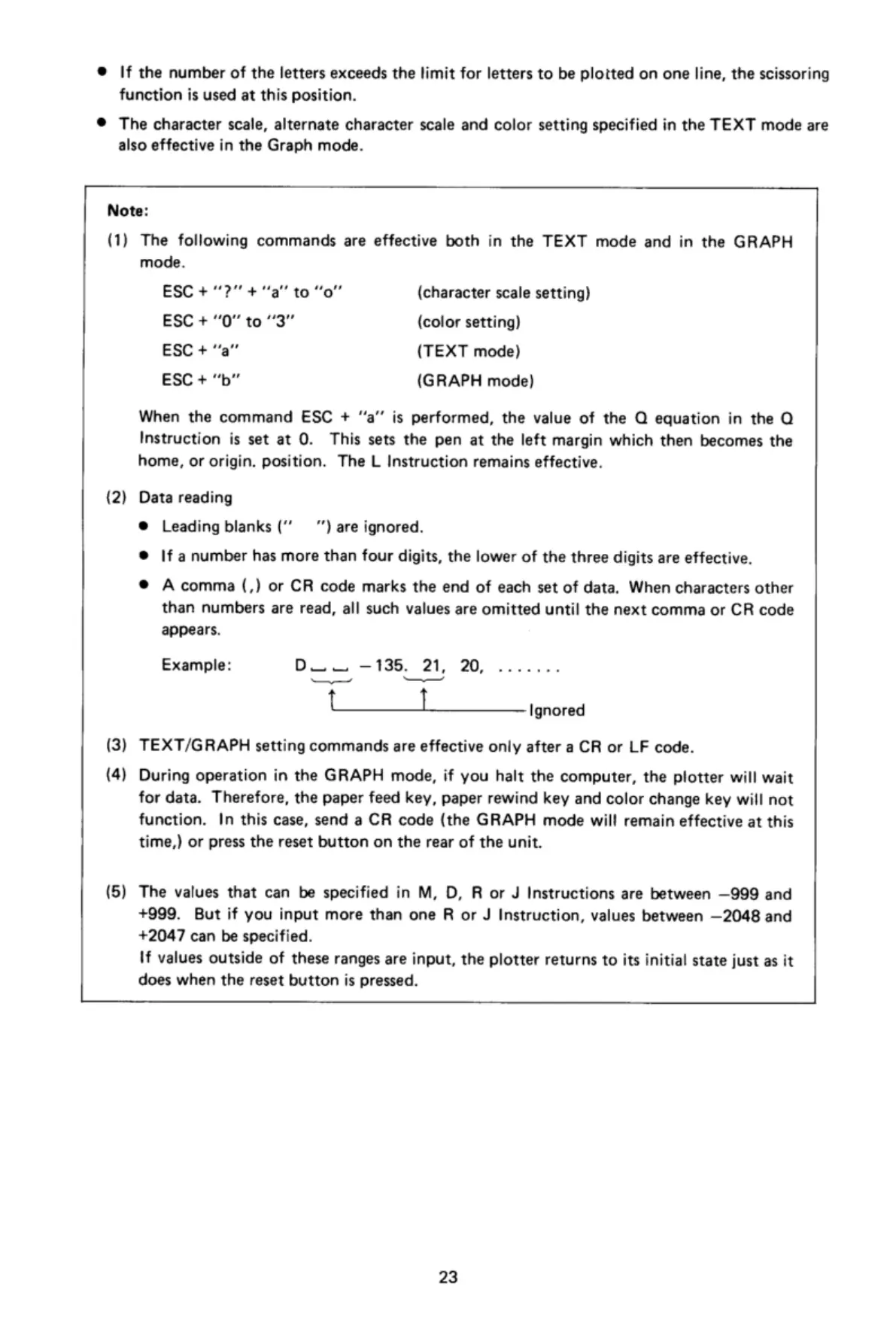

® |f the number of the letters exceeds the limit for letters to be plotted on one line, the scissoring
function is used at this position.
® The character scale, alternate character scale and color setting specified in the TEXT mode are
also effective in the Graph mode.
Note:
(1) The following commands are effective both in the TEXT mode and in the GRAPH
mode.
ESC+ “?"” +"a"” to "“o” (character scale setting)
ESC + 0" to ‘3" (color setting)
ESC + “a” (TEXT mode)
ESC + "“b” (GRAPH mode)
When the command ESC + ““a’’ is performed, the value of the Q equation in the Q
Instruction is set at 0. This sets the pen at the left margin which then becomes the
home, or origin. position. The L Instruction remains effective.
(2) Data reading
® | eading blanks (** ') are ignored.
®
|f
a
number
has
more
than
four
digits,
the
lower
of
the
three
digits
are
effective.
® A comma (,) or CR code marks the end of each set of data. When characters other
than numbers are read, all such values are omitted until the next comma or CR code
appears.
Example: D —1356. 21, 20, .......
{ 1
(3) TEXT/GRAPH setting commands are effective only after a CR or LF code.
Ignored
(4)
During
operation
in
the
GRAPH
mode,
if
you
halt
the
computer,
the
plotter
will
wait
for
data.
Therefore,
the
paper
feed
key,
paper
rewind
key
and
color
change
key
will
not
function.
In
this
case,
send
a CR
code
(the
GRAPH
mode
will
remain
effective
at
this
time,}
or
press
the
reset
button
on
the
rear
of
the
unit.
(5) The values that can be specified in M, D, R or J Instructions are between —999 and
+999. But if you input more than one R or J Instruction, values between —2048 and
+2047 can be specified.
If
values
outside
of
these
ranges
are
input,
the
plotter
returns
to
its
initial
state
just
as
it
does when the reset button is pressed.
