Sharp CE-515P User Manual

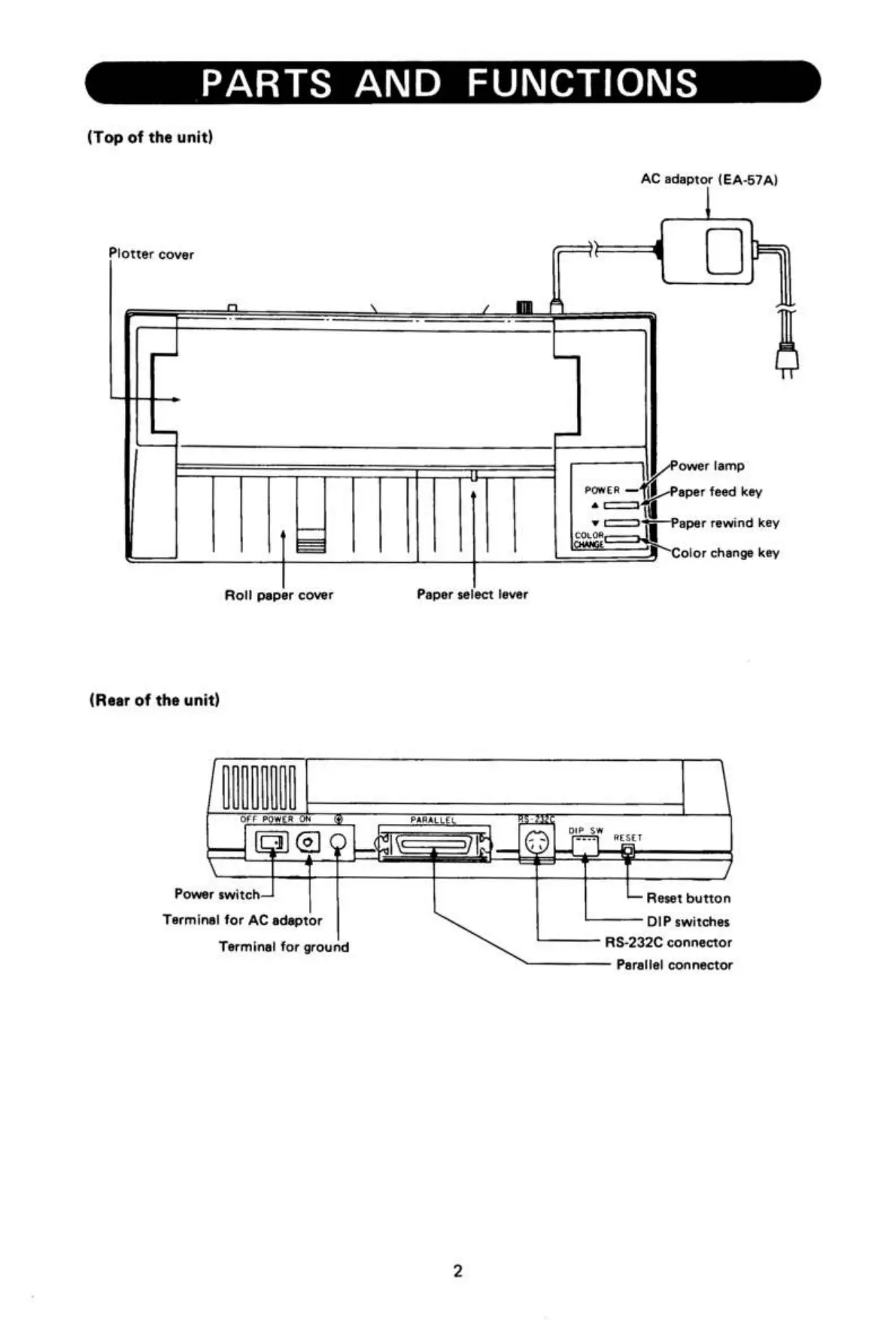

PARTS AND FUNCTIONS
(Top of the unit)
AC adaptor (EA-57A)
Plotter cover i
Power lamp
POWER == ' Paper feed key
a—2g
v— ) Paper rewind key
COLOR
T -
i
Roll paper cover Paper select lever
Color change key
(Rear of the unit)
NI
OFF POWER ON ___ ® PARALLEL S-23¢
Sf—— A DIP SW Lo cer
Co] ~d S e Y
Power switch— L— Reset button
Terminal for AC adaptor — DIP switches
Terminal for ground RS-232C connector
Parallel connector

Sharp CE-515P Specifications

General

Brand	Sharp
Model	CE-515P
Category	Printer
Language	English
