Sharp CE-515P User Manual

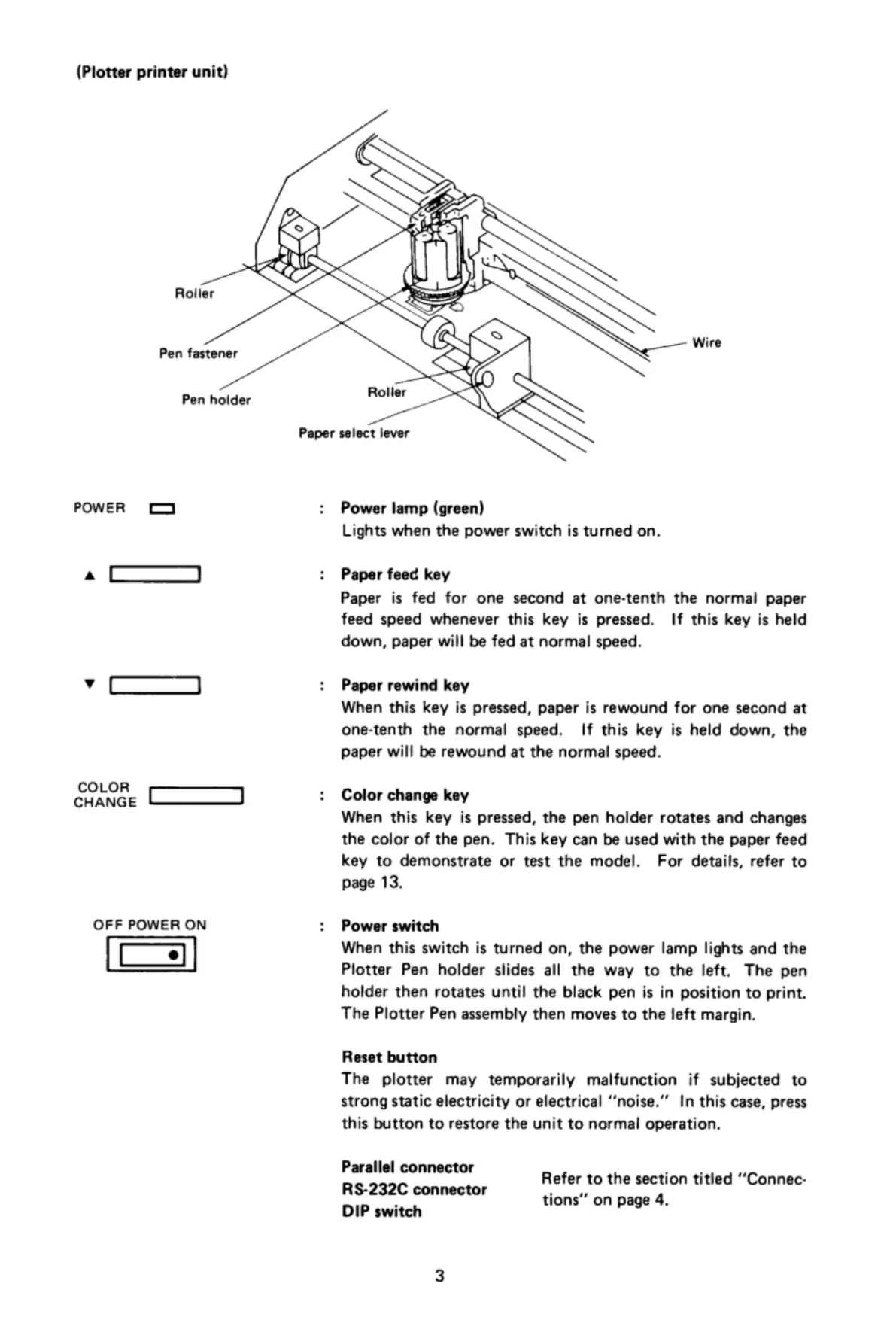

(Plotter printer unit)
Roller
Pen fastener
Pen holder
POWER [
A
]
COLOR
CHANGE
OFF POWER ON
e
Paper select lever
Power lamp (green)
Lights when the power switch is turned on,
Paper feed key
Paper is fed for one second at one-tenth the normal paper
feed speed whenever this key is pressed. If this key is held
down, paper will be fed at normal speed.
Paper rewind key
When this key is pressed, paper is rewound for one second at
one-tenth the normal speed. If this key is held down, the
paper will be rewound at the normal speed.
Color change key
When this key is pressed, the pen holder rotates and changes
the color of the pen. This key can be used with the paper feed
key to demonstrate or test the model. For details, refer to
page 13.
Power switch
When this switch is turned on, the power lamp lights and the
Plotter Pen holder slides all the way to the left. The pen
holder then rotates until the black pen is in position to print.
The Plotter Pen assembly then moves to the left margin.
Reset button
The plotter may temporarily malfunction if subjected to
strong static electricity or electrical ‘‘noise.” In this case, press
this button to restore the unit to normal operation.
Parallel connector
RS-232C connector
DIP switch
Refer to the section titied ““Connec-
tions’’ on page 4,
