Sharp CK32S4 - Printed Wiring Board Assemblies

32K-S400, CK32S40
36K-S400, CK36S40
32K-S400, CK32S40
36K-S400, CK36S40
H
G
F
E
D
C
B
A
123456789101112

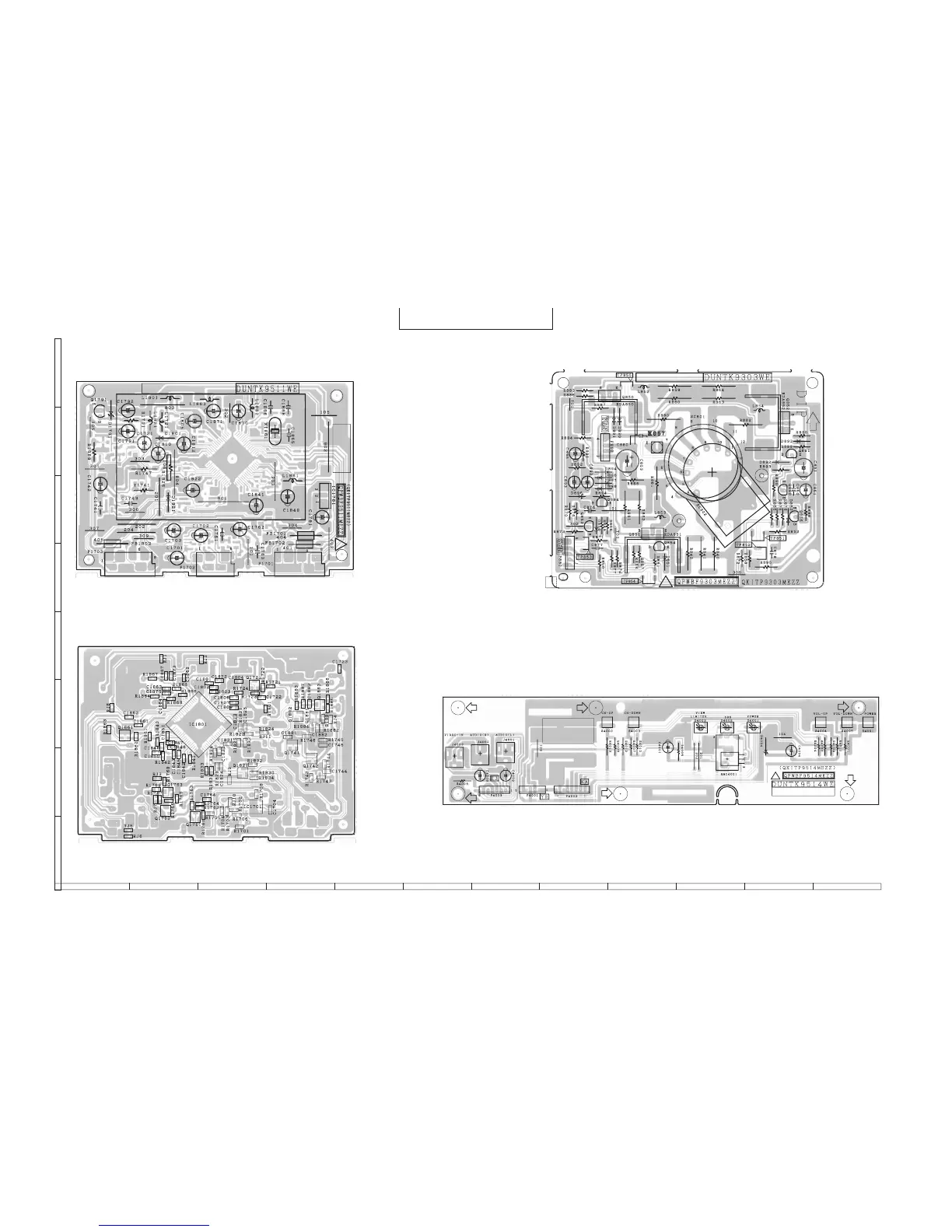

PRINTED WIRING BOARD ASSEMBLIES
27 28
PWB-R: P-IN-P Unit (Wiring Side)
PWB-R: P-IN-P Unit (Chip Parts Side)
PWB-F: CONTROL Unit (Wiring Side)
PWB-B: CRT Unit (Wiring Side)
