Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
50
27N-S100, 27N-S180
CN27S10/14/18
SUPPLIED ACCESORRIES
TiNS-6930MEZZ M Operation Manual AD
(27N-S100/180)
TiNS-6935MEN1 M Operation Manual AD
(CN27S10/14/18)
RRMCG1324CESA M Infrared R/C Unit AQ
(27N-S100, CN27S10)
RRMCG1395CESA M Infrared R/C Unit AW
(27N-S180, CN27S14/18)
SPAKC0658MEZZ – Packing Case (27N-S100/180) —
SPAKC0662MEZZ – Packing Case (CN27S10/14/18) —
SPAKX0165MEZZ – Buffer Material —
SSAKA0004MEZZ – Polyethylene Bag —
SPAKP0032MEZZ – Polyethylene Sheet —
PACKING PARTS
(NOT REPLACEMENT ITEM)
CABINET PARTS
27N-S100, CN27S10/14
1 CCABA1325MES0 M Front Cabinet Ass'y BF
1-1 Not Available – Front Cabinet —
1-2 GCOVA1033MEKA M Cover for R/C AD
1-3 HBDGB1009MESA M Badge, "SHARP" AD
1-4 JBTN-1096MEKA M Button, Power, Vol-up/down AD
1-5 JBTN-1097MEKA M Button, Ch-up/down AD
2 GCABB1157MEKA M Rear Cabinet (27N-S100) AY
2 GCABB1148MEKA M Rear Cabinet (CN27S10/14) AZ
27N-S180, CN27S18
1 CCABA1325MES0 M Front Cabinet Ass'y BF
1-1 Not Available – Front Cabinet —
1-2 GCOVA1033MEKA M Cover for R/C AD
1-3 HBDGB1009MESA M Badge, "SHARP" AD
1-4 JBTN-1096MEKA M Button, Power, Vol-up/down AD
1-5 JBTN-1097MEKA M Button, Ch-up/down AD
2 GCABB1158MEKA M Rear Cabinet AY
å ACC701 QACCD3065CESA M AC Cord AG
QCNW-0130MEZZ M Connecting Cord AF
QCNW-0134MEZZ M Connecting Cord AE
QCNW-0166MEZZ M Connecting Cord AD
QCNW-0167MEZZ M Connecting Cord AC
QCNW-0252MEZZ M Connecting Cord AH
SP1 VSP0080PBL4YS M Speaker, (L) AG
or
VSP0080PBK9YA
SP2 VSP0080PBL4YS M Speaker, (R) AG
or
VSP0080PBK9YA
MISCELLANEOUS PARTS
1
1-1
2
1-4 1-3 1-2 1-5
PWB-H: DUNTK9310WEK1
FRONT AV UNIT
MISCELLANEOUS PARTS
J1001 QJAKE0053GEZZ J Jack, Video in AD
J1002 QJAKE0055GEZZ J Jack, Audio in (L) AD
J1003 QJAKE0059GEZZ J Jack, Audio in (R) AC
P1001 QPLGN0541CEZZ J Plug, 5-pin (HA) AB

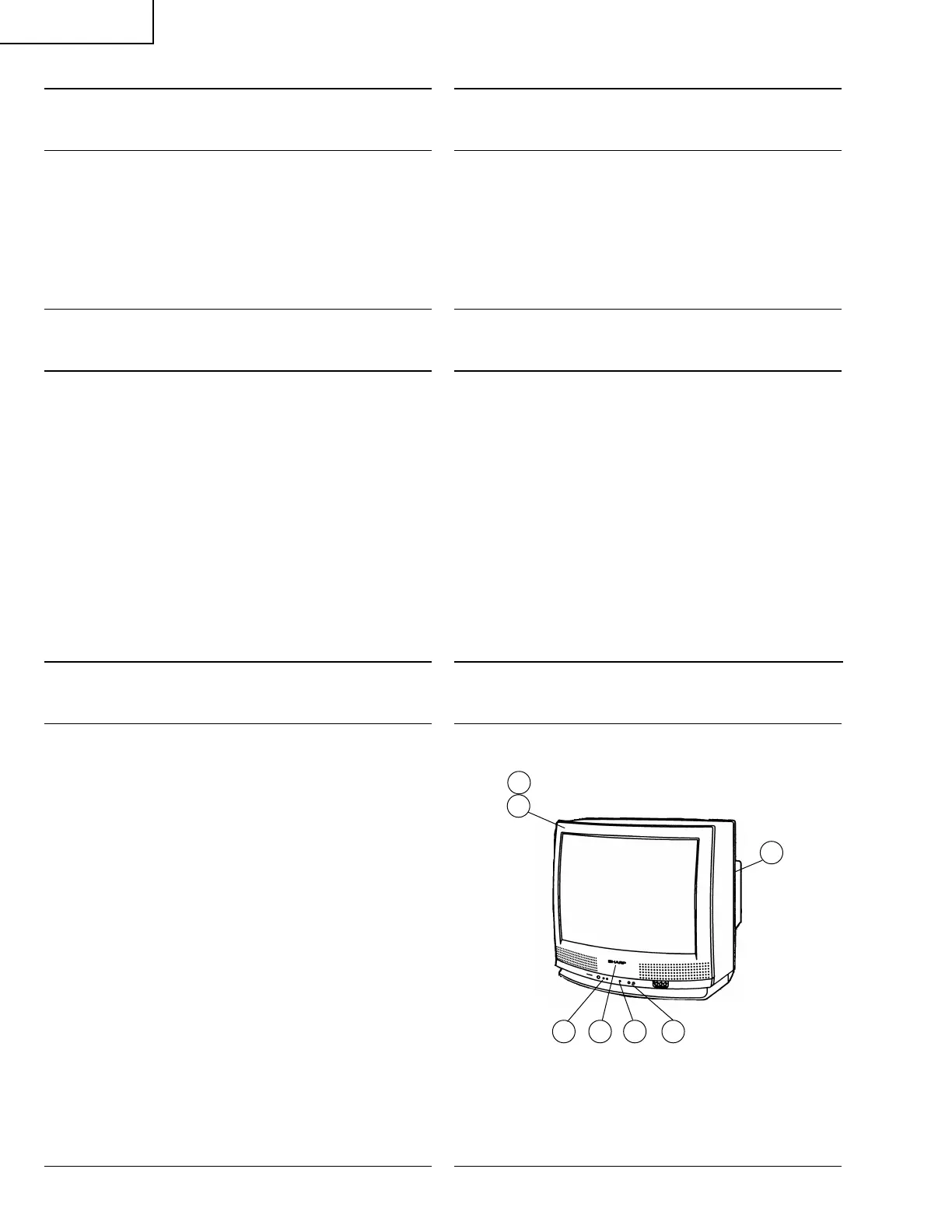

CABINET PARTS LOCATION
