DW-R249A_eng
When operation stops, the WIDE SWING louver returns to "Close" position. Note that in stopped
condition, the humidity is not indicated.
* If the POWER ON/OFF button is pressed to restart the unit after a stop, the unit resumes
operation in the previous selected mode.
Stop
Press the POWER ON/OFF button again.
Press the POWER ON/OFF button.
Press the CONTINUOUS DEHUMIDIFY button.
The OPERATION indicator lights and AUTO DEHUMIDIFY operation starts.
The "Low" air flow indicator for CONTINUOUS DEHUMIDIFY lights, and the unit starts
CONTINUOUS DEHUMIDIFY operation at "Low" air flow.
With the start of operation, the WIDE SWING louver rotates from "Close" to "Up" and stops in that position.
Set the direction of the WIDE SWING louver.
Choose the optimum setting.

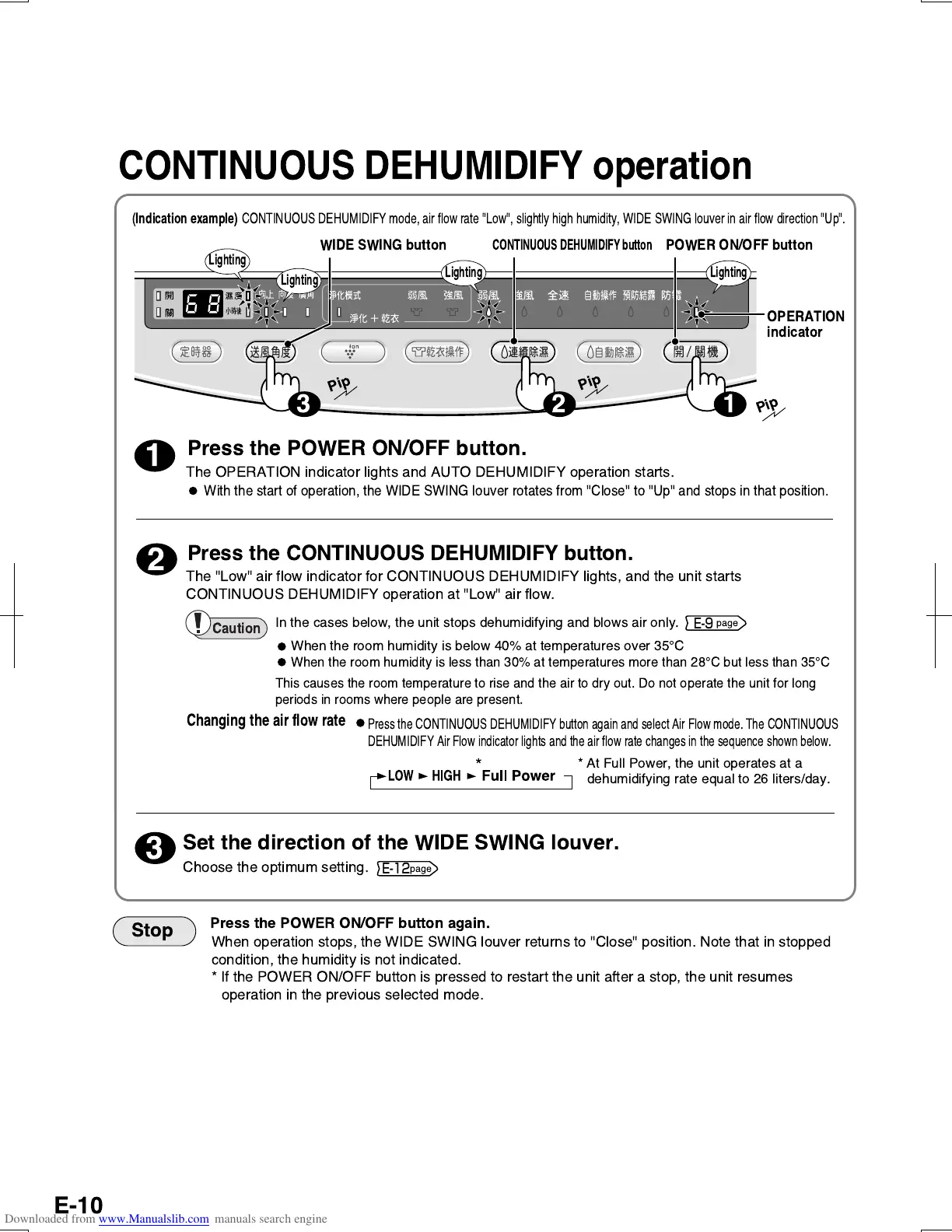

(Indication example)
CONTINUOUS DEHUMIDIFY mode, air flow rate "Low", slightly high humidity, WIDE SWING louver in air flow direction "Up".
Changing the air flow rate
Press the CONTINUOUS DEHUMIDIFY button again and select Air Flow mode. The CONTINUOUS
DEHUMIDIFY Air Flow indicator lights and the air flow rate changes in the sequence shown below.
WIDE SWING button
CONTINUOUS DEHUMIDIFY button
POWER ON/OFF button
OPERATION
indicator
Pip
Pip
Pip
E-10
CONTINUOUS DEHUMIDIFY operation
Lighting
Lighting
Caution
In the cases below, the unit stops dehumidifying and blows air only.
When the room humidity is below 40% at temperatures over 35¡C
When the room humidity is less than 30% at temperatures more than 28¡C but less than 35¡C
* At Full Power, the unit operates at a
dehumidifying rate equal to 26 liters/day.
*
This causes the room temperature to rise and the air to dry out. Do not operate the unit for long
periods in rooms where people are present.
E-12
page
E-9
page
1
2
3
3
Lighting
Lighting
2 1
To Next Page
