OPERATION indicator
DRY CLOTHES button
PLASMACLUSTER ION indicator
TIMER SETTING button
TIMER OFF indicator
TIMER ON indicator
AUTO indicator
PREVENT CONDENSATION
indicator
MOLD ATTACK indicator
AUTO DEHUMIDIFY
(HUMIDITY/TIMER SETTING indicator)
Sets ON/OFF TIMER.
Turns the dehumidifier on/off.
Changes over between AUTO (DEHUMIDIFY) /
PREVENT CONDENSION / MOLD ATTACK.
Press to select CONTINUOUS DEHUMIDIFY
operation and the desired air flow rate.
Changes the air flow direction.
Turns PLASMACLUSTER ION operation on/off.
Starts drying clothes.
LED Display
HUMIDITY indicator
TIMER SETTING indicator
WIDE SWING button
AUTO DEHUMIDIFY button
CONTINUOUS DEHUMIDIFY button
UP/REAR/WIDE Air Flow indicator
CONTINUOUS DEHUMIDIFY
air flow indicator
DRY CLOTHES air flow indicator

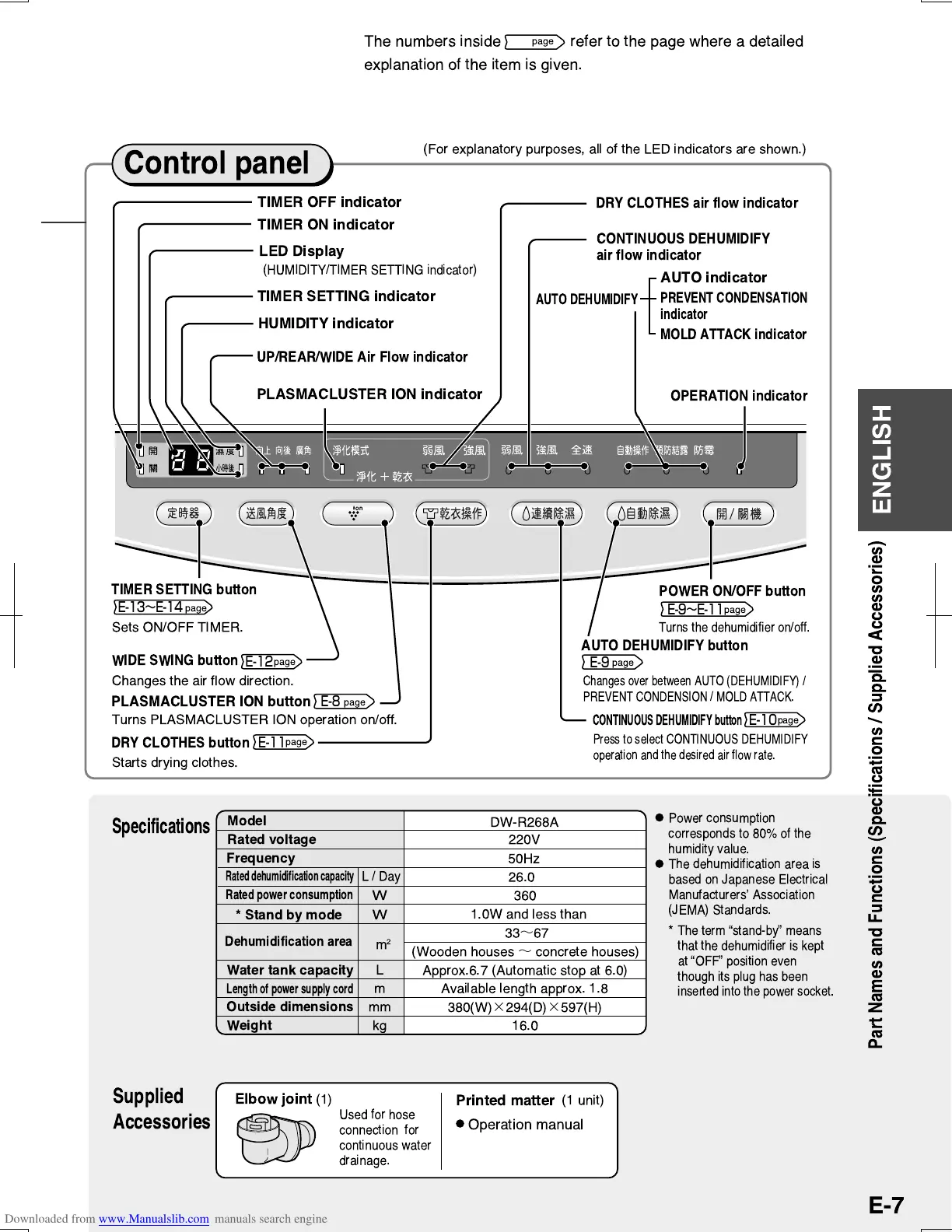

Control panel
Power consumption
corresponds to 80% of the
humidity value.
The dehumidification area is
based on Japanese Electrical
ManufacturersÕ Association
(JEMA) Standards.
*
The term Òstand-byÓ means
that the dehumidifier is kept
at ÒOFFÓ position even
though its plug has been
inserted into the power socket.
E-7
POWER ON/OFF button
Specifications
(For explanatory purposes, all of the LED indicators are shown.)
Elbow joint
Printed matter
(1 unit)
Operation manual
Used for hose
connection for
continuous water
drainage.
(1)
Supplied
Accessories
PLASMACLUSTER ION button
E-13〜E-14
page
E-9〜E-11
page
page
E-12
page
E-10
page
E-11
page
E-8
page
E-9
page
The numbers inside refer to the page where a detailed
explanation of the item is given.
Rated voltage
Model
Water tank capacity
Length of power supply cord
Outside dimensions
Weight
L
m
mm
kg
50Hz
220V
DW-R268A
360
33
〜
67
Approx.6.7 (Automatic stop at 6.0)
(Wooden houses
〜
concrete houses)
16.0
380(W)
×
294(D)
×
597(H)
Available length approx. 1.8
Frequency
* Stand by mode
W
W
m
2
Dehumidification area
1.0W and less than
Rated dehumidification capacity
Rated power consumption
L / Day
26.0
Part Names and Functions (Specifications / Supplied Accessories)
ENGLISH
