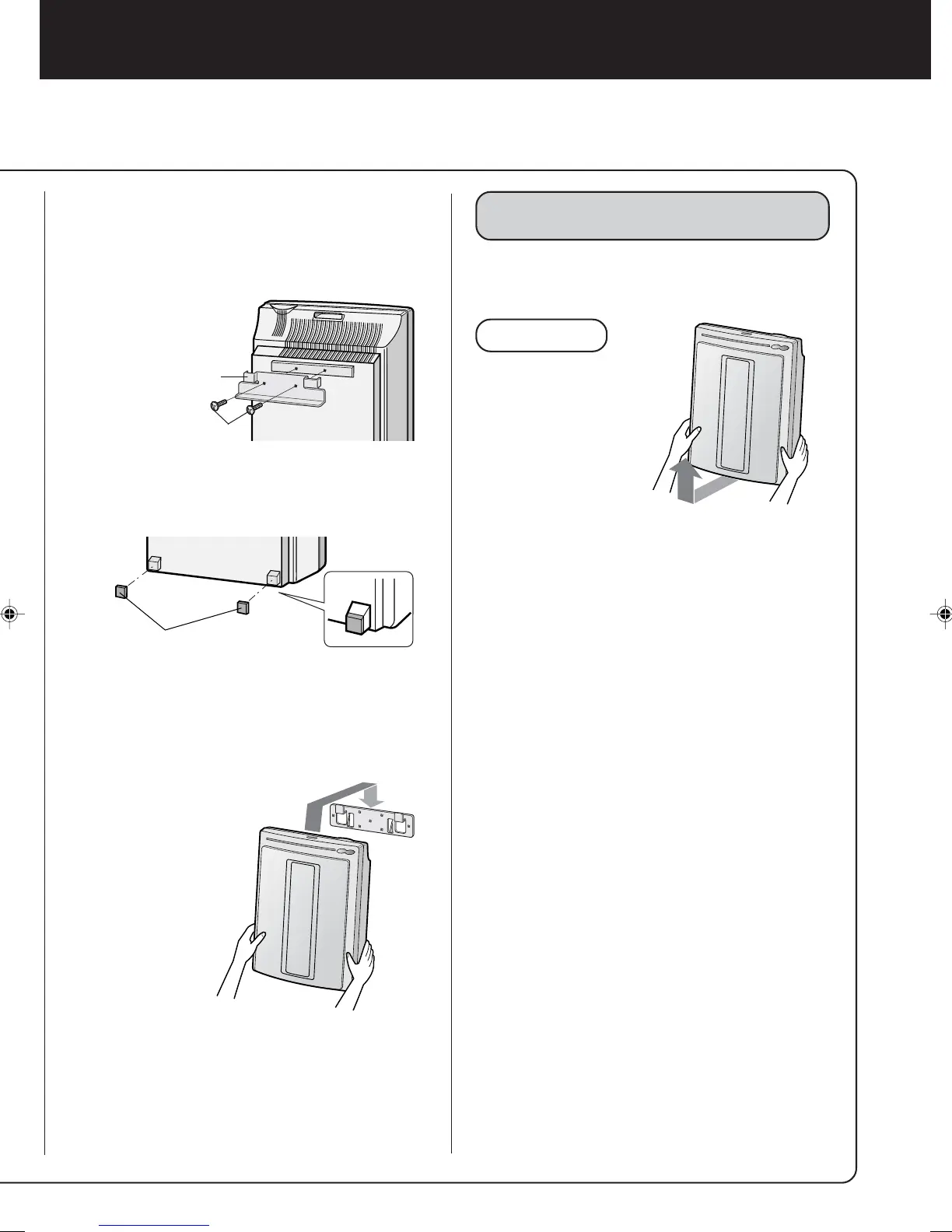

Mount the bracket to the back of the main unit
using the small screws included.
3
Place the cushions as shown
4
Mount the main unit
(1) Align the horizontal positions of mounting
brackets 1 and 2 and hook the bracket 2 to
bracket 1.
(2) Hold the bottom
of the main unit,
pull the unit to-
wards you and
then pull down.
5
Check the installation
Check to make sure that the tabs on mount-
ing bracket 2 are securely mounted to the
tabs on mounting bracket 1.
Check that the power cord is not pinched.
REMOVING THE UNIT
Pull the bottom of the unit towards you and then
lift.
NOTES
When removing
the unit disconnect
the power cord.
Cushions (2 units)
E-7
2
Mount mounting bracket 2 to the
main unit
Mounting bracket 2
Small screws
(2 units)
