Audio connections to TVs, DVD players, VCRs, etc.
 Other connection (without HDMI)

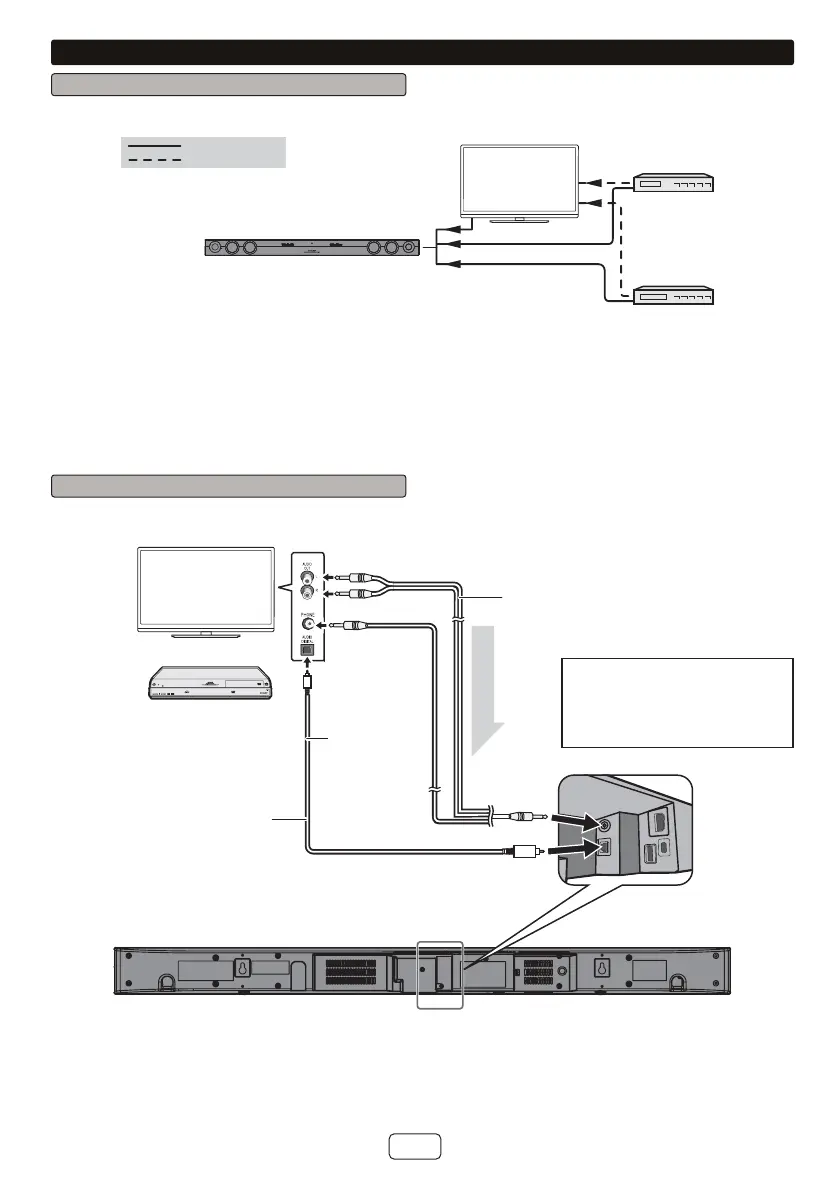

The illustration below shows the flows of audio and video signals.
DVD/Blu-ray
Disc Player
Digital tuner, etc.
TV
Audio signal
Video signal
Notes:
z Refer to the operation manual of the equipment to be connected.
z Fully insert the plugs to avoid fuzzy pictures or noises.
z Connecting via this method may disable TV internal speakers.
z In some cases, a small background noise could emit from the sound bar, when you use the RCA audio output
terminal connection from a TV-Set/DVD/Blu-ray Disc Player. In such case, please change the connection to the
HDMI/ARC or headphone terminal connection. This effect depends on the used TV/DVD/Blu-ray Disc Player-
Brand, model and age, and it is not a quality matter from the sound bar.
 Connecting a TV, or DVD player, etc.
Connect to the TV using an optical digital cable or an audio cable.
To audio output terminals
Sound Bar
TV
or
Audio cable (commercially
available)
To AUDIO
IN input
terminals
To OPTICAL IN
(optical) input terminal
Blu-Ray/
DVD player/Digital
Tuner
Optical digital
audio cable
(commercially
available)
To
HEADPHONE
terminal
To optical
digital audio
output
terminal
Audio signal
To select OPTICAL function:
Press the INPUT button repeatedly on the sound bar or remote control to select “OPTICAL”.
To select AUDIO IN function:
Press the INPUT button repeatedly on the sound bar or remote control to select “AUDIO IN”.
Note:
Make sure that the audio cable
end with ferrite core is connected
to the sound bar AUDIO IN
terminal.
