HT-SB40
Installation image:
Place the system as shown.
Remove the protective film covering the sound bar and
subwoofer before turning on the system.
Notes:
● The front panel of the sound bar is not removable.
● The transmission distance of the wireless signal between
the subwoofer and sound bar is about 32 feet (10 m), but
may vary depending on your operating environment. If a
steel-concrete or metallic wall is between the subwoofer
and the sound bar, the system may not operate at all,
because the wireless signal cannot penetrate metal.
Caution:
● Do not change the installation direction when the sound
bar
is turned on.
● Do not stand or sit on the sound bar and subwoofer as
you may be injured.
Caution
● Do not allow any objects to fall into or to be placed in the bass reflex duct.
● Do not stand or sit on the sound bar/subwoofer. You may be injured.

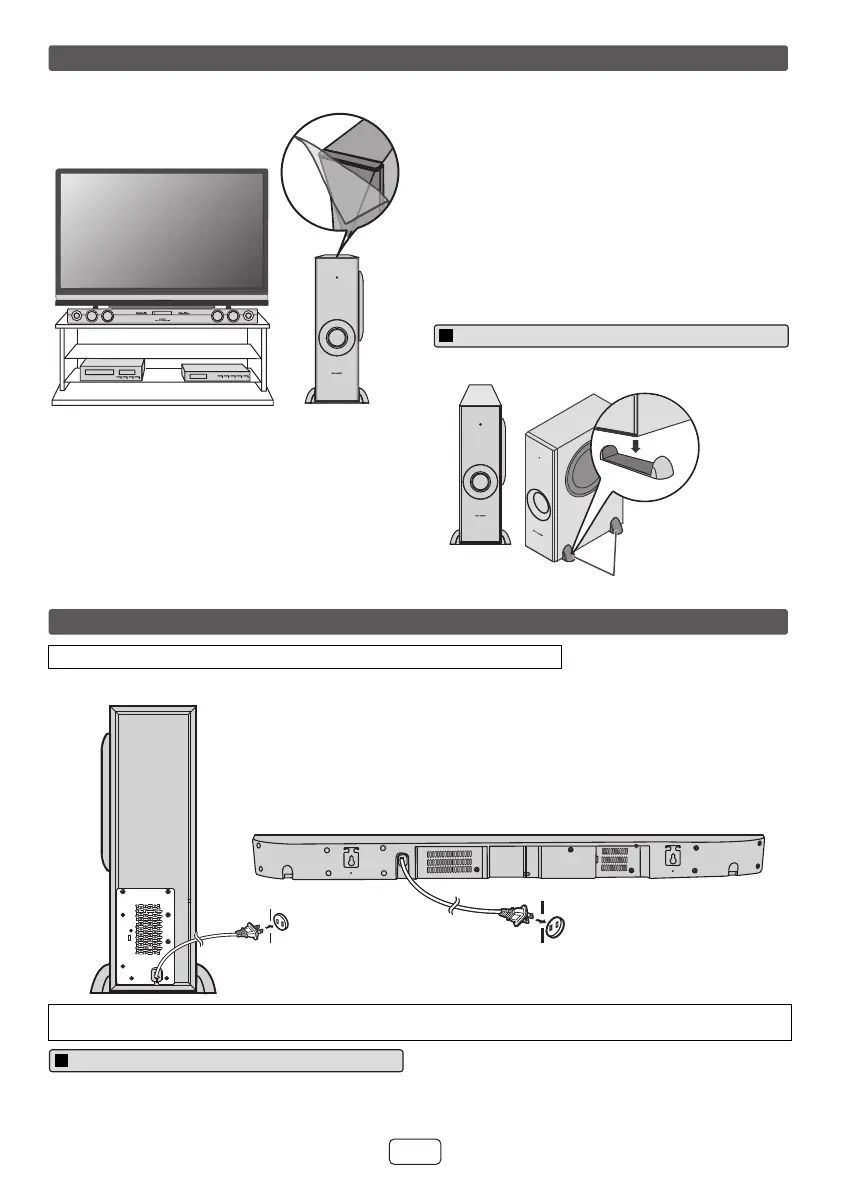

Placing the system
TV
VCR
DVD player
Subwoofer
Sound Bar
Place the stand as shown.
Placing the stand
Stand
Make sure to unplug the AC power cord before making any connections.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
System connections
AC INPUT
PAIRING
Subwoofer
Sound Bar
AC outlet
AC 120 V ~ 60 Hz
AC outlet
AC 120 V ~ 60 Hz
Sound bar and Subwoofer connection
