E-8
2012 November 28
HT-SB60

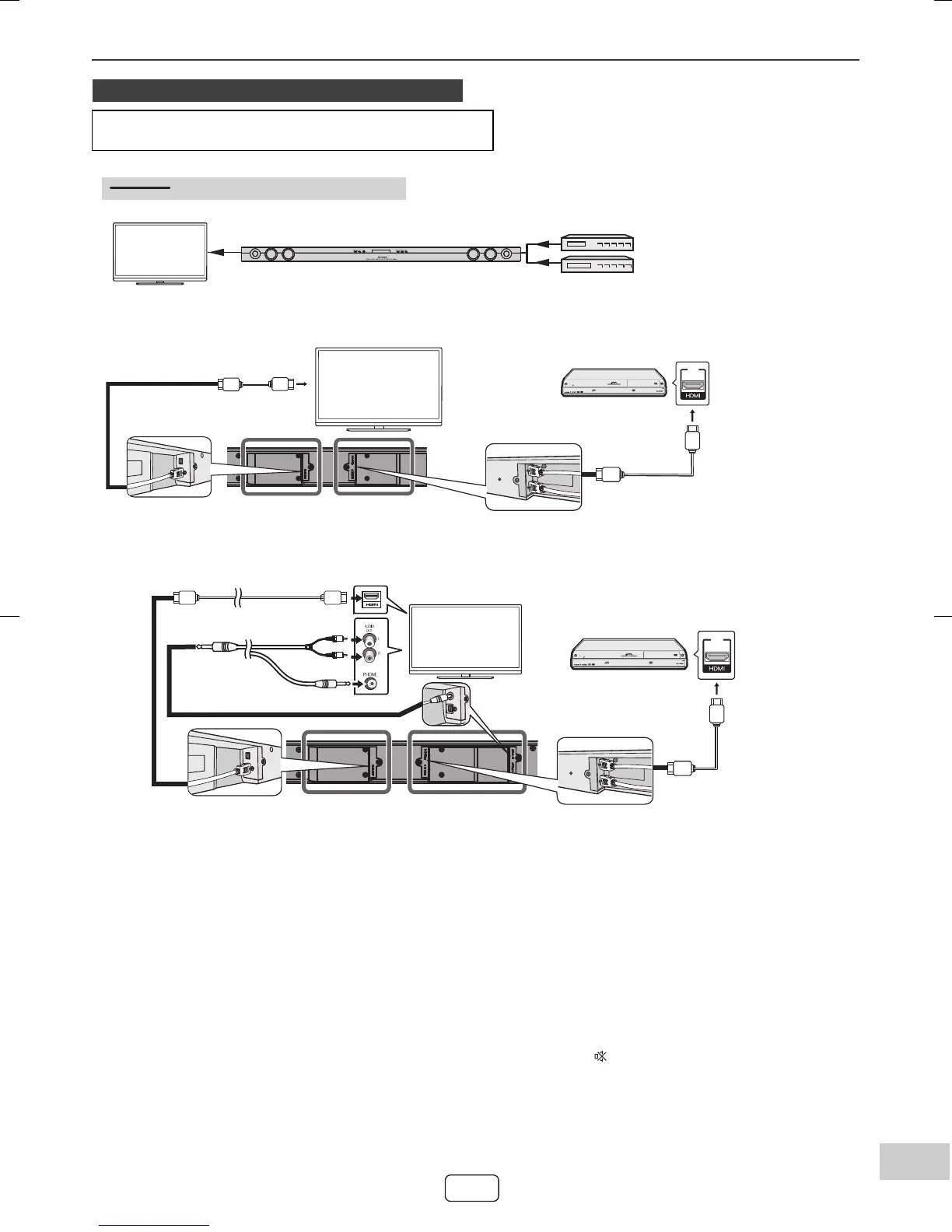

System connections (continued)
The illustration below shows the flows of the signals.
1. Method 1
This connection is for HDMI TV with ARC (Audio Return Channel).
2. Method 2
This connection is for HDMI TV without ARC (Audio Return Channel).
Notes:
● This sound bar supports HDMI which enables ARC (Audio Return Channel).
● To enable ARC make sure to use High Speed HDMI™ cable (with ARC).
●
This ARC feature requires TV that supports ARC. Refer the operation manual of the TV to determine which terminal supports ARC.
● To listen to the sound from a non-ARC-compatible TV, connect the audio output from TV to this system’s. (refer page 9)
● This sound bar can be operated (power on/off or volume up/down) via a TV or similar component which supports HDMI CEC
(Consumer Electronics Control). If this does not work, it does not mean this system is faulty. Refer to the operation manual of
the respective component on how to activate the CEC.
Example: Go to the Menu of the component to search and enable the CEC. Different brands may have different naming for the
CEC. For SHARP LCD TV, it is named as AQUOS LINK.
● CEC is not available during Low power consumption mode.
● To listen to the sound from this system, you will need to press and hold the (MUTE) button (refer page 12) or adjust
the speaker output settings within the TV menu.
For details, refer to the operation manual of the TV.
● If you are unable to select external speaker setting from the TV menu (E.g. For SHARP LCD TV, it is named as AQUOS
AUDIO SP), turn the CEC OFF and ON again.
● To enjoy 3D images, this system must be connected to a 3D-compatible TV and components (3D BD player, etc.) via High Speed
HDMI cables. Put on the 3D glasses, otherwise 3D images may not be viewed properly.
● If you want to use HDMI IN 1 socket, please use the supplied HDMI cable.
■ HDMI Connection
Caution:
Turn off all other equipment before making this connection.
To select HDMI 1, 2 or TV ARC function (Source):
Press SOURCE button repeatedly until “HDMI 1”, “HDMI 2” or “TV ARC” appears on the display, or
press TV ARC button on the remote control to select the TV ARC.
DVD/Blu-ray
Digital tuner
TV
Audio and Video signal
TV
DVD, Blu-ray disc
player or similar
To HDMI output
terminal
To HDMI (TV ARC)
input terminal
To HDMI input terminal
Sound Bar
To HDMI OUT (TV ARC) output terminal
TV
DVD, Blu-ray disc
player or similar
To HDMI output
terminal
To HDMI input terminal
To HDMI input terminal
To HDMI OUT (TV ARC) output terminal
Sound Bar
To audio output terminal
To Headphone
terminal
To Next Page
