E-9

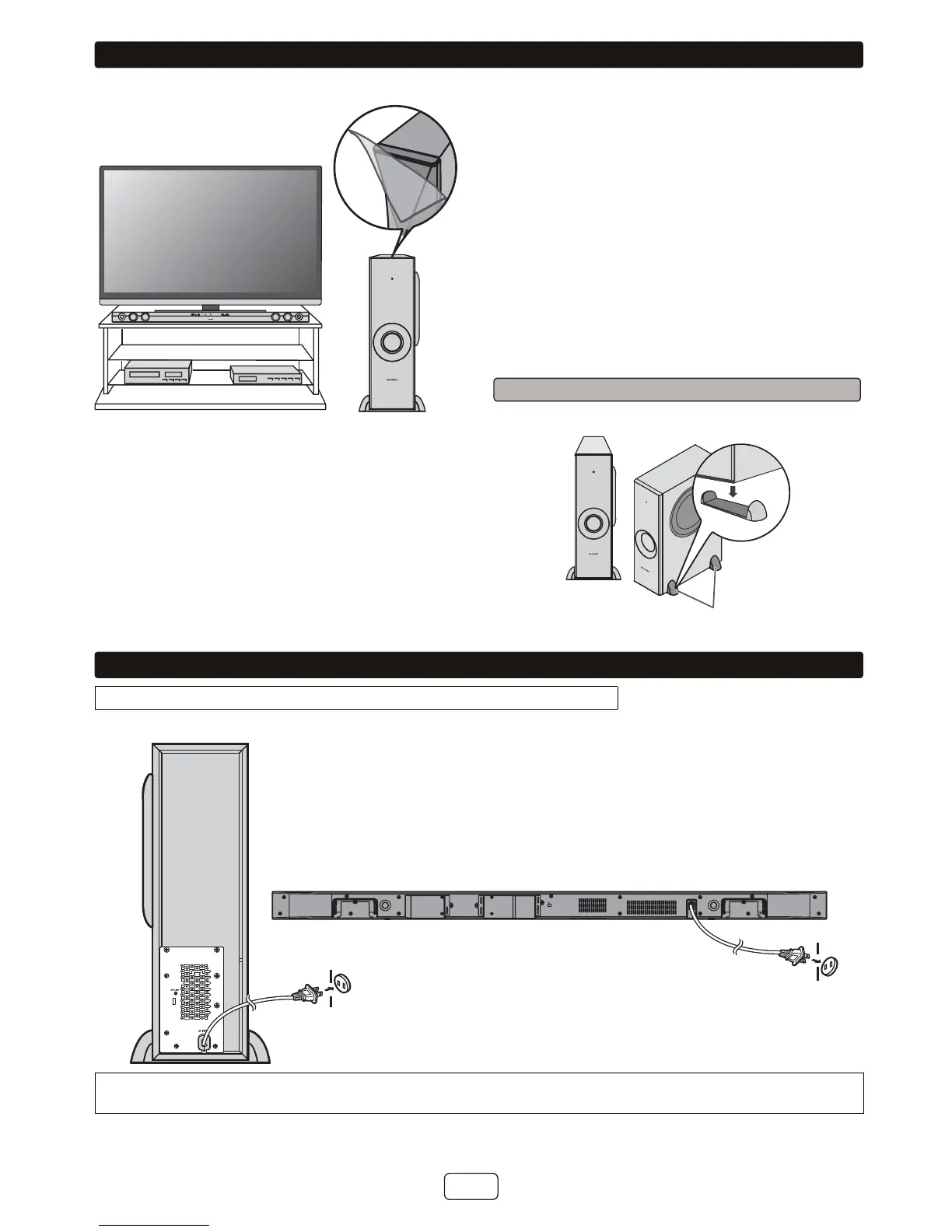

Placing the system
Installation image:
SOUND BAR HOME THEATER SYSTEM HT-SB603
TV
Digital Tuner DVD player Subwoofer
Sound Bar
Place the system as shown.
Remove the protective film covering the sound bar and
subwoofer before turn on the system.
Notes:
z The front panel of the sound bar is not removable.
z The transmission distance of the wireless signal
between the subwoofer and sound bar is about 32
feet (10 meters), but may vary depending on your
operating environment. If a steel-concrete or metallic
wall is between the subwoofer and the sound bar, the
system may not operate at all, because the wireless
signal cannot penetrate metal.
Caution:
z Do not change the installation direction when the
sound bar is turned on.
z Do not stand or sit on the sound bar and subwoofer as
you may be injured.
z Do not allow any objects to fall into or to be placed in
the bass reflex duct.
Placing the stand
Place the stand as shown.
Stand
System connections
Make sure to unplug the AC power cord before making any connections.
AC outlet
100 - 240 V ~ 50/60Hz
AC outlet
100 - 240 V ~ 50/60Hz
Sound Bar
Subwoofer
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
To Next Page
