Sharp HT-X1H - Page 10

HT-X1H
3 – 2

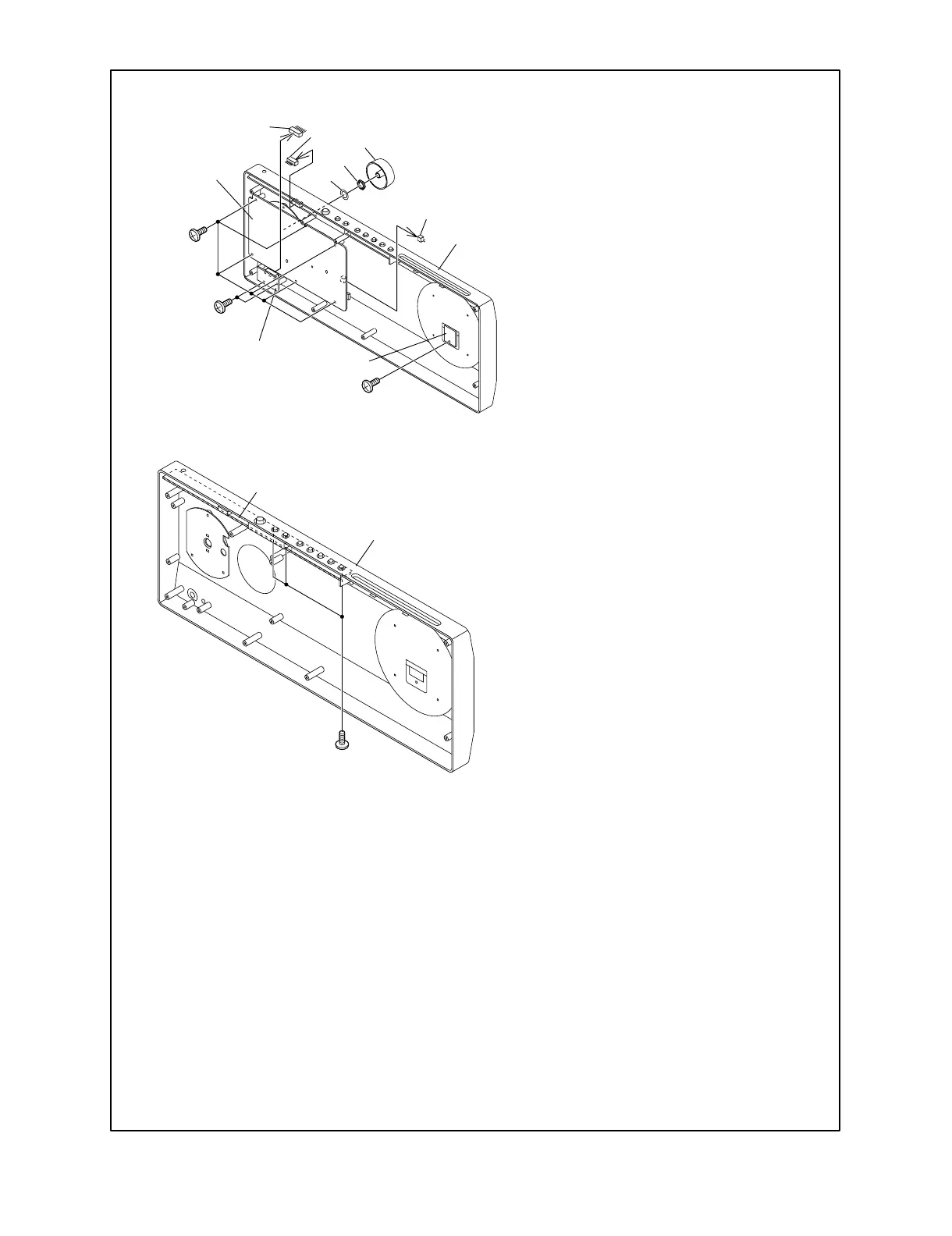

Display PWB
Headphone PWB
LED PWB
(C5)x2
M2.5x8mm
(C7)x1
M3x6mm
(C3)x6
M2.5x8mm
(C4)x1
(C4)x1
(C4)x1
(C1)x1
(C2)x1
Washer
Front Panel
(C6)x3
M2.5x8mm
Switch PWB
Front Panel
