Sharp HT-X1H - Precautions; General Precautions

HT-X1H
3 – 3
(A1)x6
M4x16mm
(A1)x3
M3x12mm
Subwoofer Box
Rear Cabinet
1 Rear Cabinet 1. Screw ...................... (A1) x9
2 1. Screw ...................... (B1) x7
.................... ( B2) x1
2. Socket
3.
It pulls out to the front.
3 Main PWB
1. Screw ...................... (C1) x5
2. Socket.......................... (C2 ) x7
4 Amp. PWB
1. Screw .................... (D1) x13
2. Bracket.......................... (D2 ) x2
3. Socket.......................... (D3 ) x1
STEP

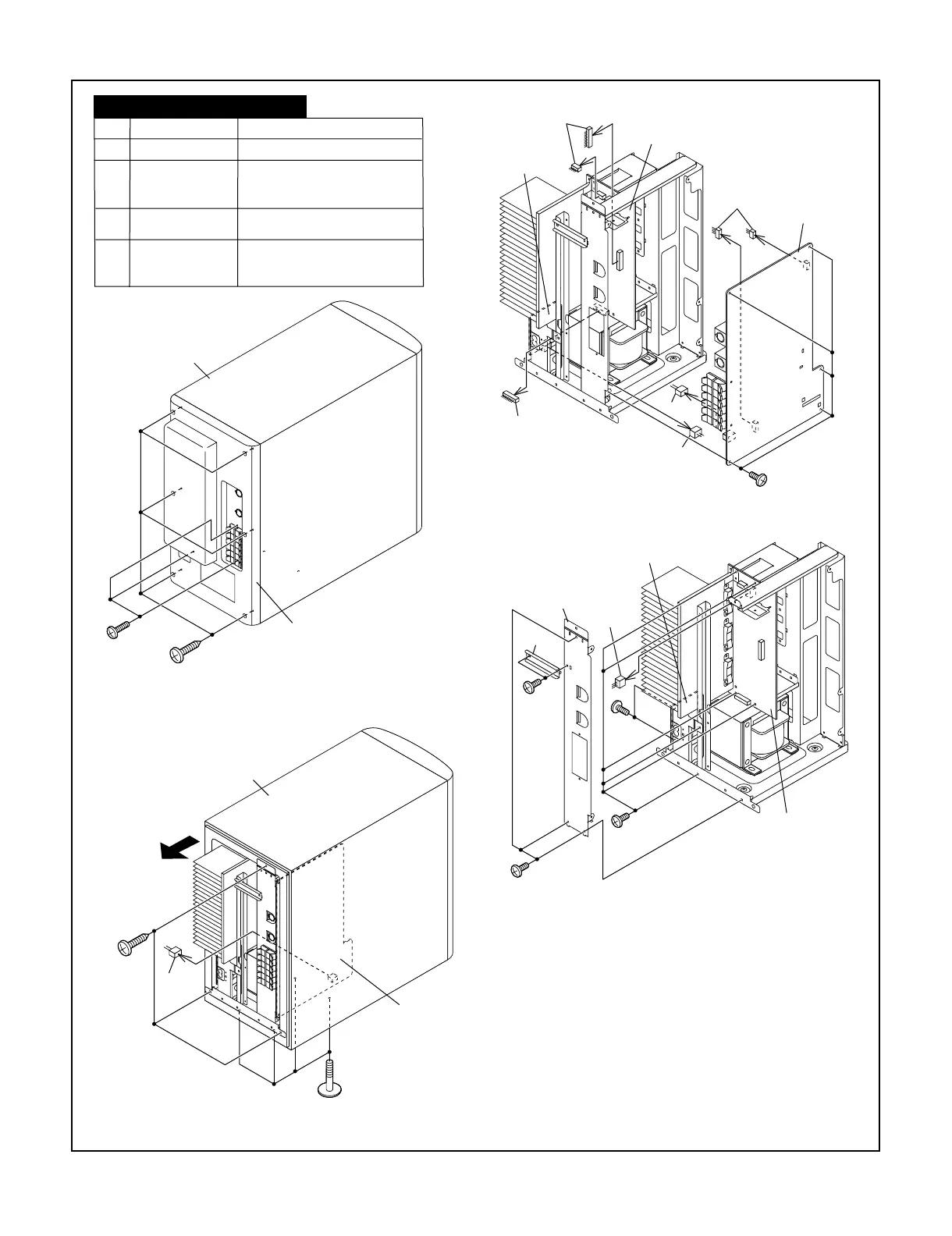

REMOVAL PROCEDURE
HT-X1H (Subwoofer Unit)
Amp. Unit
(B2)x1
Main PWB
(B1)x3
M4x16mm
(B1)x4
M4x28mm
Suboofer Box
(C2 )x1
(C2)x1
Amp. PWB
Main PWB
Power PWB
(C1)x5
M3x6mm
(C2)x1
(C2)x2
(C2)x2
(D3)x1
(D1)x3
M3x6mm
(D1)x2
M3x6mm
(D1)x2
M3x6mm
Amp. PWB
Power PWB
(D1)x6
M3x6mm
(D2)x1
(D2)x1
