E-11
ENGLISH

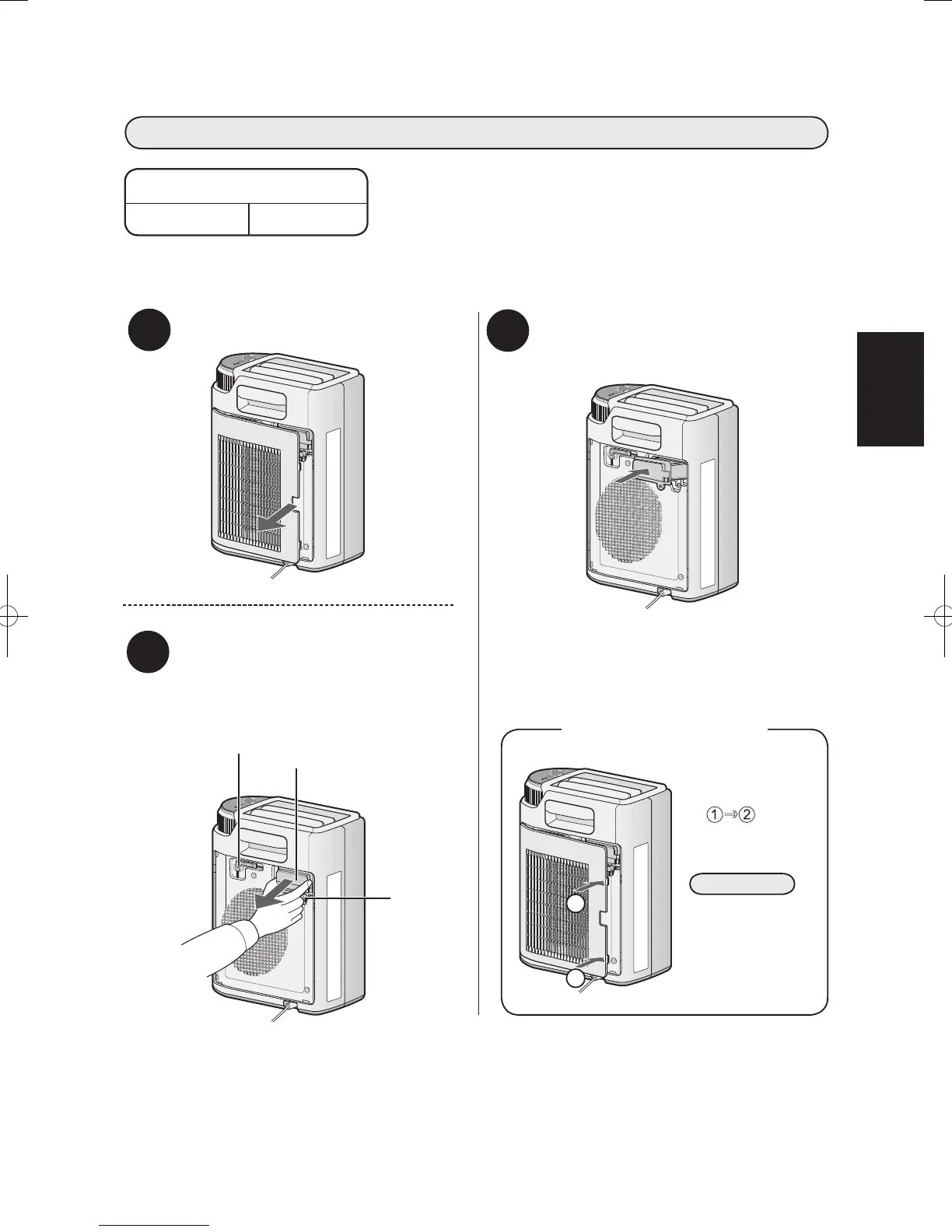

Remove the lter.
Remove the screw by using a coin
with a similar-size coin head or a
screwdriver, and the Plasmacluster
lon Generating Unit.
Replace the new Plasmacluster
Ion Generating Unit.
Fix it into the main unit rmly.
Cleaning Brush Plasmacluster Ion
Generating Unit.
Screw
REPLACEMENT OF PLASMACLUSTER ION GENERATING UNIT
Plasmacluster Ion Generating Unit
Model
IZ-CCL15U
* Before replacing the Plasmacluster Ion Generating Unit, be sure to turn off the main unit,
unplug the power cord, and never handle the plug with wet hands.
* After replacing the Plasmacluster Ion
Generating Unit, ll the replacement date
on the Date Label at the side of the main
unit.
<For Disposal>
Please dispose the used Plasmacluster Ion Generating Unit according to any local laws and
regulations.
-materials-
• Case : Acrylonitrile Butadiene styrene (ABS)
• Unit : Polybtutylene Terephthalate (PBT), Electric parts.
FILTER INSTALLATION
Push the right side
of the lter in order
of
, and lock
each tab securely.
ATTENTION
The Plasmacluster
Ion Generator might
not work correctly if
lter is not properly
attached.
Operation_IG-CL15U_EN.indd 11 11.4.13 8:58:19 AM
