Sharp JH-1600E

8

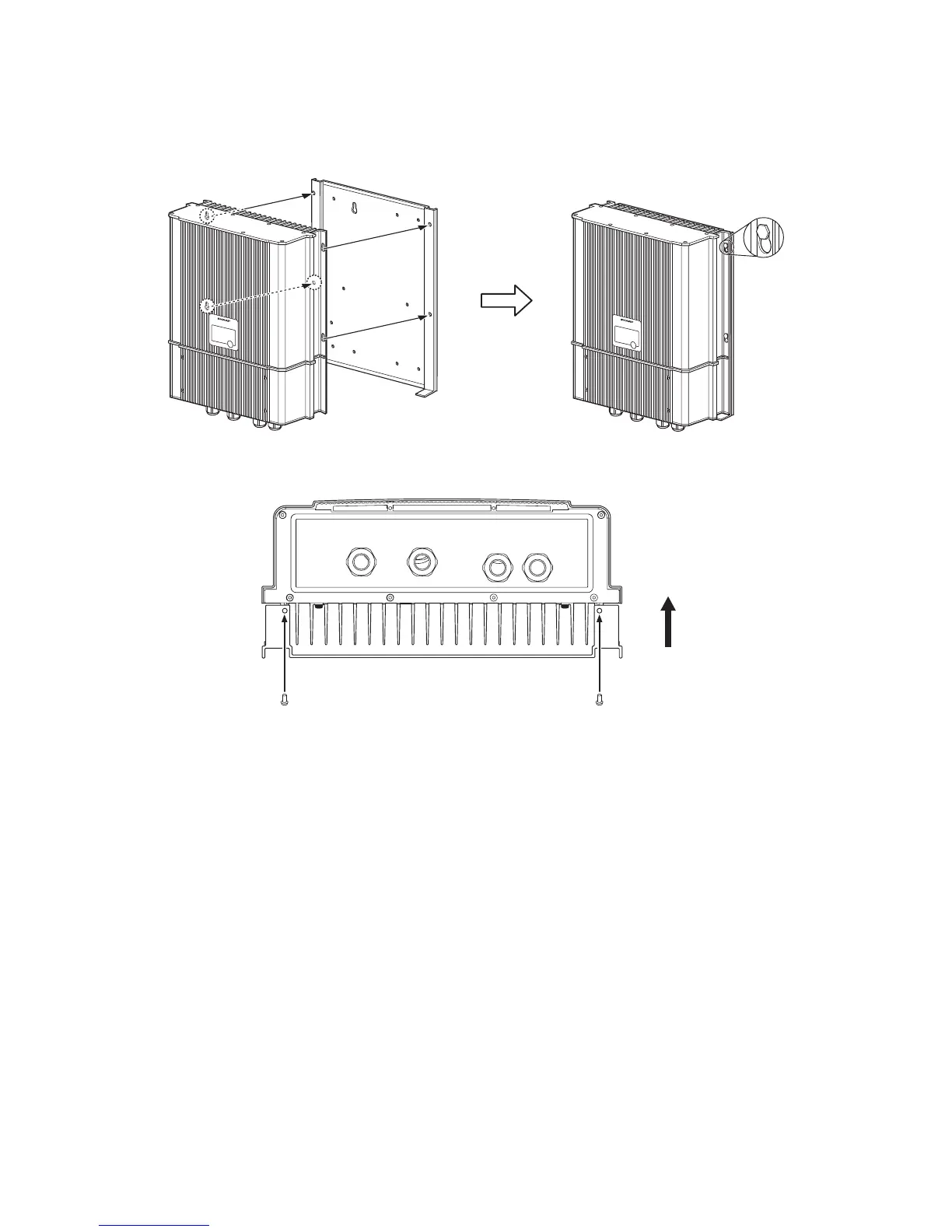

(3) Place the JH-1600E on the mounting bracket. Key holes located on the upper side and
middle side of the inverter unit are for hanging the unit on the bracket. place key holes
on the 4 hexa bolt head the bracket.
(4) Use 2 pcs screws to fix the JH-1600E on the mounting bracket.
(Front)
