10
KB-6524PS
KB-6524PK
KB-6524PW

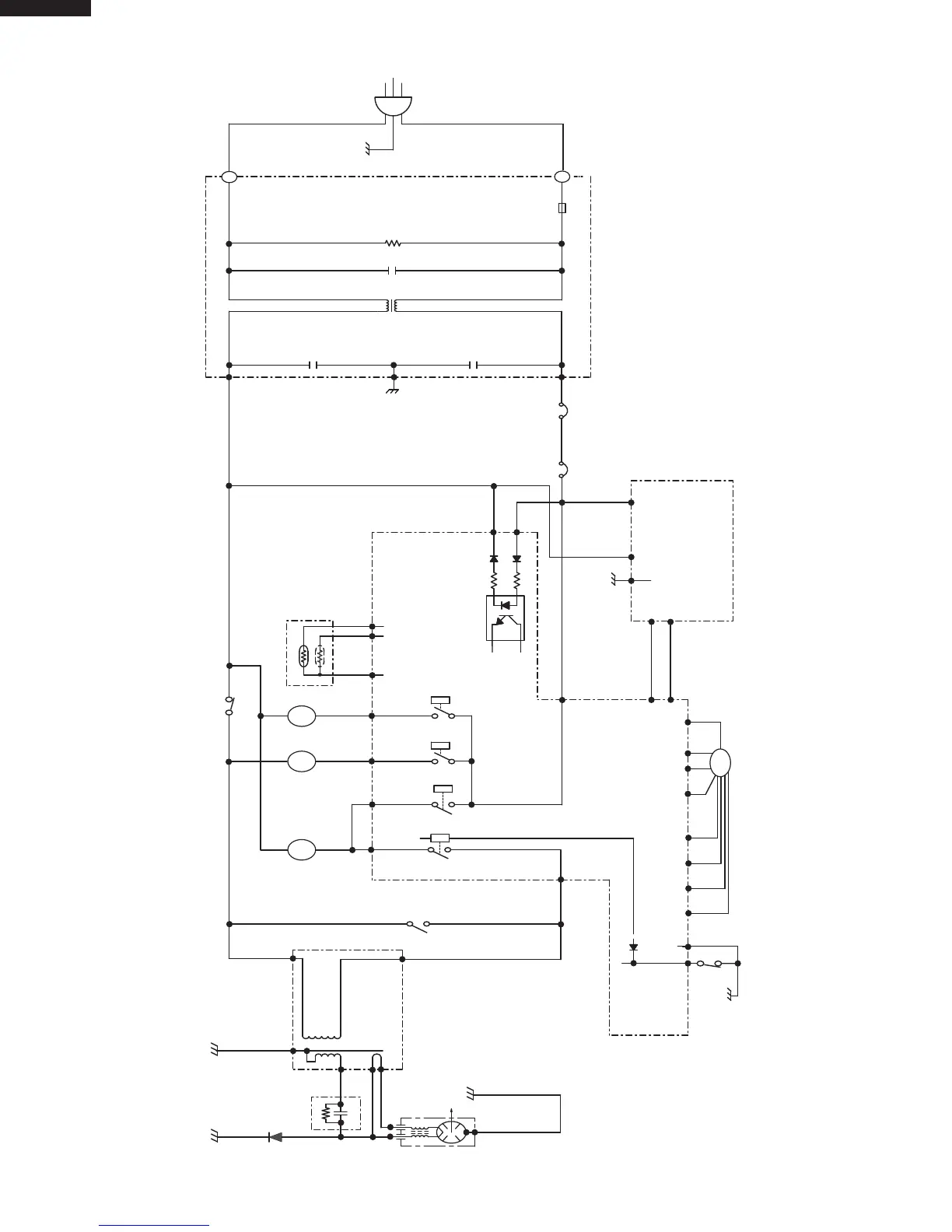

SCHEMA
TIC (OFF CONDITION)
Ｓ
Ｍ
Ｏ
Ｌ
ＦＭ
Ｒ
Ｙ
１
Ｒ
Ｙ
２
Ｒ
Ｙ
３
HUMIDITY
SENSOR
NOISESUPRESSIONCOIL
RESISTOR 470kΩ1/2W
LINECROSSCAPACITOR1.0μF275V
LINEBYPASSCAPACITOR
0.0033μF250V
LINEBYPASSCAPACITOR
0.0033μF250V
FUSE
20A
FANMOTOR
OVENLAMP
MONITORSWITCH
PRIMARYINTERLOCKRELAY
RECTIFIER
MAGNETRON
POWERTRANSFORMAR
CAPACITOR
1.00μF
AC2300V
STIRRER
MOTOR
Ｌ
Ｎ
Ａ
７
Ａ
５
Ａ
１
Ａ
３
C
１
C
５
Ｃ
Ｎ
２
０
１
1
Ｃ
Ｎ
１
０
１
３
Ｃ
Ｎ
１
０
１
１
Ｃ
Ｎ
２
０
１
5
〜
CONTROLUNIT
Ｎ
１
Ｎ
２
Ｎ
３
Ｎ
４
Ｎ
５
Ｎ
６
Ｎ
７
Ｎ
８
SWITCHINGREGULATOR
OVEN
THERMAL
CUT-OUT
MG
THERMAL
CUT-OUT
〜
〜
〜
SECONDARYINTELOCKSWITCH
ＤＭ
MICROWAVEDRAWER
DOOROPEN-CLOSE
MOTOR
Ｒ
Ｙ
４
〜
DOOR
SENSING
SWITCH
C
４
C
２
Ｆ
１
Ｆ
２
Ｆ
３
〜
〜
〜
〜
〜
〜
9
11
Table of Contents
Table of Contents
1
Precautions to be Observed before and During Servicing to Avoid Possible Exposure to Excessive Microwave Energy
2
Before Servicing
2
Before Servicing
3
After Repairing
3
Warning to Service Personnel
3
Requirements
4
Leakage Test
4
Microwave Measurement Procedure
4
Foreword and Warning
5
Schematics
5
Product Specifications
6
General Information
7
Grounding Instructions
7
Oven Diagram
7
Key Sheet
7
Power Level P-0 Top-90 Cooking
8
Cooking Condition
8
Description of Operating Sequence
8
Operation
8
Sensor Cooking Condition
9
Cooking Sequence
9
Schematic (off Condition)
10
Test Procedures
11
Touch Control Panel Assembly Test
11
Keyboard/Control Unit
11
Power Unit or Touch Control Transformer
11
Key Unit Test
12
Relay Test
12
Defrost Test
13
Procedures to be Taken When Fuse on Printed Wiring Board Is Open
13
AH Sensor Test
14
Testing Method for AH Sensor And/Or Control Unit
14
Checking the Initial Sensor Cooking Condition
14
Water Load Cooking Test
14
Checking Control Unit
15
Microwave Output Power
16
Thermal Cut-Out Test
16
Magnetron Assembly Test
16
Secondary Interlock Switch Test
17
Stop Switch Test
17
Monitor Switch Test
17
Blown Monitor Fuse Test
18
Power Transformer Test
18
Detector Circuit of Humidity Sensor Circuit
19
Operational Principle of Humidity Sensor
19
Structure of Humidity Sensor
19
Humidity Sensor Circuit
19
Precautions for Using Lead-Free Solder
20
Employing Lead-Free Solder
20
Using Lead-Free Wire Solder
20
Soldering
20
Component Replacement and Adjustment Procedure
21
Warning against High Voltage
21
Warning for Wiring
21
Test Procedures
22
Microwave Drawer Disassembly
22
Noise Filter Board Replacement
23
Stop Switch, Secondary Interlocks Switch and Monitor Switch Removal
24
Stop Switch, Secondary Interlock Switch and Monitor Switch Adjustment
24
Latch Hook Left/Right
24
Drawer/Slide Rail Removal
25
Drawer Assembly and Choke Removal
25
Drawer Support Angle Removal
25
Door Latch Removal
26
Oil Damper Information
27
Rack Gear/Oil Damper Removal/Installation
27
Auto Drawer Gear Removal/Installation
27
Wiring Diagrams
28
Parts List
29
Exploded View
31
Drawer and Control Panel
31
Drawer Cavity
32
Drawer Cabinet
33
Packing Parts
34
Packing and Accessories
34
