26
KB-6524PS
KB-6524PK
KB-6524PW
1. Follow the Microwave Drawer disassembly as previously stated
2. Open the drawer and keep it open.
3. To discharge the high voltage capacitor, wait for 60 seconds.
4. To remove latch, follow "DRAWER/SLIDE RAIL REMOVAL", then remove the (10) screws holding door panel to door
frame (Fig. L-1).
5. With the door panel removed, unhook latch/s spring, then remove screw. (Fig. L-2).
6. Proceed in reverse to reinstall.
7. Adjust switch.

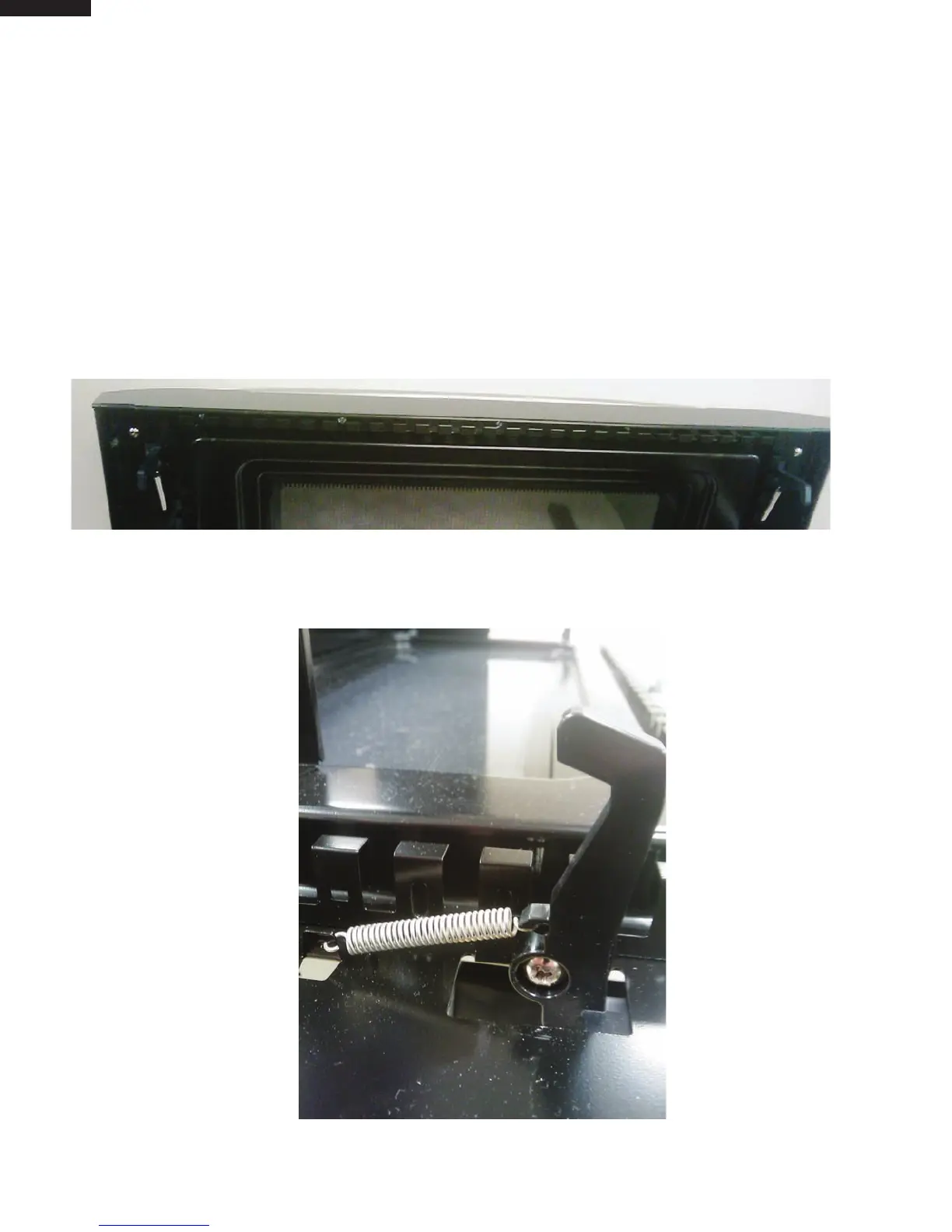

Fig. L-1
Fig. L-2
DOOR LATCH REMOVAL
