COMPONENT REPLACEMENT PROCEDURE
1. Upside down the rice cooker.
2. Remove the screw holding the cord reel ass’y.
3. Remove the cord reel ass’y and disconnect lead wires from cord reel ass’y.
4. Now the cord reel ass’y is free.

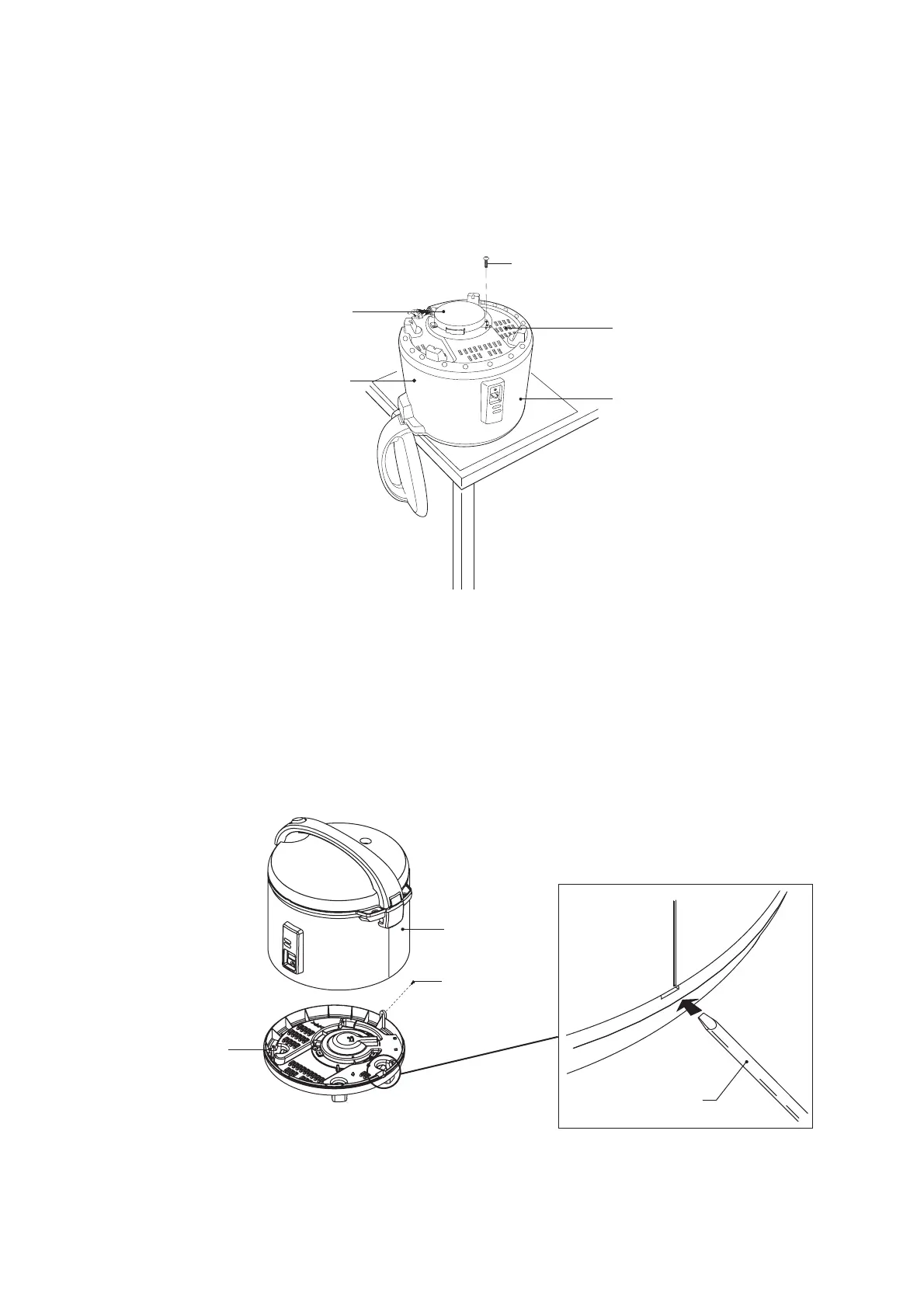

Fig. 1
Screw
Place a blanket for protection
Cord reel ass’y
Rice cooker
Bottom cover
REMOVE OF CORD REEL ASSEMBLY
1. Remove the cord reel assembly in accordance with “REMOVE OF CORD REEL ASSEMBLY”.
2. Remove the screw holding the body to bottom cover.
3. Insert the fl at type screwdriver into the gap between the bottom cover and body, to pry the bottom cover
out of body.
4. Now the bottom cover is free.
REMOVE OF BOTTOM COVER
Body
Bottom cover
Fig. 2
Screw
Body
Flat type screwdriver
To Next Page
