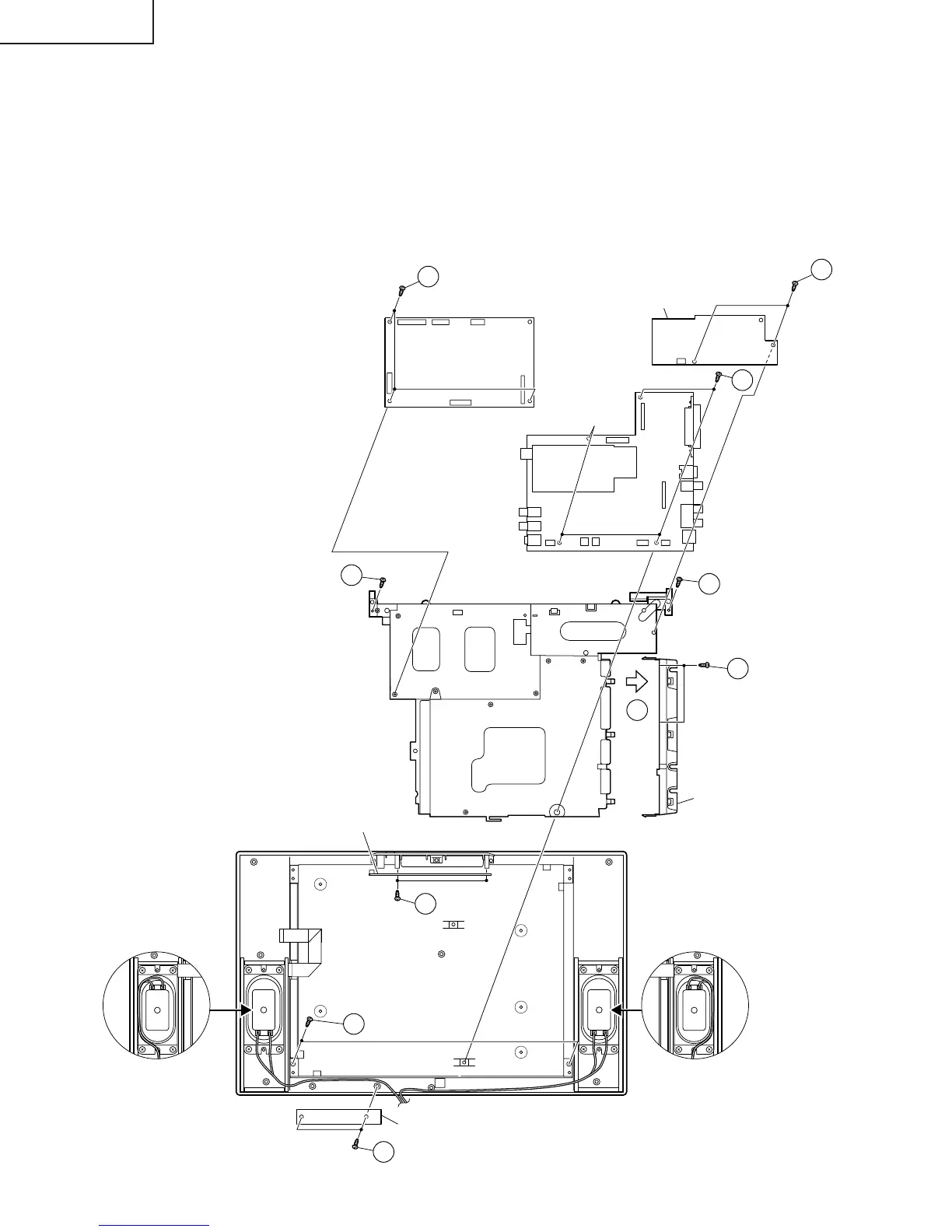

8. Remove the inverter PWB fixing screws (2 pcs.).
9. Remove the main PWB fixing screws (3 pcs.).
10. Remove the 21-pin terminal fixing screw (2 pcs.).
11. Detach the chassis frame cover.
12. Remove the tuner PWB fixing screws (4 pcs.) .
13. Remove the R/C, LED PWB fixing screws (2 pcs.).
14. Remove the operation PWB fixing screws (2 pcs.).
15. Remove the chassis frame fixing screws (2 pcs.).
16. Remove the LCD panel unit fixing screws (2 pcs.).
INVERTER PWB
TUNER PWB
9
MAIN PWB
LCD Panel unit
8
Chassis frame cover
OPERATION PWB
Chassis frame
13
R/C, LED PWB
15
11
10
12
15
16
14
Only for LC-13B4E Only for LC-13B4E
To Next Page
