Sharp LC-13B4E User Manual

11
LC-13B4E
LC-15B4E
» Precautions in handling the LCD panels
1. Work in a clean room (with humidities below 50%).
2. Be sure to wear an anti-static armband.
3. Handle the panels on an electroconductive mat.
4. Be careful not to fall, shake and shock the panels.

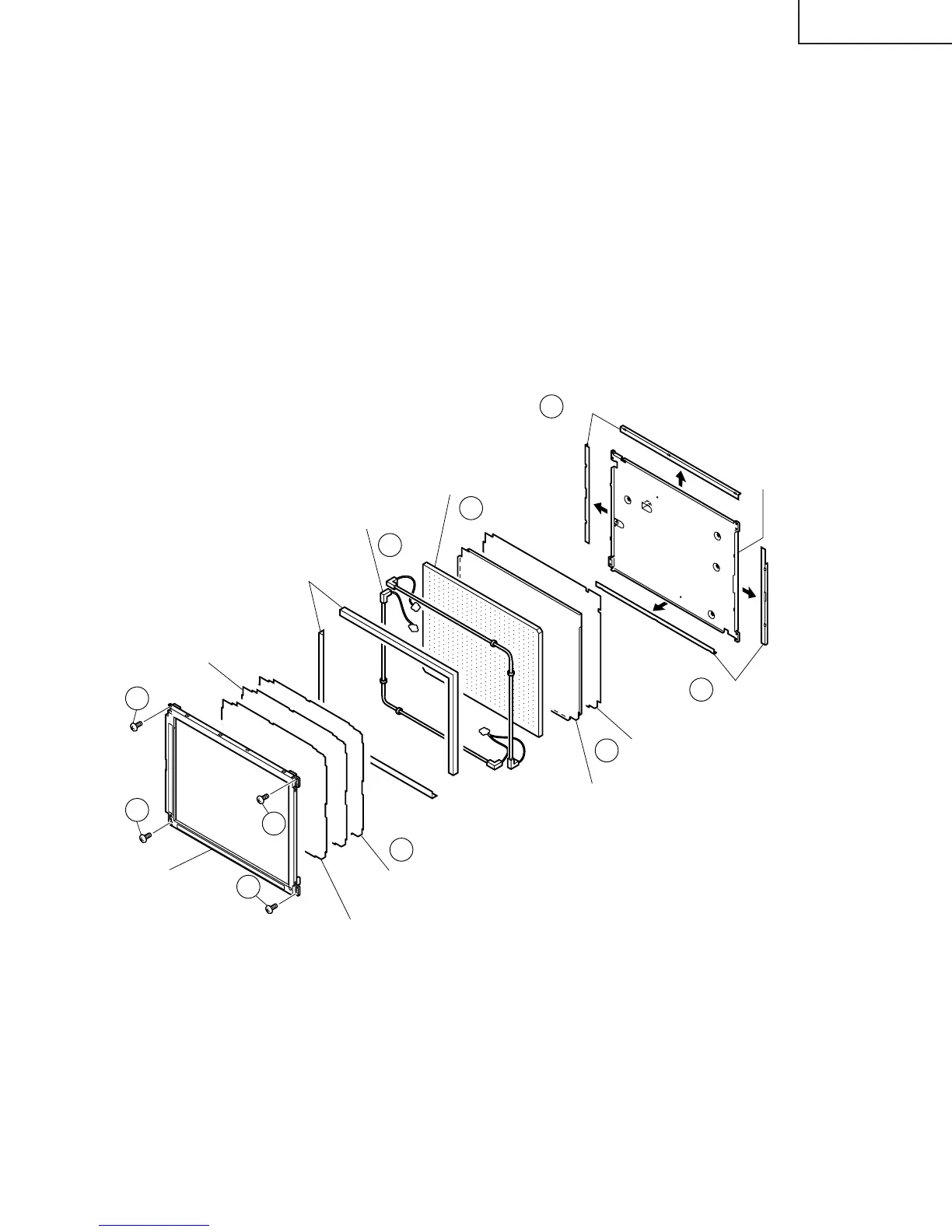

17. Remove the LCD panel unit fixing screws (4 pcs.).
18. Detach the two diffusion sheets and reflection/deflection sheet.
19. Detach the four reflection mirrors.
20. Remove the lamp unit.
21. Detach the lamp guide plate.
22. Detach the two lamp reflection sheets.
18
19
19
20
21
22
17
17
17
17
Reflection Mirror
Reflection Mirror
Lamp Reflection Sheet-1
(PSHEP0279CEZZ): LC-13B4E
(PSHEP0284CEZZ): LC-15B4E
Light Guide Plate
(PGiDM0069CEZZ): LC-13B4E
(PGiDM0070CEZZ): LC-15B4E
Lamp Unit
(KLMP-0120CEZZ): LC-13B4E
(KLMP-0122CEZZ): LC-15B4E
Lamp Reflection Sheet-2
(PSHEP0280CEZZ): LC-13B4E
(PSHEP0285CEZZ): LC-15B4E
Diffusion Sheet
(PSHEP0278CEZZ): LC-13B4E
(PSHEP0283CEZZ): LC-15B4E
Reflection/deflection Sheet
(PSHEP0276CEZZ): LC-13B4E
(PSHEP0281CEZZ): LC-15B4E
LCD Panel Unit
Back Shield
(PSLDM4684CEFW): LC-13B4E
(PSLDM4689CEFW): LC-15B4E
Reflection Sheet (Cover)
(PSHEP0306CEZZ): LC-13B4E
(PSHEP0307CEZZ): LC-15B4E
Prism Sheet
(PSHEP0277CEZZ): LC-13B4E
(PSHEP0282CEZZ): LC-15B4E
