LC-13S1E
LC-15S1E

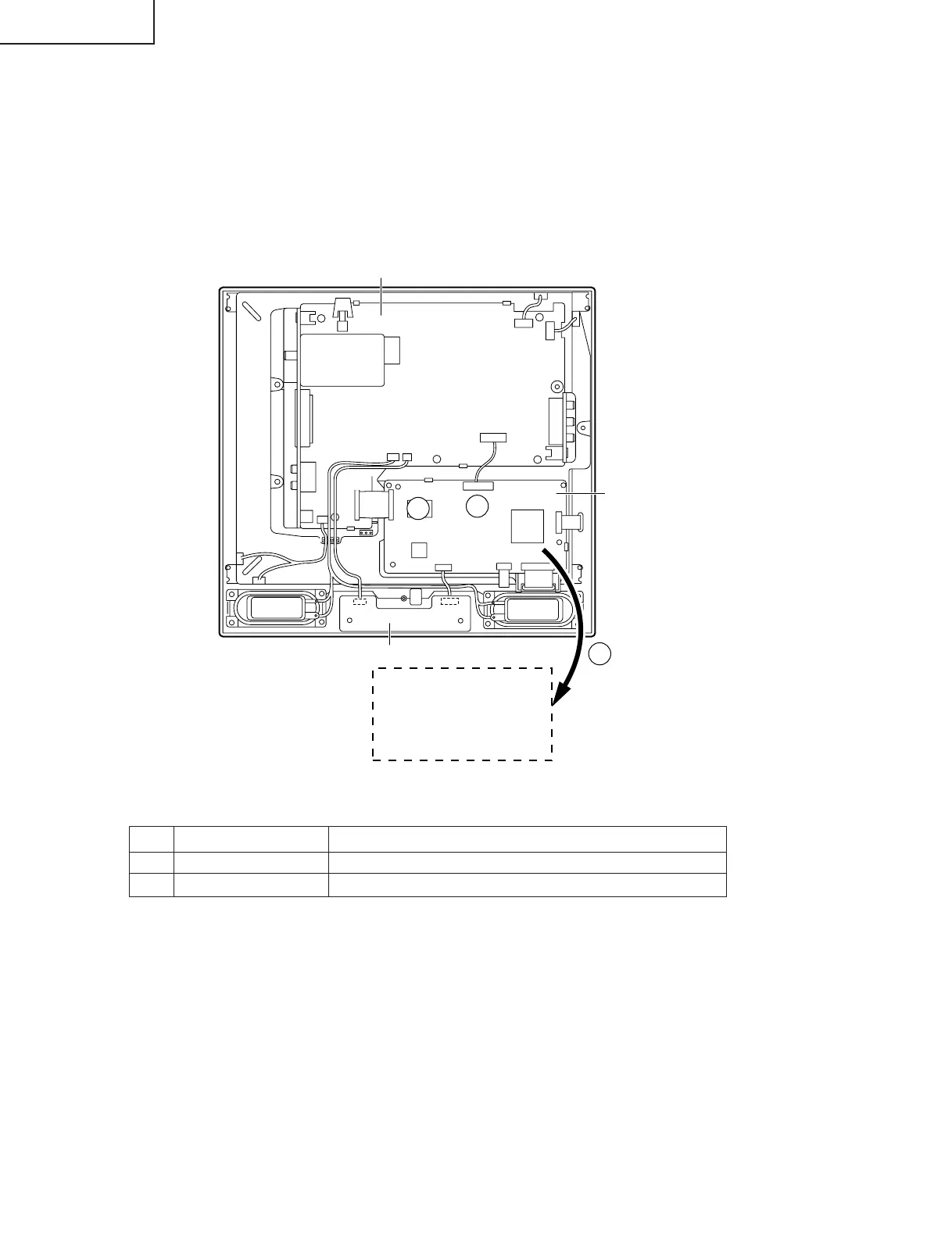

» Precautions at the time of the side B(back) service of main unit.
1. Remove only SC2001 of the FFC for connection between Main unit(SC2001) and Tuner unit(SC3901), and con-
nect the extended cable (QCNW-A369WJZZ) for service.
2. Remove only P701 of the FFC for connection between Main unit(P701) and Tuner unit(P1900), and connect the
extended cable (QCNW-B594WJZZ) for service.
3. Remove the main unit fixing screws(3 pcs.), a substrate is reversed.
Step Part No. Description
1 QCNW-A369WJZZ Extension Cable 50-pin Main (SC2001)-Tuner (SC3901)
2 QCNW-B594WJZZ Extension Cable 13-pin Main (P701)-Tuner (P1900)
P1900
SC2001
SC3901
P701
Tuner PWB
Main PWB
R/C, LED PWB
Main PWB
(Side B)
3
2
1
