LC-13S1E
LC-15S1E
» Precautions in handling the LCD panels
1. Work in a clean room (with humidities below 50%).
2. Be sure to wear an anti-static armband.
3. Handle the panels on an electro-conductive mat.
4. Be careful not to fall, shake and shock the panels.

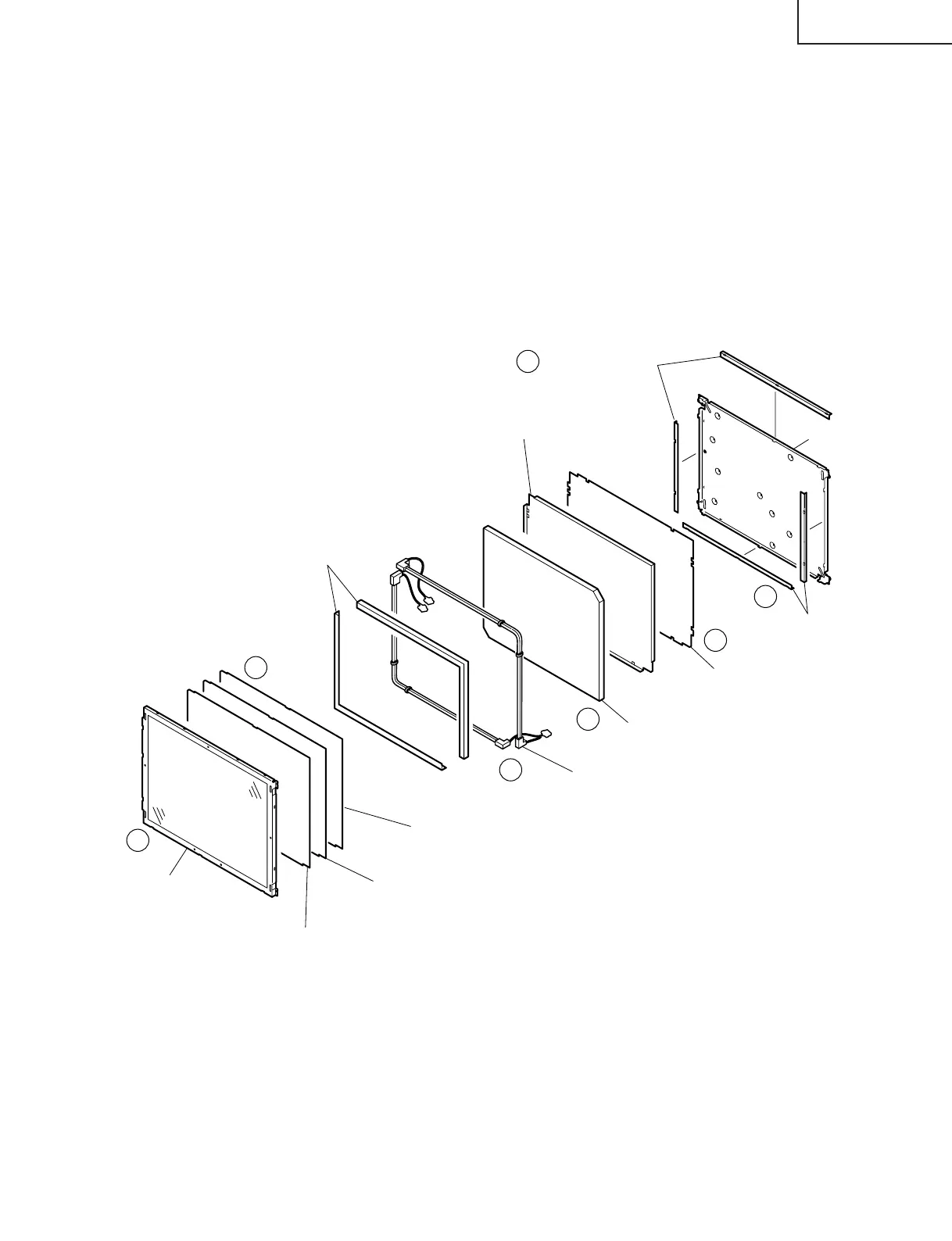

11. Remove the LCD panel unit.
12. Detach the prism sheet, diffusion sheet and reflection/deflection sheet.
13. Detach the four reflection mirrors.
14. Remove the lamp unit.
15. Detach the Light guide plate.
16. Detach the two lamp reflection sheets.
12
11
Reflection/deflection Sheet
(PSHEP0276CEZZ:LC-13S1E)
(PSHEP0281CEZZ:LC-15S1E)
Prism Sheet
(PSHEP0277CEZZ:LC-13S1E)
(PSHEP0282CEZZ:LC-15S1E)
Diffusion Sheet
(PSHEP0278CEZZ:LC-13S1E)
(PSHEP0283CEZZ:LC-15S1E)
Lamp Unit
(KLMP-0120CEZZ:LC-13S1E)
(KLMP-0122CEZZ:LC-15S1E)
Light Guide Plate
(PGIDMA010WJZZ:LC-13S1E)
(PGIDMA011WJZZ:LC-15S1E)
Reflection Sheet-2
(PSHEP0280CEZZ:LC-13S1E)
(PSHEP0285CEZZ:LC-15S1E)
Reflection Mirror
Back Shield
Reflection Sheet-1
(PSHEP0279CEZZ:LC-13S1E)
(PSHEP0284CEZZ:LC-15S1E)
Reflection Mirror
Reflection Sheet (Cover)
(PSHEP0306CEZZ:LC-13S1E)
(PSHEP0307CEZZ:LC-15S1E)
LCD Panel Unit
13
14
15
16
13
