10
LC-13S1E
LC-15S1E

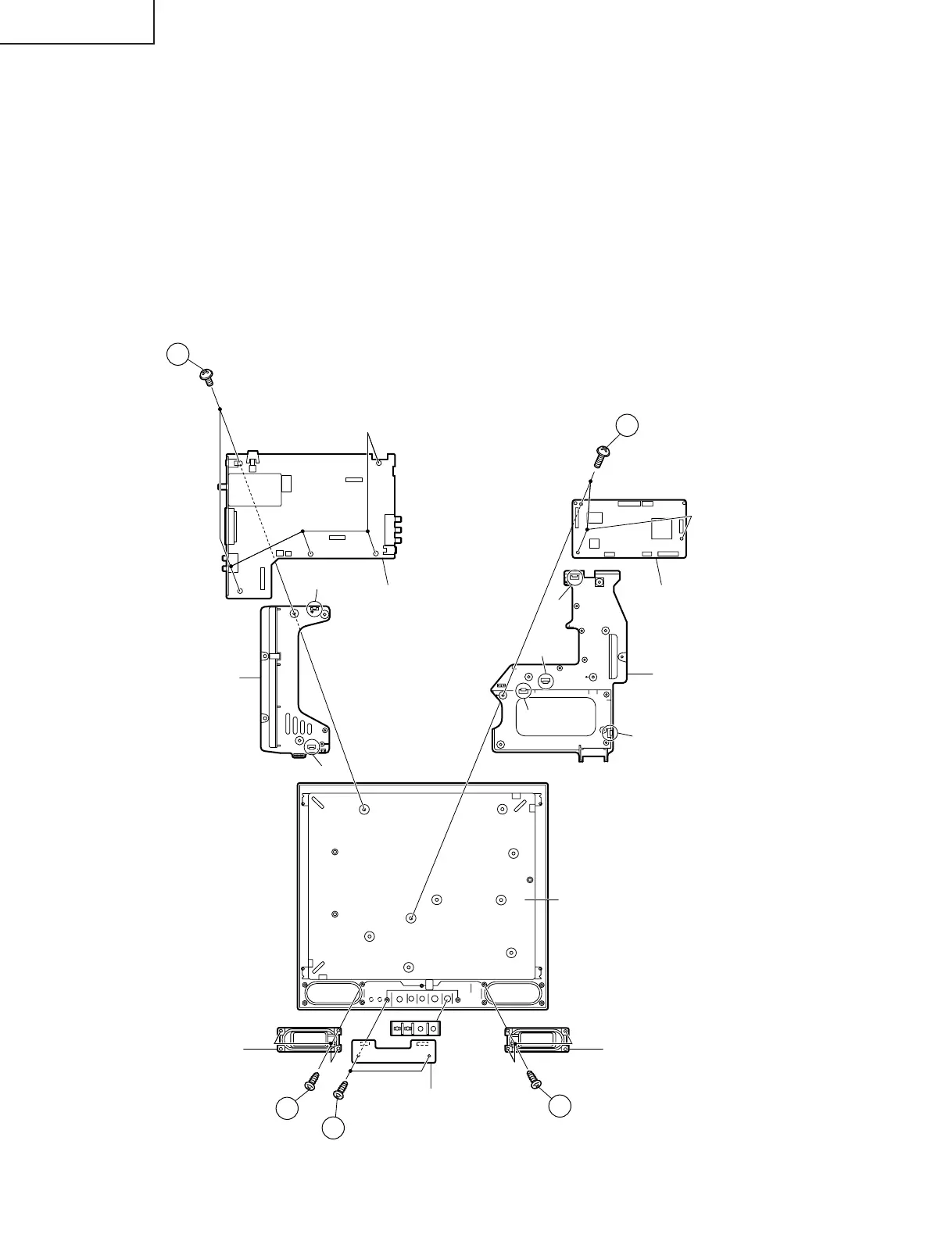

7. Remove the 3 lock screws from the main PWB and undo the hooks a and b. Lifting the other PWBs close to the
hooks, draw out the main PWB.
8. Remove the 5 lock screws from the tuner PWB and undo the hooks c and d. Detach the chassis frame (right),
together with its terminals, from the tuner PWB. Undo the hooks e and f in the same way. Detach the chassis
frame (left), together with its terminals, from the tuner PWB.
9. Remove the 2 lock screws from the R/C, LED PWB and take out the R/C, LED PWB.
10. Remove the 3 lock screws each from the right and left speakers and take out both the speakers.
R/C, LED
PWB
Tuner PWB
Chassis Frame (R)
LCD panel unit
Main PWB
Speaker (L)Speaker (R)
c
e
f
a
b
d
8
7
10
10
9
Chassis Frame (L)
To Next Page
