20
LC-13SH1E
LC-15SH1E

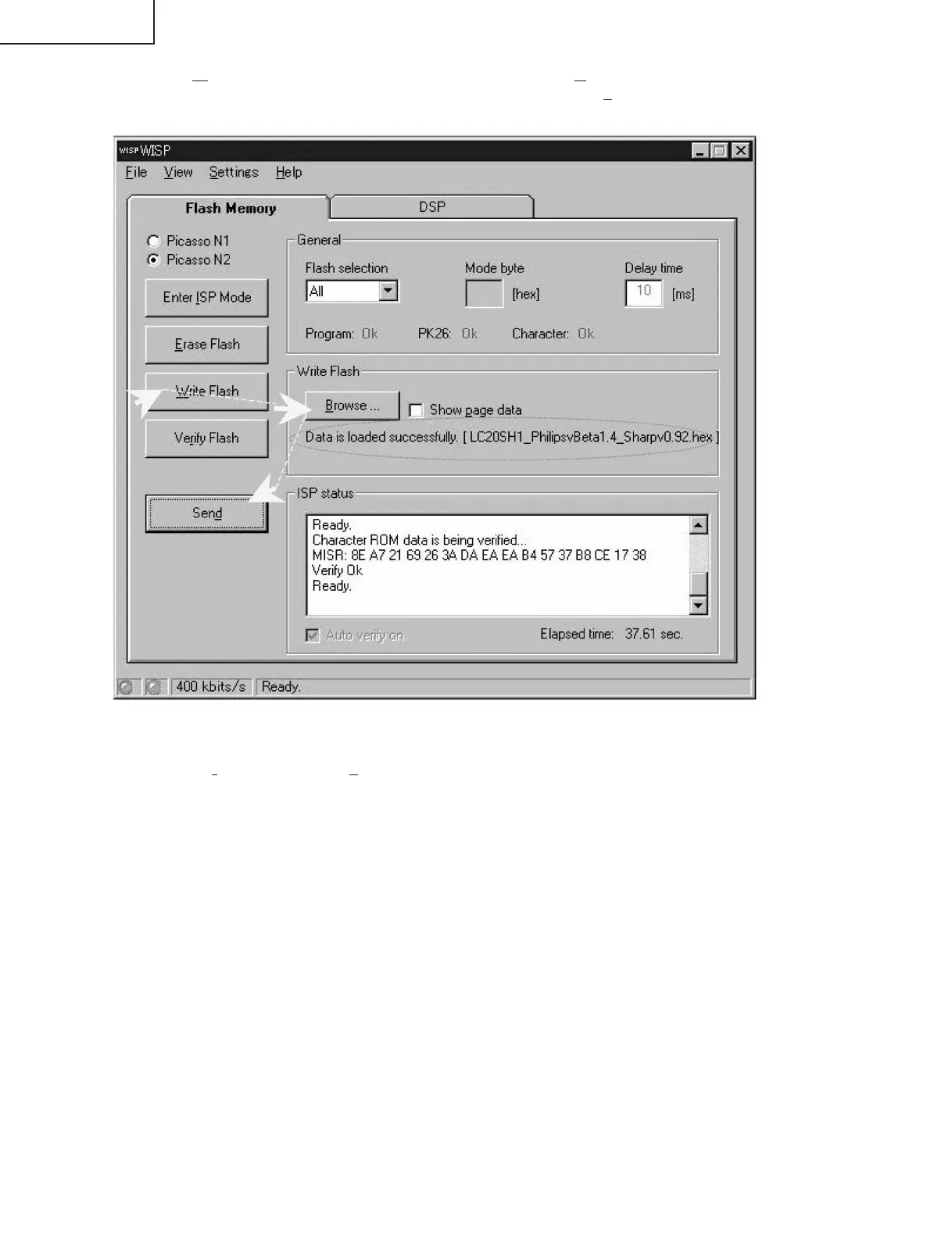

6) Next click [Write Flash] and load the source file by clicking [Browse]. The source file name are
"LC20SH1_****.hex". Once the data is loaded successfully click [Send]. Confirm the Program, PK26 &
Character are all "OK" and ISP status is "Ready".
If "Failed" occur, unplug the AC cord and repeat the whole process again from beginning.
7) Finally click [Verify Flash] and [Send] to verify the flash memory. Confirm the Program, PK26 & Character
are all "OK" and ISP status is "Ready". If "Failed" occur, unplug the AC cord and repeat the whole process
again from beginning.
8) Power OFF the set and remove the JIG.
