9-6
NOTE: CBA AND PWB MEANS PRINTED WIRING BOARD.
A7121SCM4

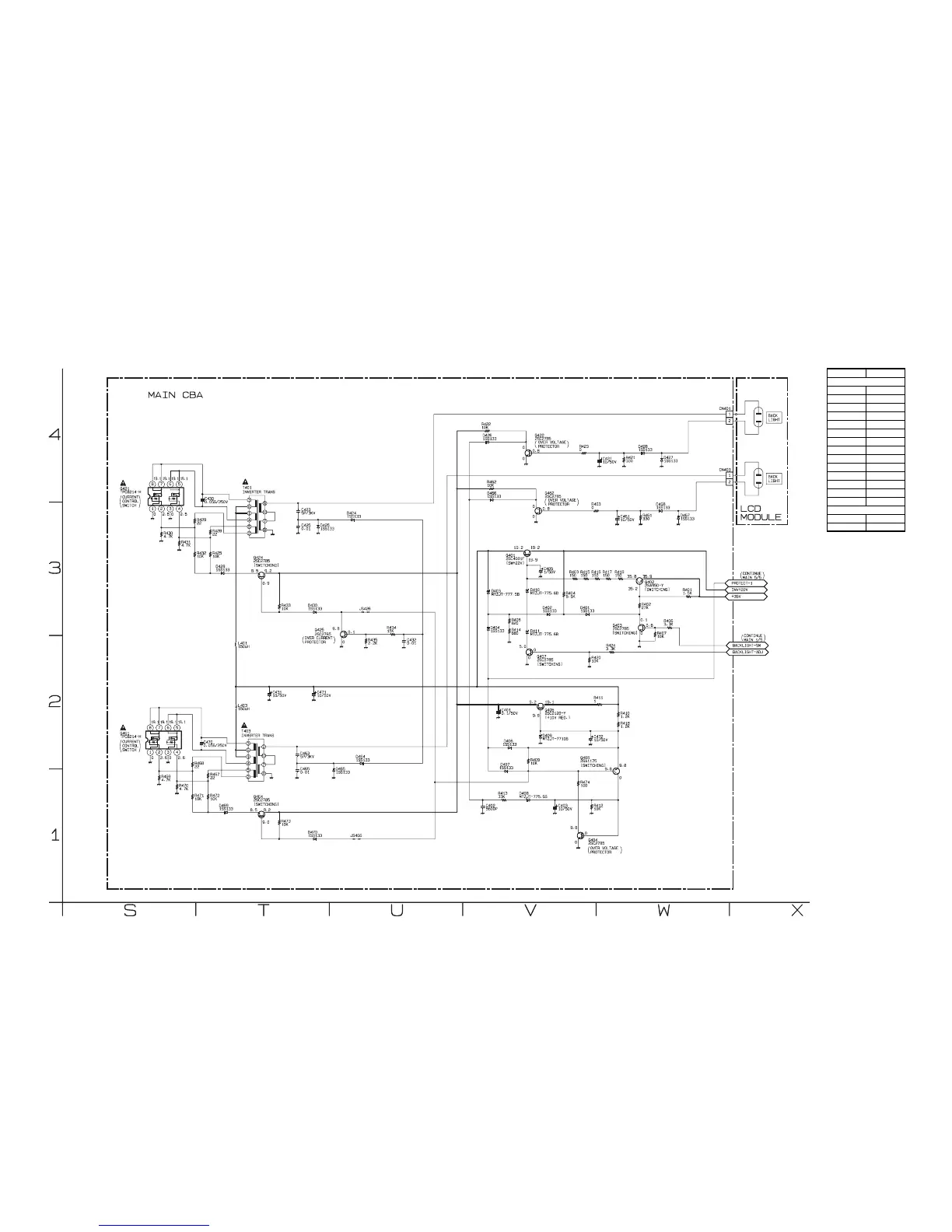

Main 4/5 Schematic Diagram
MAIN 4/5
Ref No. Position
Q401 V-3
Q402 W-3
Q403 W-3
Q404 V-1
Q405 W-2
Q406 V-2
Q407 V-2
Q421 S-4
Q422 V-4
Q424 T-3
Q425 U-3
Q461 S-2
Q462 V-3
Q464 T-1
CN401 X-4
CN403 X-4
CONNECTORS
TRANSISTORS
