9-7
NOTE: CBA AND PWB MEANS PRINTED WIRING BOARD.
For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.
CAUTION ! :
ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.
4A/125V
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F601) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
A7121SCM5

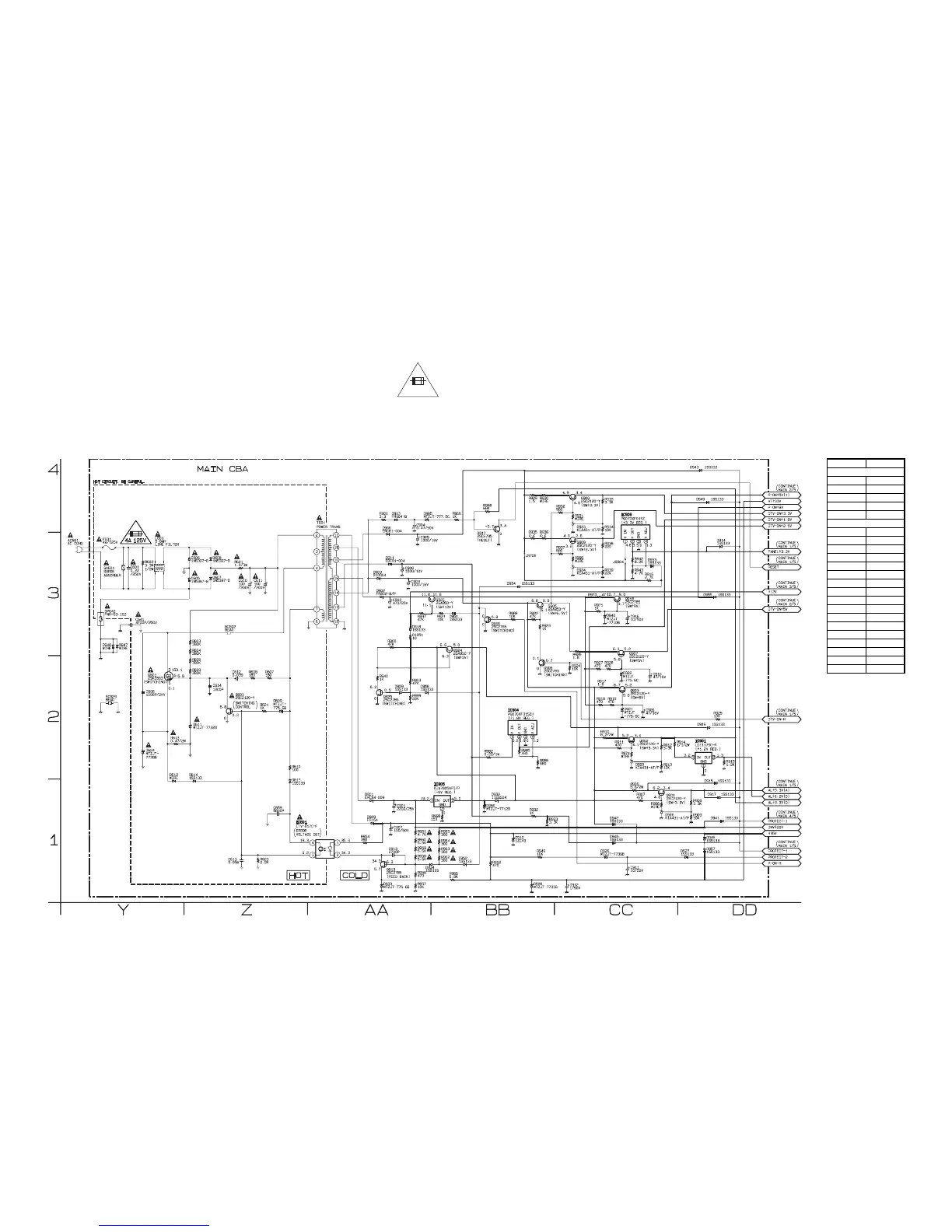

Main 5/5 Schematic Diagram
MAIN 5/5
Ref No. Position
IC601 AA-1
IC901 DD-2
IC904 BB-2
IC905 BB-1
IC906 CC-3
Q601 Y-2
Q603 Z-2
Q901 CC-1
Q902 CC-2
Q903 CC-2
Q905 BB-3
Q906 BB-2
Q907 CC-3
Q908 CC-4
Q909 CC-3
Q913 AA-1
Q916 BB-3
Q917 BB-3
Q918 CC-3
Q923 BB-3
Q924 BB-2
Q925 AA-2
ICS
TRANSISTORS
