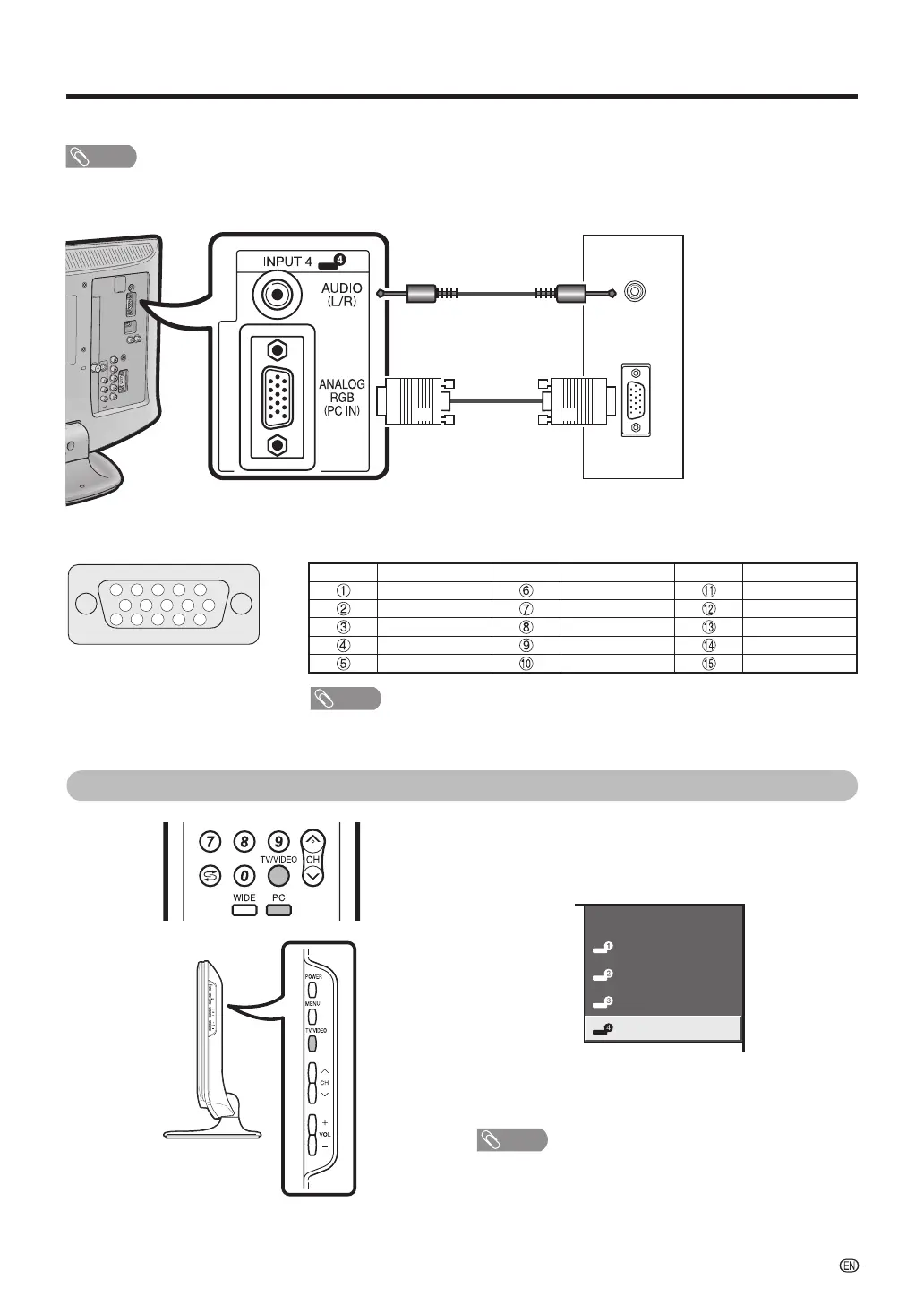

Connecting a PC
Displaying a PC image on the screen
ANALOG
RGB
AUDIO
(L/R)
To view an image from a PC, select “INPUT4” using
PC or TV/VIDEO on the remote control unit or TV/
VIDEO on the TV.
PC
RGB cable
(commercially available)
Ø 3.5 mm stereo
minijack cable
(commercially available)
Use the PC terminals to connect a PC.
NOTE
• The PC INPUT terminals are DDC1/2B-compatible.
• Refer to page 42 for a list of PC signals compatible with the TV.
TV
INPUT1
INPUT2
INPUT3
INPUT4
Signal names for 15-pin mini D-sub connector
NOTE
• Macintosh adaptor may be required for use for some Macintosh computers.
• Pin No.
5
is not used for inputting the signal.
15
14
13
12
9
11
10
8
7
6
5
4 3
2
1
Pin No. Signal name Pin No. Signal name Pin No. Signal name
R GND (Ground) Not connected
G GND (Ground) SDA
B GND (Ground) HD
Not connected +5V VD
CSYNC GND (Ground) SCL
When connecting to a PC, the correct input signal type
is automatically detected. (See page 40.)
NOTE
• Each time TV/VIDEO is pressed, the input source toggles.
