Sharp LC-19LE510E

73
LC-19LE510
LC-22LE510
LC-24LE510

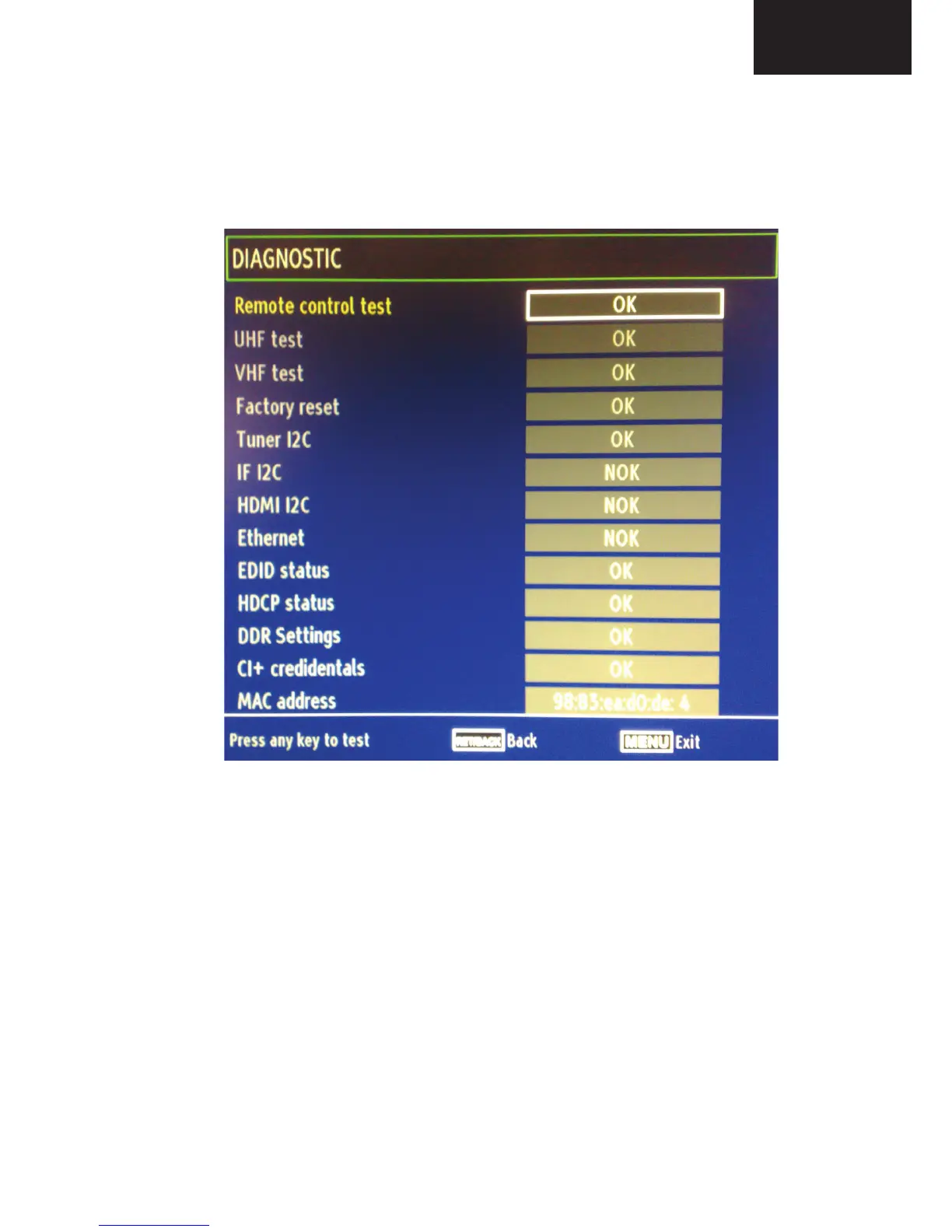

24.5. Diagnostic
23.6 Diagnostic
24.6. USB Operations
USB operations option cannot be used directly. It can be used for updating panel tool, hw configuration
etc.
25. SOFTWARE UPDATE
In MB60 project there is only one software. From following steps software update procedure can be seen:
 MB60_en.bin, mboot.bin and usb_auto_update_T4.txt documents should copy directly
inside of a flash memory(not in a folder).
 Put flash memory to the TV when TV is powered off.
 Power on the Tv .
 While the Tv is switch on press OK button consecutively.
 The Tv’s Led will blink faster then stand_by mode.
 If First Time Installation screen comes, it means software update procedure is successful.
To reach the latest sw file please use;
https://www.vestelservice.com/100359/New_Projects/Sharp/Sharp_2011/9_Customer_support/SW/
23.7 USB Operations
