26.6. USB Problems

Problem: USB is not working or no USB Detection.

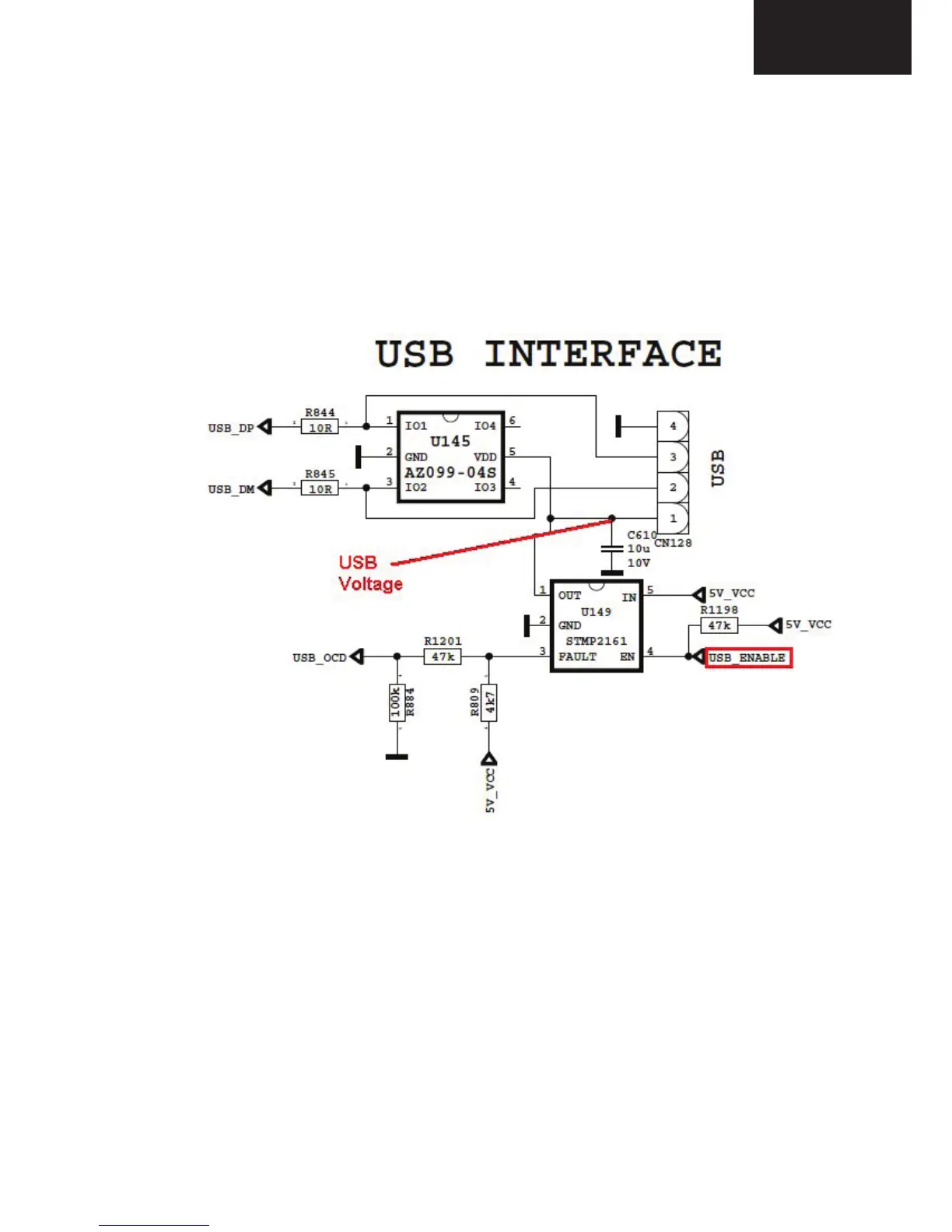

Check USB Supply, It should be nearly 5V. Also USB Enable should be logic high.
