LC-22AD1E
Æ Cautions when handling the LCD panel
1. Work in a clean room (relative humidity: 50% or more).
2. The workers must wear an earth band.
3. Do not expose it to shocks such as drop or vibration.
4. Use an ionizer (within 30 cm).

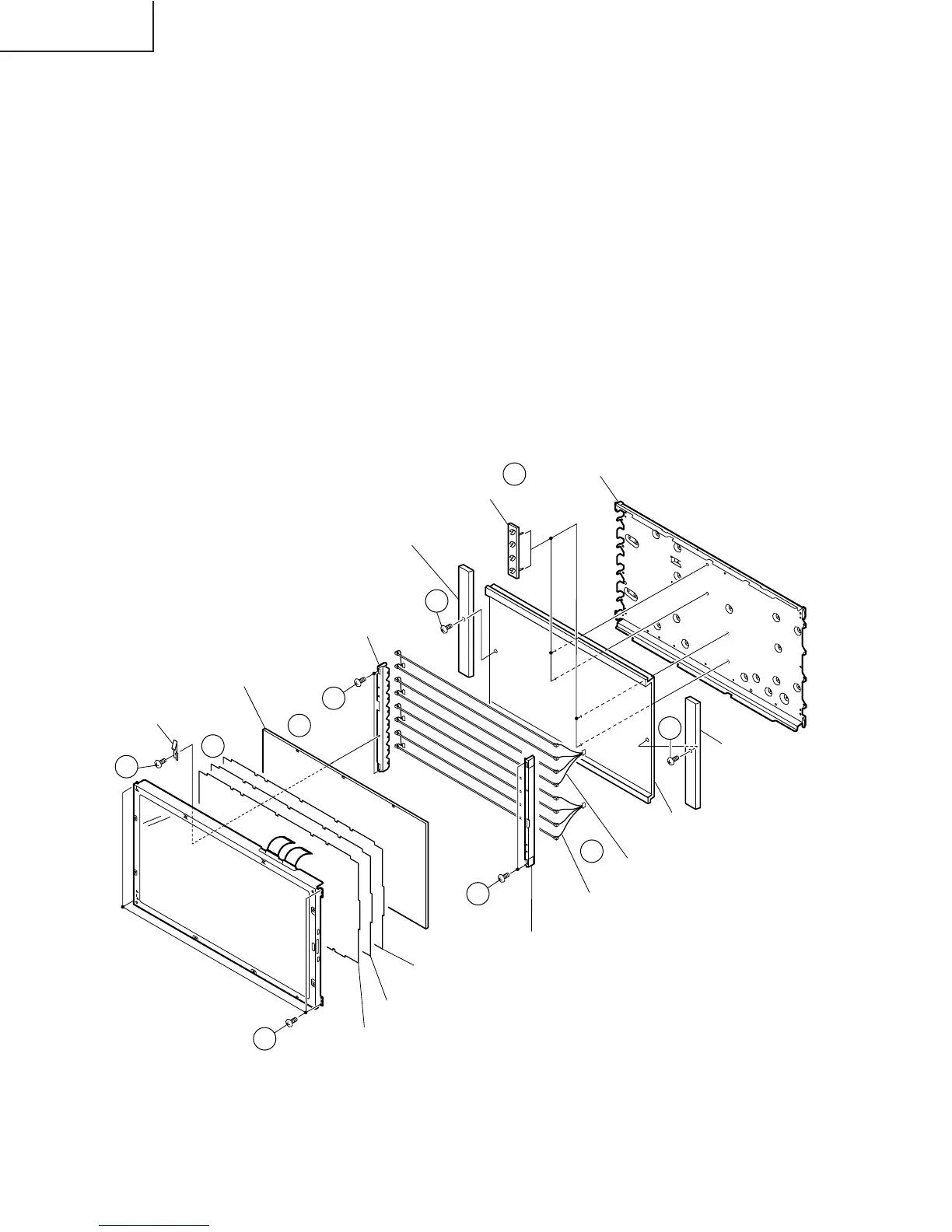

28. Remove the 4 LCD panel fixing screws to detach the LCD panel unit.
29. Remove the ITO earth fixing angle fixing screw to detach the ITO fixing angle.
30. Detach the reflection/polarization sheet, prism sheet, diffusion sheet, and diffusion plate.
31. Remove each 2 lamp fixing holder (upper) fixing screws to detach the lamp fixing holders (upper).
32. Detach the lamp units A and B.
33. Remove each 1 lamp fixing holder (lower) fixing screws to detach the lamp fixing holders (lower).
34. Detach the 2 lamp clips.
28
31
31
33
33
34
30
32
30
29
ITO Earth Spring
(MSPRP1220CEFW)
22" LCD panel unit
(RLCDTA021WJZZ)
Diffusion Panel
(PCOVU0108CEZZ)
Reflection Sheet
(PSHEPA112WJZZ)
Lamp Fixing Holder
(Bottom)
(LHLDZA219WJKZ)
Lamp Fixing Holder (Top)
(LHLDZA218WJKZ)
Lamp Fixing Holder (Bottom)
(LHLDZA219WJKZ)
Lamp Clip
(LHLDZA223WJKA)
Back Sheilding Plate
(PSLDMA322WJFW)
Reflection/Deflection Sheet
(PSHEPA003WJZZ)
Prism Sheet
(PSHEPA002WJZZ)
Diffusion Sheet
(PSHEP0294CEZZ)
Lamp Fixing Holder (Top)
(LHLDZA218WJKZ)
Lamp Unit-A
(KLMP-A022WJZZ)
Lamp Unit-B
(KLMP-A023WJZZ)
