13
LC-22AD1E

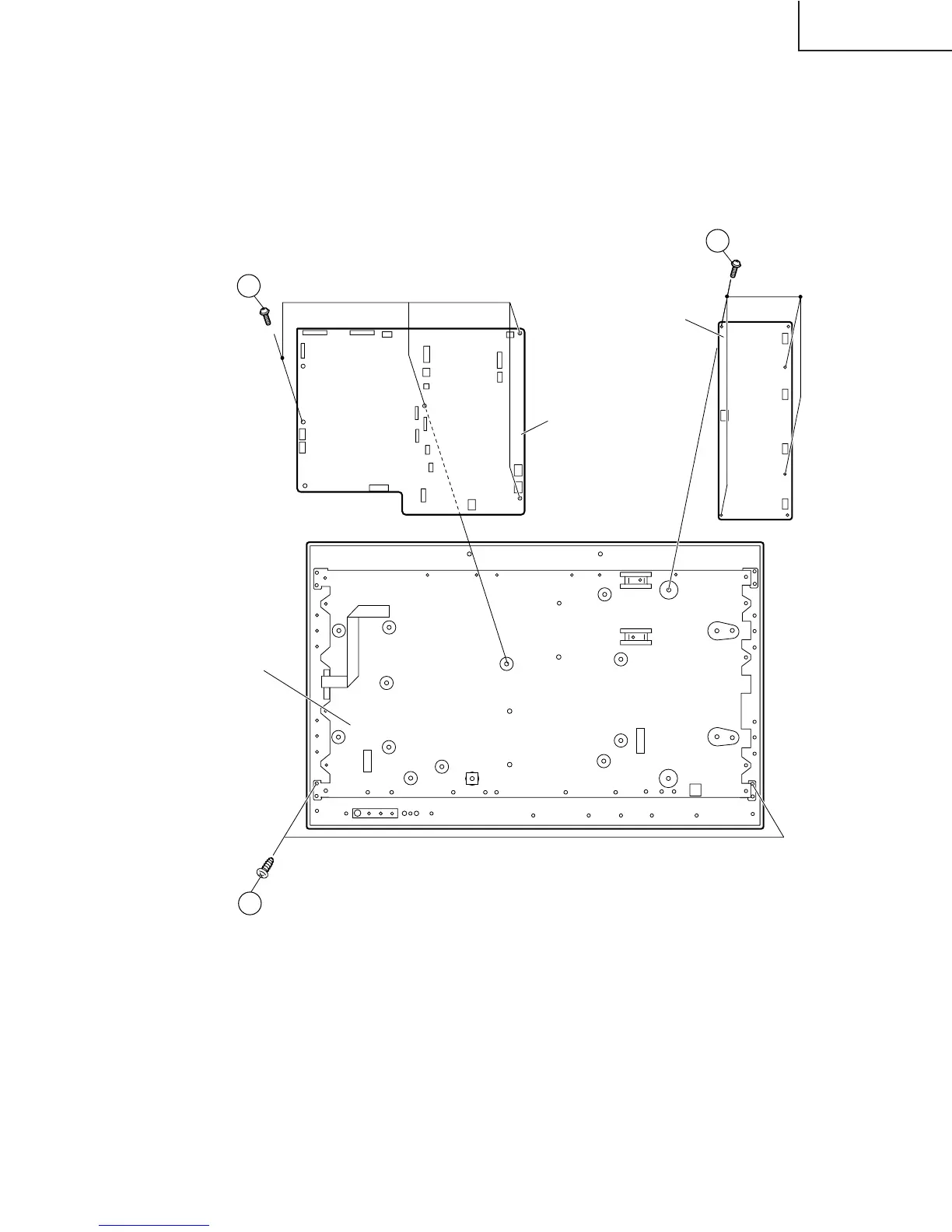

25. Remove the 4 MAIN PWB fixing screws to detach the MAIN PWB.
26. Remove the 4 INVERTER PWB fixing screws to detach the INVERTER PWB.
27. Remove the 2 LCD panel fixing screws to detach the LCD panel unit.
25
26
27
INVERTER PWB
MAIN PWB
Back Shielding Plate
