20

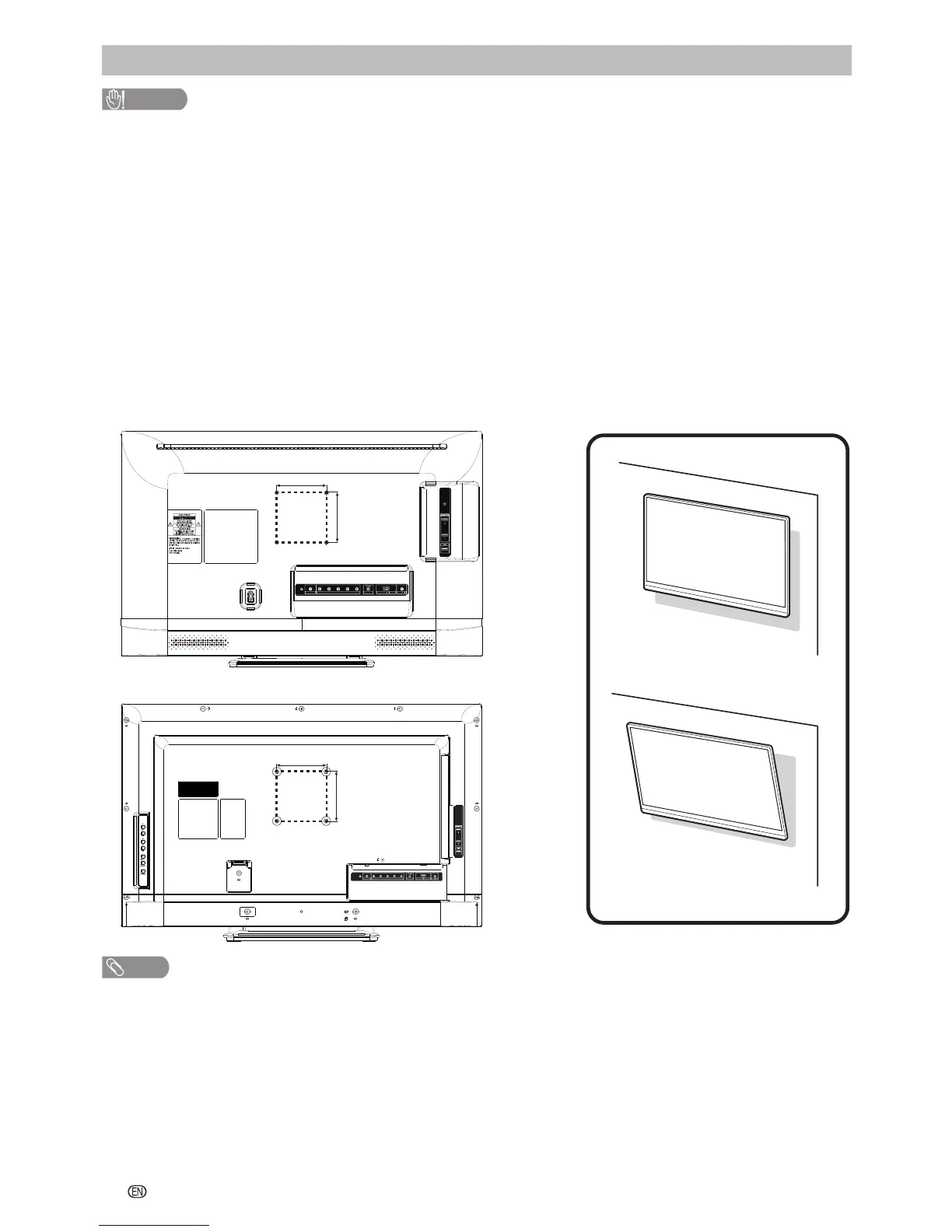

Setting the TV on the Wall
CAUTION
•
Installing the TV requires special skill that should only be performed by qualified service personnel. Customers
should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or
mounting that results in accident or injury.
•
Please read the instructions of your wall bracket to properly wall mount the TV.
Wall mounting the TV:
1. Carefully place the TV face down on a soft and flat surface (blanket, foam, cloth, etc) to prevent any damage to
the TV.
2. Purchase a VESA compatible wall bracket:
LC-23LE160H: VESA 75 x 75 mm, 4 holes, M4, 9mm.
LC-32LE160H/LC-32LE165H: VESA 100 x 100 mm, 4 holes, M6, 16mm.
3. Locate the ideal TV position on the wall.
4. Fix the wall bracket firmly on the wall.
5. Secure the TV to the bracket using the 4 mount screws attached to the mount holes on the back and center of
the TV.
COM PONENT /AV IN
DTV /ATV
VGA P C
VGA P C
Y/VI DEO Pb P r L-AU DIO-RCOAX IAL AUDI O IN
DIGIT AL AUDI O OUT
HEAD PHONE
CAU TIO N
TO PREVE NT ELEC TRIC SH OCK
DO NOT RE MOVE CO VER.
NO-US ER SERVI CEABL E PARTS IN SIDE.
REFER S ERVICI NG TO QUA LIFIE D
SERVIC E PERSO NNEL .
，
COMP ONENT /AV IN
DTV/ ATV
VGA PC
VGA PC
Y/VIDE O Pb Pr L- AUDIO -RCOAXIA L AUDIO IN
DIGITA L AUDIO OU T
HEADPH ONE
75
75
100
100
Angular mounting
Vertical mounting
LC-23LE160H
LC-32LE160H/LC-32LE165H
NOTE
•
The illustration is based on LC-32LE160H.
