4

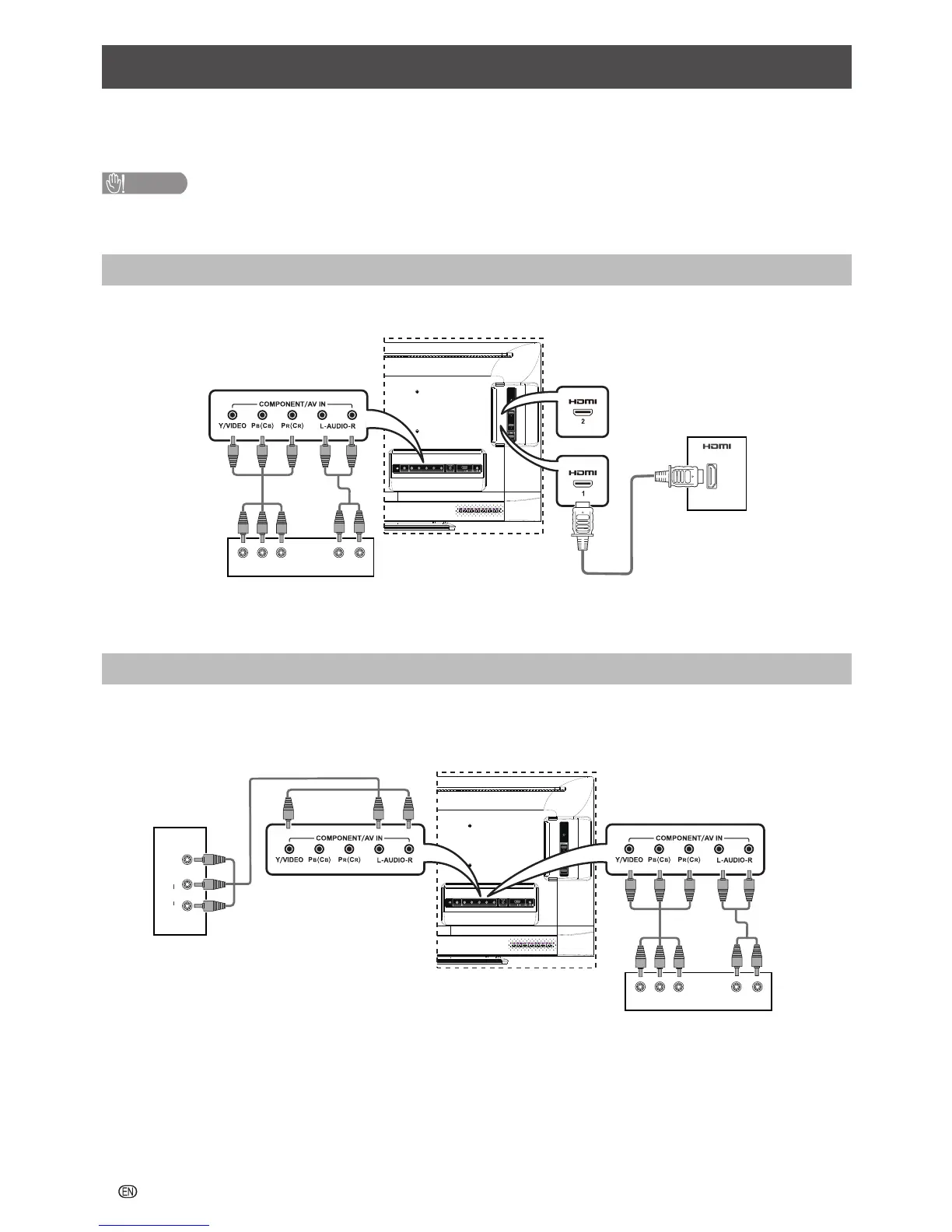

Connecting external devices
You can connect many types of external equipment to your TV, like a VCR, game console, camcorder, DVD player,
Digital TV STB (Set Top Box) and PC. To view external source images, select the input source either from
b
on
the remote control unit or INPUT button on the TV body of LC-32LE160H and LC-32LE165H.
CAUTION
•
To protect all equipment, always turn off the TV before connecting to a VCR, game console, camcorder, DVD player, Digital
TV STB (Set Top Box), PC or other external equipment.
•
Refer to the relevant operation manual (VCR, DVD player, etc.) carefully before making connections.
Connecting a DVD player/Digital TV STB (Set Top Box)
You can use the HDMI1/HDMI2/YPbPr terminals when connecting to a DVD player/Digital TV STB (Set Top Box)
and other audiovisual equipment.
COMP ONENT /AV IN
DTV/ ATV
VGA PC
VGA PC
Y/VID EO Pb Pr L-AUD IO-RCOAXI AL AUDIO I N
DIGITA L AUDIO O UT
HEADP HONE
L RPB
(CB)
P
R
(C
R
)
Y
DVD player
Digital TV
STB (Set Top Box)
DVD player
Digital TV STB
(Set Top Box)
When using HDMI-certified cable
(commercially available)
When using component cable
(commercially available)
Connecting a VCR, game console or camcorder
A VCR, game console, camcorder and some other audiovisual equipment can be conveniently connected using
the YPbPr or VIDEO terminals.
COMP ONENT /AV IN
DTV/ ATV
VGA PC
VGA PC
Y/VID EO Pb Pr L-AUD IO-RCOAXI AL AUDI O IN
DIGITA L AUDIO O UT
HEADP HONE
L RPB
(CB)
P
R
(C
R
)
Y
AUDIO
L
R
VIDEO
VCR/
Game console/
Camcorder
When using component cable
(commercially available)
VCR / Game console / Camcorder
When using composite A/V cable
(commercially available)
