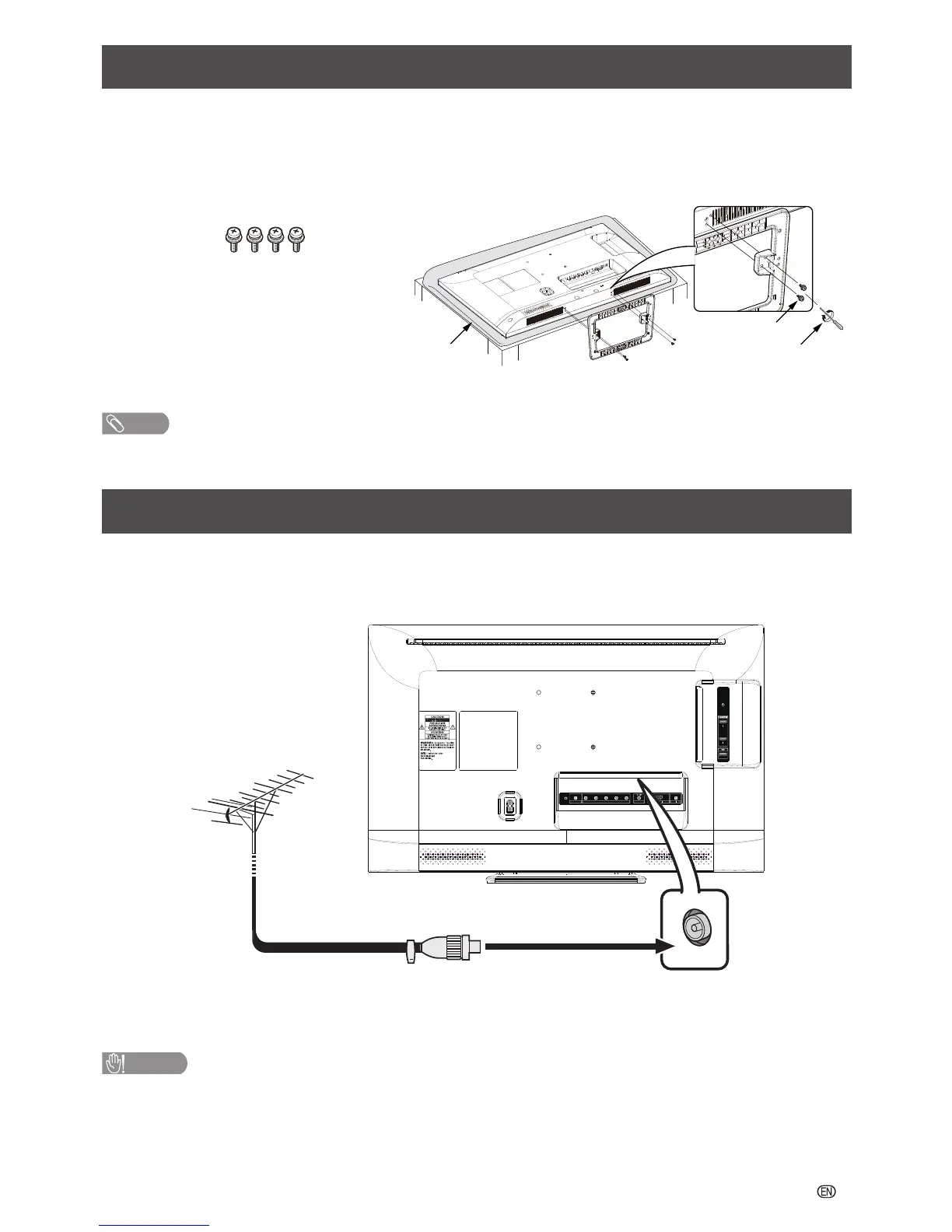

Attaching the stand
•
Before attaching (or detaching) the stand, unplug the AC cord from the AC outlet.
•
Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being
damaged.
1
Confirm the screws supplied with the TV.
4 screws (used in step 3)
2
1
Screw driver
Soft cushion
Screw
2
Attach the stand base to the rear of
the TV (
1
). Attach it with matching the
stand projections and TV holes, when
you assemble the stand.
3
Insert and tighten the 4 screws into the
4 holes on the bottom of the stand base
(
2
).
NOTE
•
To detach the stand, perform the steps in reverse order.
•
The illustrations used throughout this manual are based on LC-23LE160H.
Setting the TV
Connecting the antenna cable
To enjoy a clearer picture, use an outdoor antenna.
COM PONEN T/AV IN
DTV /ATV
VGA P C
VGA P C
Y/VI DEO Pb Pr L-AU DIO-RCOAX IAL AUDI O IN
DIGIT AL AUDI O OUT
HEAD PHONE
An outdoor antenna
Aerial connections: IEC(female).
Input impedance: 75Ω unbalanced.
To antenna terminal
CAUTION
•
TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES
WITH THE AC CORD CONNECTED.
