5. Remove the speaker (R) , (L) .
6. Remove the 4 lock screws , and detach the POWER Unit
.
7. Remove the 2 lock screws , and detach the MAIN Unit.
8. Remove the LED PWB .
7
8
9
10
11

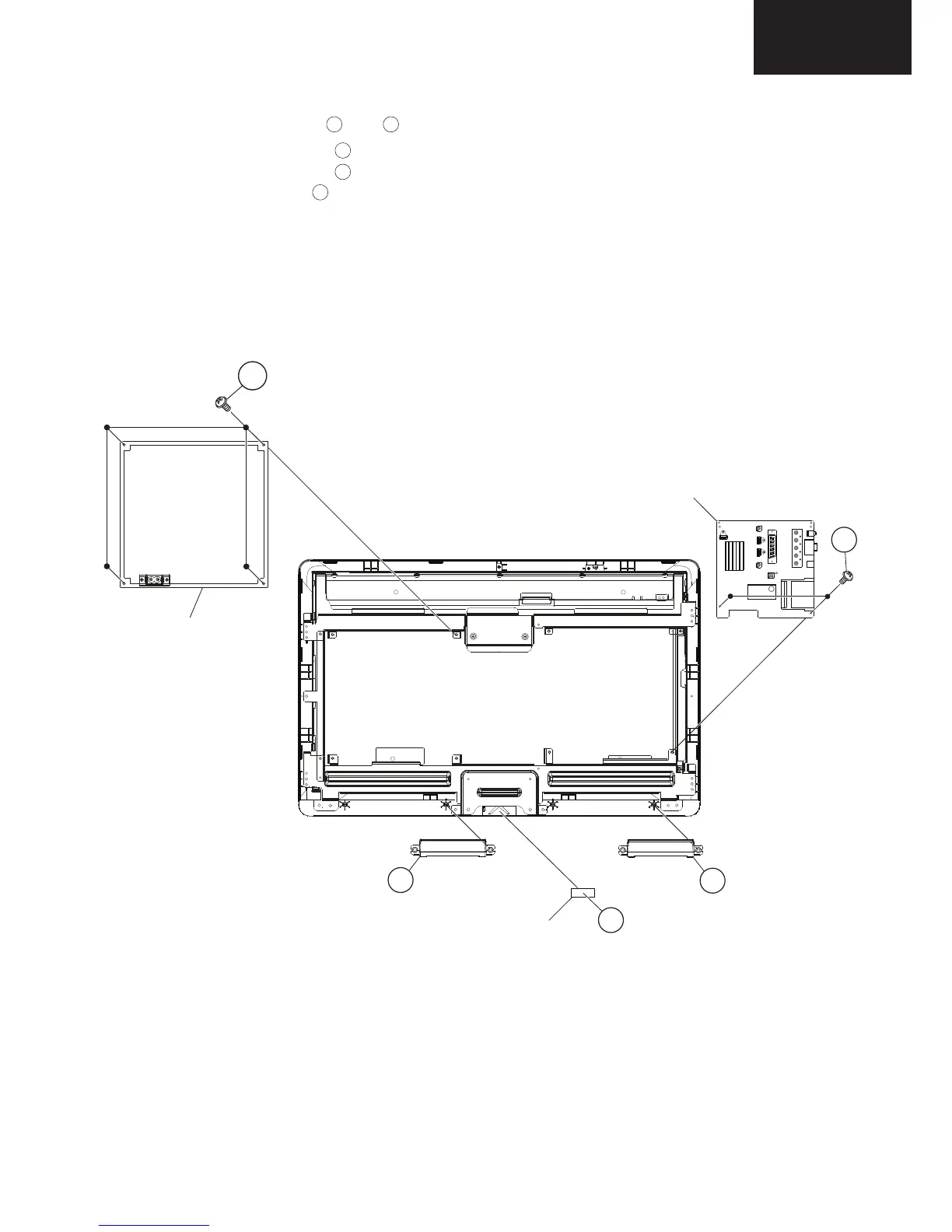

Removing of major parts (Continued)
9
POWER Unit
MAIN Unit
10
8
Speaker (L)
7
Speaker (R)
LED PWB
11
