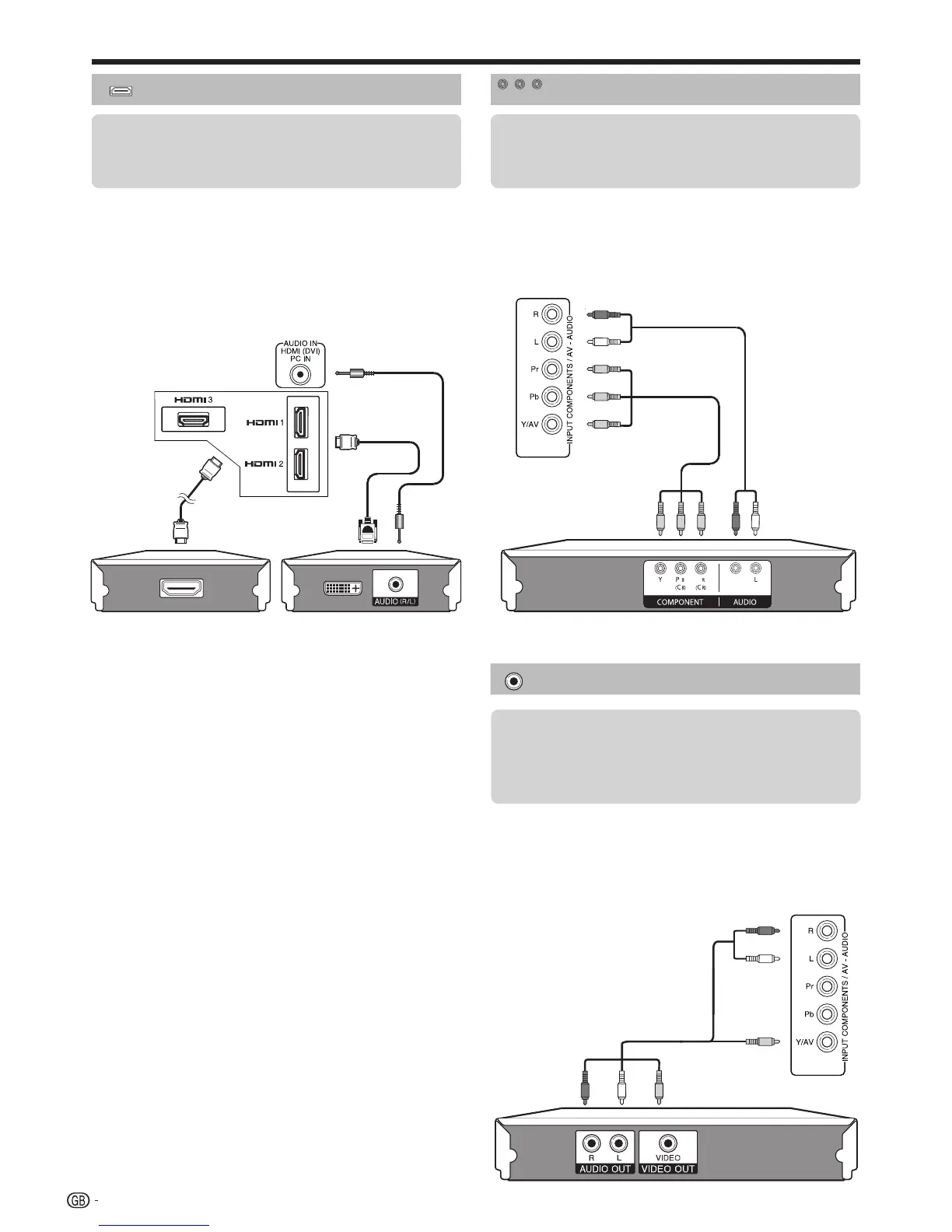

Connecting external devices
HDMI connection
The HDMI connections permit digital video and audio
transmission via a connection cable from a player/
recorder. The digital picture and sound data are
transmitted without data compression and therefore
lose none of their quality. Analogue/digital conversion
is no longer necessary in the connected devices, which
also would result in quality losses.
DVI/HDMI conversion
Using a cable DVI/HDMI, the digital signals of a DVD
video, can be also reproduced through a compatible
HDMI connection. The sound should be supplied
additionally.
• On connecting a DVI/HDMI cable to the HDMI terminal, may
be the picture does not become visualized clearly.
• Both HDMI and DVI use the same method of HDCP protection
against copy.
• For connecting a DVI cable, a commercially available adaptor
(not supplied) is necessary.
NOTE
• Depending on the type of HDMI cable used, it may appear
a video noise. Be sure to use a certified HDMI cable.
• On reproducing HDMI picture, the best format is
automatically detected and adjusted for the picture
.
Compatible video signal
576i, 576p, 480i, 480p, 1080i, 720p, 1080p
Component connection
You will enjoy accurate colour reproduction and high
quality images through the INPUT COMPONENTS /
AV terminal when connecting a DVD player/recorder or
other device.
You can use the COMPONENTS/AV terminal when
connecting to a game console, camcorder, a DVD
player / recorder or other device.
VIDEO connection
14
DVI/HDMI
cable
ø 3.5 mm
stereo mini
jack cable
HDMI-certified
cable
Audio cable
Components
cable
AV cable
Example of connectable devices
●
DVD player/recorder
●
Blu-ray player/recorder
●
Game console
Example of connectable devices
●
VCR
●
DVD player/recorder
●
Blu-ray player/recorder
Example of connectable devices
●
VCR
●
DVD player/recorder
●
Blu-ray player/recorder
●
Game console
●
Camcorder
YPB
(
CB)
PR
(
CR)
R
P
