LC-24LE240
 178%6&PSGO(MEKVEQ
5.3 Reset Circuit
Reset circuit using for initializing main Mstar IC. Reset condition is high and normal working condition is
low for RESET pin.

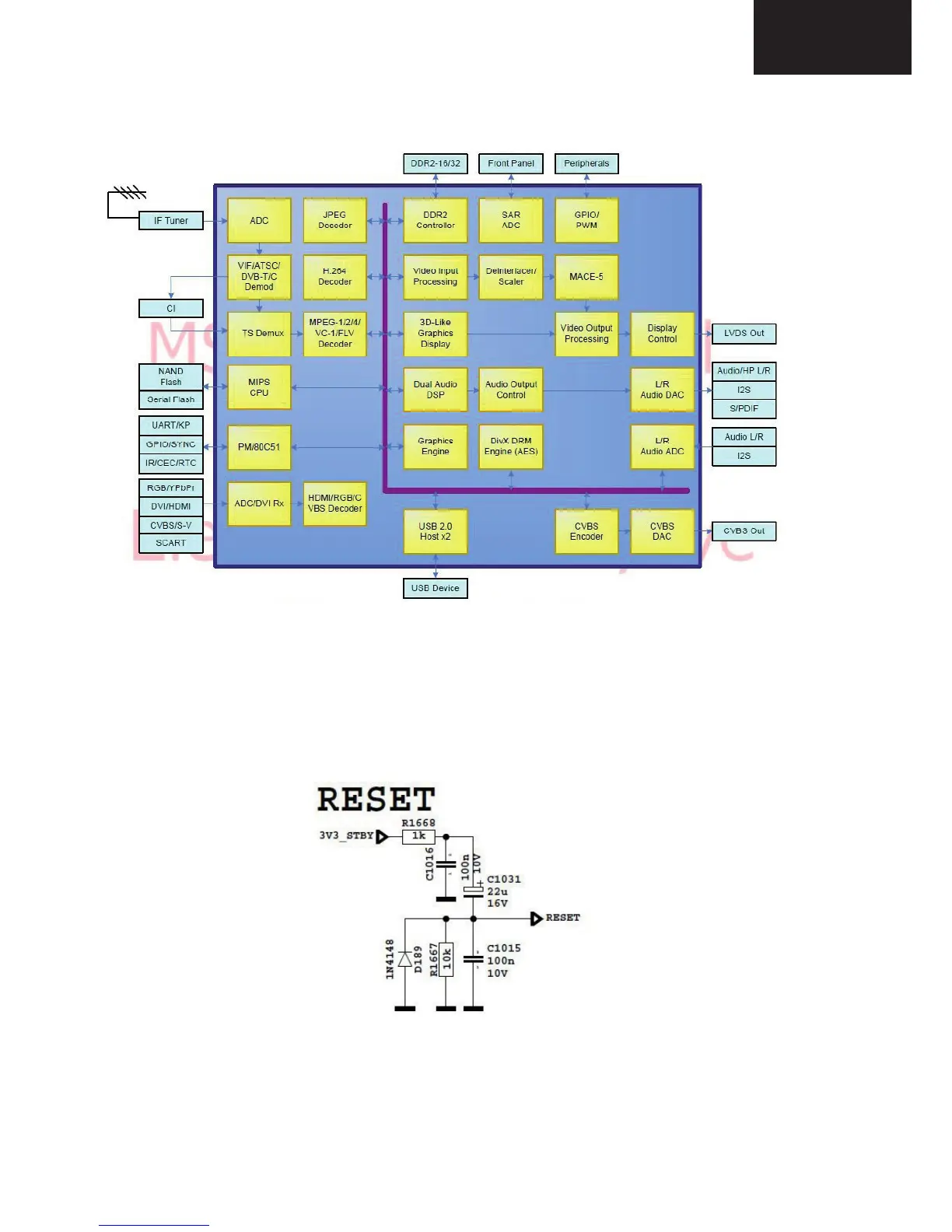

5.2. MSTAR Block Diagram
