General
Description
This P-Channel 2.5V specified MOSFET is produced using Fairchild’s advanced
PowerTrench
® process that has been especially tailored to minimize on-state resistance
and yet maintain low gate charge for superior switching performance.
These devices have been designed to offer exceptional power dissipation in a very small
footprint for applications where the larger packages are impractical.
16.2. Features
x 0D[U'6RQ PȍDW9 *6  -4.5 V, ID = -4.0 A
x 0D[U'6RQ PȍDW9 *6  -2.5 V, ID = -3.2 A
x Fast switching speed
x Low
g
ate char
g
e
(
11nC t
yp
ical
)
x High performance trench technology for extremely low rDS(on)
x SuperSOTTM-6 package: small footprint (72% smaller than standard SO-8);
low profile (1 mm thick)
x Termination is Lead-free and RoHS Compliant

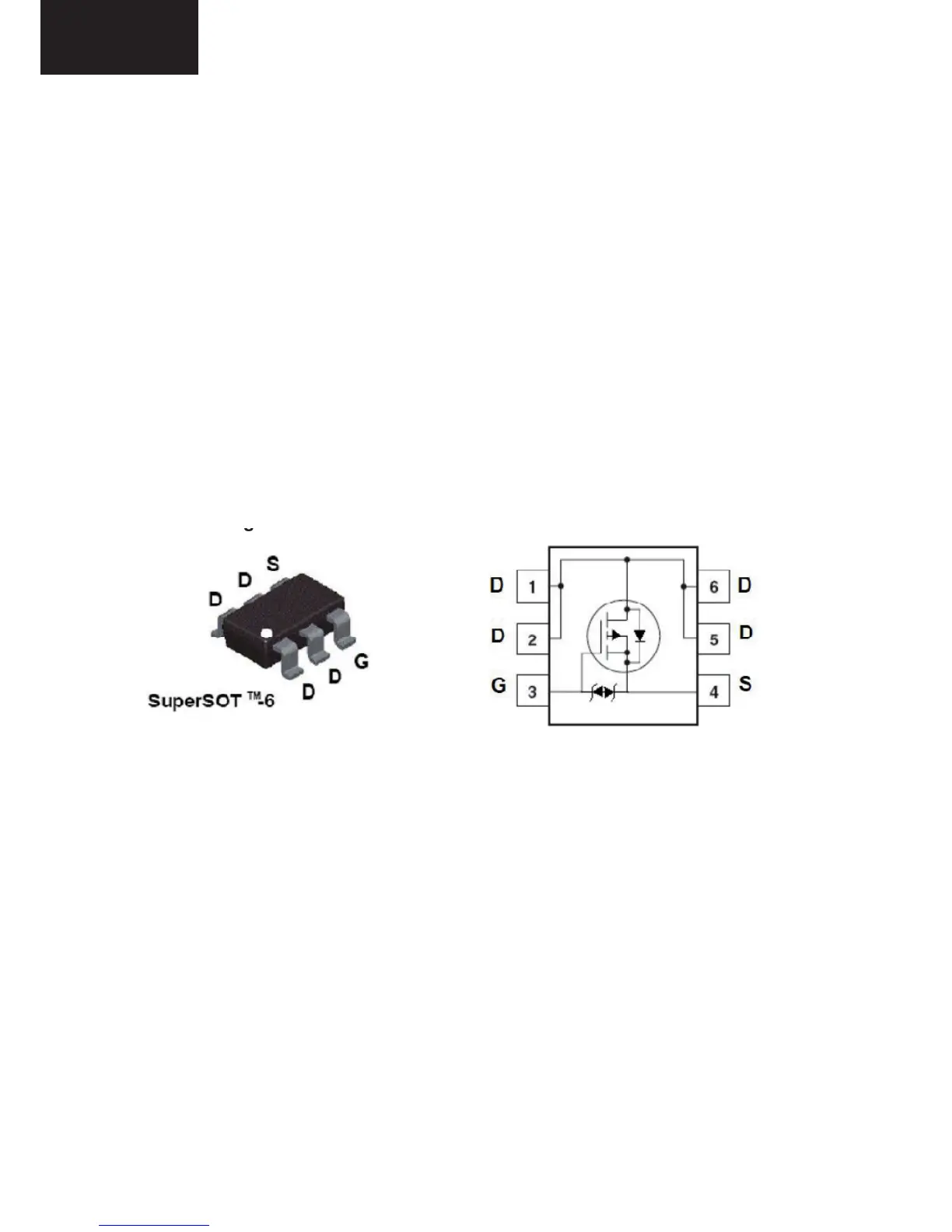

16.3. Pinning
16. FDC642
16.1. General Description
16.2. Features
16.3. Pinning

Sharp LC-24LE240E Specifications

General

Response time	8 ms
Display diagonal	24 \
Display brightness	250 cd/m²
Native aspect ratio	16:9
LED backlighting type	Edge-LED
Supported video modes	1080p
Contrast ratio (dynamic)	30000:1
Display diagonal (metric)	60 cm
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
Number of AV connections	1
Annual energy consumption	28 kWh
Product color	Black
Mercury content	0 mg
Panel mounting interface	75 x 75 mm
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-T
RMS rated power	5 W
Number of speakers	2
HDMI version	1.3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Video formats supported	DIVX, H.264, MPEG4
Power consumption (off)	0.01 W
Power consumption (standby)	0.5 W
Power consumption (typical)	19 W

Weight and Dimensions

Depth (with stand)	149 mm
Height (with stand)	405 mm
Weight (with stand)	5200 g
Depth (without stand)	36 mm
Width (without stand)	580 mm
Height (without stand)	380 mm
