Sharp LC-24LE240E Service Manual

37
LC-24LE240
 4ERIP7YTTP]7[MXGL'MVGYMX
8LMW W[MXGL MW YWIH XS STIR ERH GPSWI TERIP WYTTP]SJ 8'32 -X MW GSRXVSPPIH F] TSVX SJ
QEMRYGSRXVSPPIV%PWS[MXLXLMWGMVGMXTERIPWIUYIRG]GSYPHFIEHNYWXIHGSVVIGXP]TERIP
WYTTP]WEVIGSRRIGXIHXSXLMWGMVGYMX%PPSJXLIQEVISTXMSREPEGGSVHMRKXSTERIPW
9. Scaler and LVDS Sockets

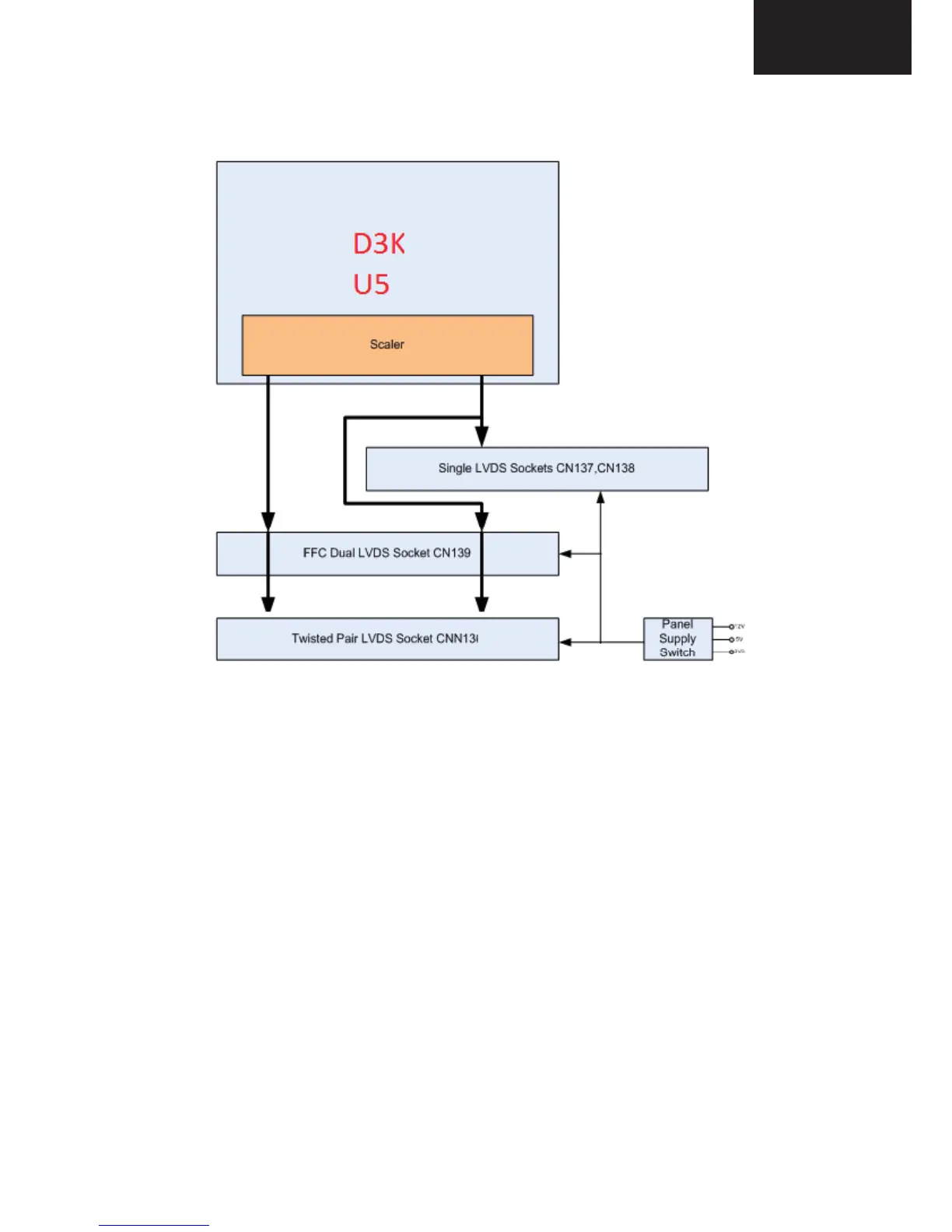

9.1. LVDS sockets Block Diagram
9.2. Panel Supply Switch Circuit
This switch is used to open and close panel supply of TCON. It is controlled by port of main
ucontroller. Also with this circuit panel sequency could be adjusted correctly. 3 panel supplies are
connected to this circuit. All of the them are optional according to panels.

Sharp LC-24LE240E Specifications

General

Response time	8 ms
Display diagonal	24 \
Display brightness	250 cd/m²
Native aspect ratio	16:9
LED backlighting type	Edge-LED
Supported video modes	1080p
Contrast ratio (dynamic)	30000:1
Display diagonal (metric)	60 cm
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
Number of AV connections	1
Annual energy consumption	28 kWh
Product color	Black
Mercury content	0 mg
Panel mounting interface	75 x 75 mm
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-T
RMS rated power	5 W
Number of speakers	2
HDMI version	1.3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Video formats supported	DIVX, H.264, MPEG4
Power consumption (off)	0.01 W
Power consumption (standby)	0.5 W
Power consumption (typical)	19 W

Weight and Dimensions

Depth (with stand)	149 mm
Height (with stand)	405 mm
Weight (with stand)	5200 g
Depth (without stand)	36 mm
Width (without stand)	580 mm
Height (without stand)	380 mm
