Sharp LC-24LE240E Service Manual

55
LC-24LE240
78&=C323**WLSYPHFIPS[JSVWXERHF]SRGSRHMXMSRTPIEWIGLIGO6
 '-1SHYPI4VSFPIQ
4VSFPIQ'-MWRSX[SVOMRK[LIR'-QSHYPIMRWIVXIH
4SWWMFPIGSYWIW7YTTP]WYTP]GSRXVSPTMRHIXIGXTMRWQIGLERMGEPTSWMXMSRWSJTMRW
'-WYTTP]WLSYPFI:[LIR'-QSHYPIMRWIVXIH-JMXMWRSX:TPIEWIGLIGO
'-C43;)6C'860XLMWTMRWLSYPHFIPS[

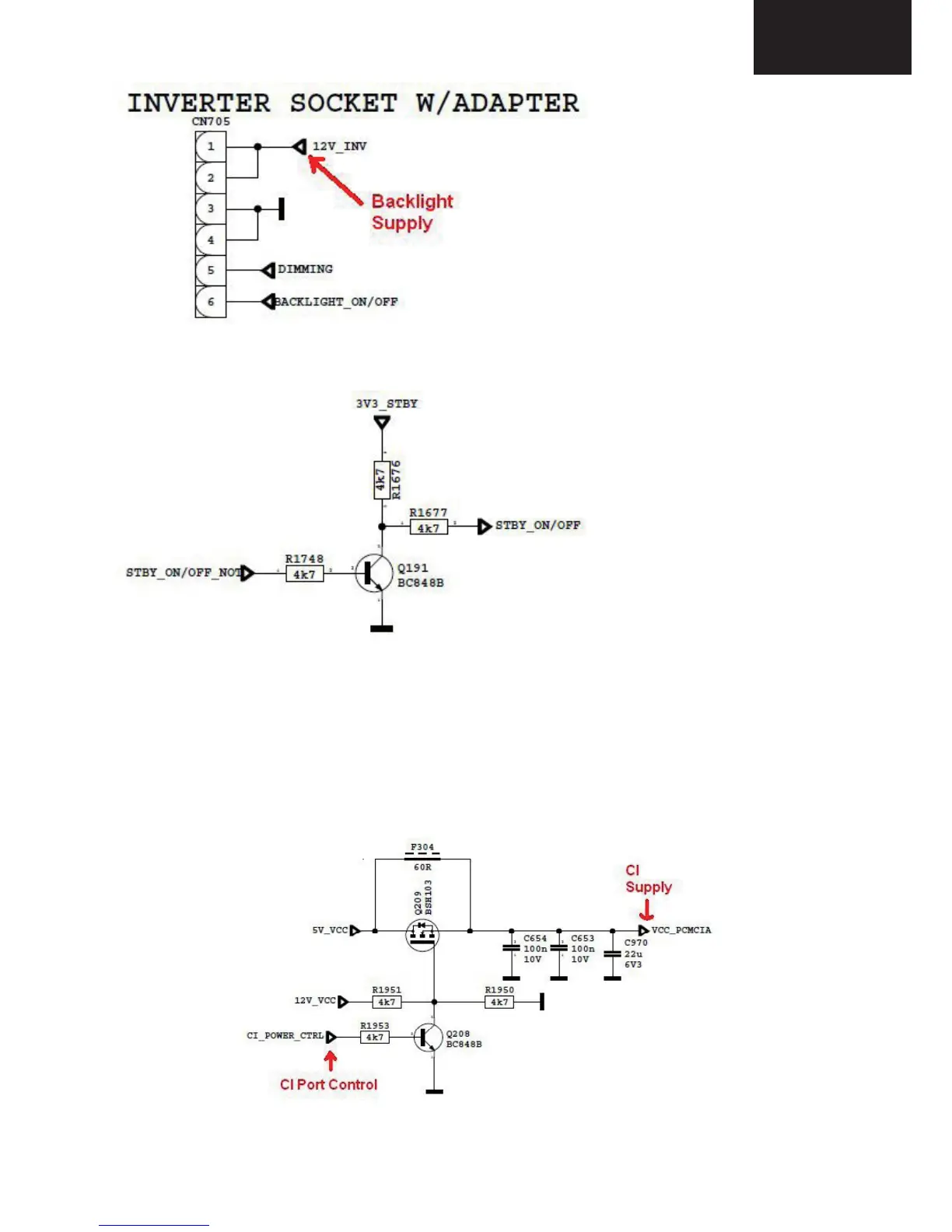

2. CI Module Problem
Problem: CI is not working when CI module inserted.
Possible causes: Supply, supply control pin, detect pins, mechanical positions of pins
CI supply should be 5V when CI module inserted. If it not 5V please check
CI_POWER_CTRL, this pin should be low.

Sharp LC-24LE240E Specifications

General

Response time	8 ms
Display diagonal	24 \
Display brightness	250 cd/m²
Native aspect ratio	16:9
LED backlighting type	Edge-LED
Supported video modes	1080p
Contrast ratio (dynamic)	30000:1
Display diagonal (metric)	60 cm
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
Number of AV connections	1
Annual energy consumption	28 kWh
Product color	Black
Mercury content	0 mg
Panel mounting interface	75 x 75 mm
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-T
RMS rated power	5 W
Number of speakers	2
HDMI version	1.3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Video formats supported	DIVX, H.264, MPEG4
Power consumption (off)	0.01 W
Power consumption (standby)	0.5 W
Power consumption (typical)	19 W

Weight and Dimensions

Depth (with stand)	149 mm
Height (with stand)	405 mm
Weight (with stand)	5200 g
Depth (without stand)	36 mm
Width (without stand)	580 mm
Height (without stand)	380 mm
