English - 29 -

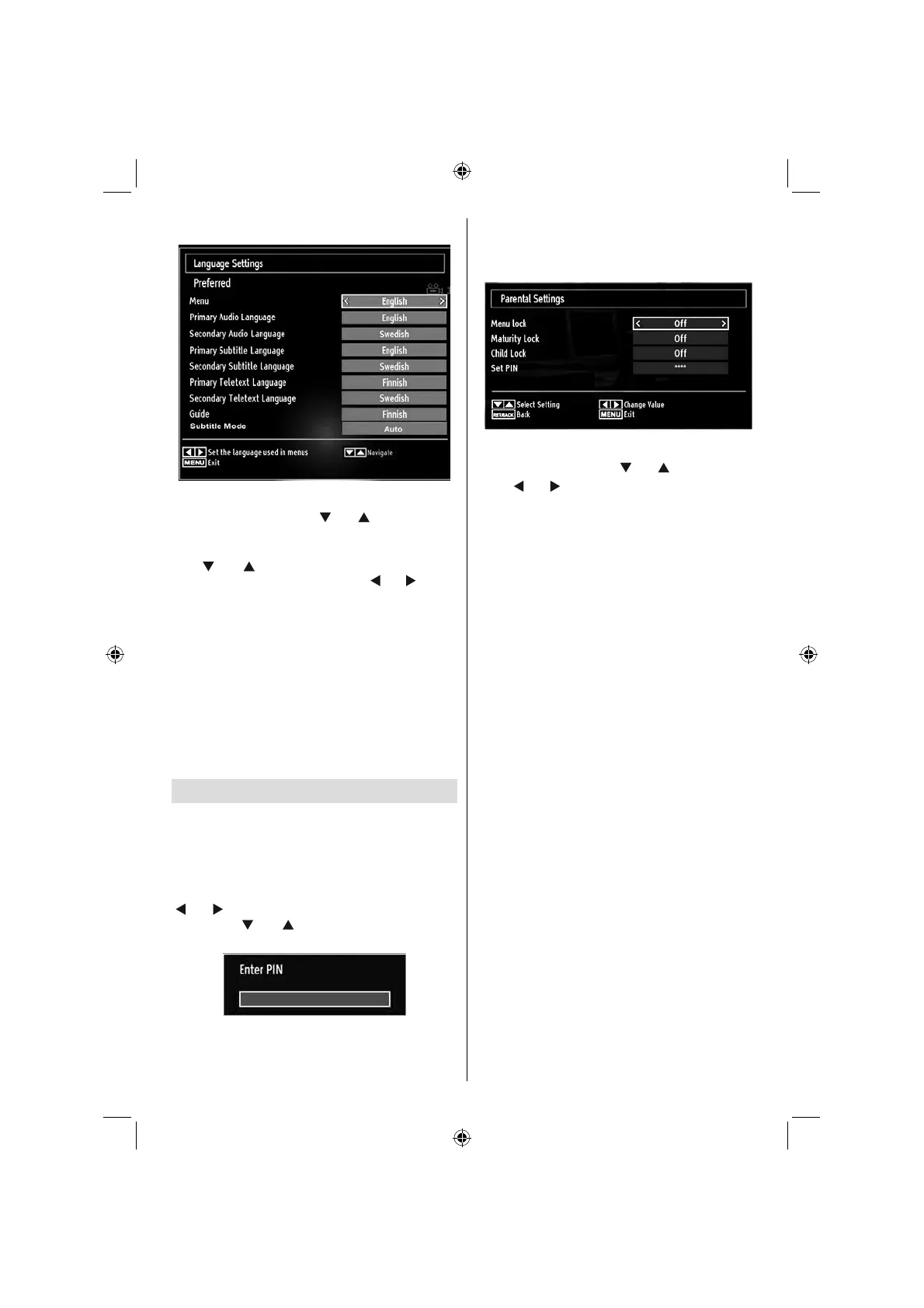

Language Settings
In the con guration menu, highlight the Language
Settings item by pressing “
” or “ ” buttons. Press
OK and Language Settings submenu will be displayed
on the screen:
Use “
” or “ ” buttons to highlight the menu item
that will be adjusted and then press “ ” or “ ” button
to set.
Notes:
System Language determines the on-screen menu
language.
Audio Language is used for selecting the soundtrack
of a channels.
Primary settings are the rst priority when multiple
choices are available on a broadcast. Secondary
settings are the alternatives when the rst options
are not available.
Subtitle Mode de nes the current subtitle option.
Parental Control
To prohibit viewing of certain programmes, channels
and menus can be locked by using the parental
control system.
This function enables or disables the menu protection
system and allows the PIN code to be changed.
Press “MENU” button and select the icon by using
” or “ ” button. Press OK button to view Settings
menu. Use “ ” or “ ” button to highlight Parental
and press OK to continue:
To display parental lock menu options, PIN number
should be entered. Factory default PIN number is
0000.
Note: If the Country option is set to France, you can
use 4725 as the default code.
After coding the correct PIN number, parental settings
menu will be displayed:
Parental Settings Menu Operation
Select an item by using “ ” or “ ” button.
Use “
” or “ ” button to set an item.
Press OK button to view more options.
Menu Lock: Menu lock setting enables or disables
the menu access. You can disable access to the
installation menu or the whole menu system.
Maturity Lock (optional): When set, this option
gets the maturity information from the broadcast and
if this maturity level is disabled, disables access to
the broadcast.
Child Lock (optional): When Child Lock is set, the TV
can only be controlled by the remote control. In this
case the control panel buttons will not work, except
for the Standby Off/On button. When Child Lock is
activated you are able to switch the TV into Standby
mode with the Standby Off/On button. To switch the
TV on again, you need the remote control. Hence, if
one of those buttons is pressed, Child Lock Is On
will be displayed on the screen when the menu screen
is not visible.
Set PIN: De nes a new PIN number. Use numeric
buttons to enter a new pin number. You will need
to code your new pin a second time for veri cation
purposes.
IMPORTANT: The factory default pin number is 0000,
if you change the pin number make sure you write it
down and keep it safe.
Note: If the Country option is set to France, you can
use 4725 as the default code.
A01_MB62_[GB]_1910UK_IDTV_TC_PVR_BRONZE19_24942LED_ROCKER_ZIGGO_10077476_50211339.indd 29A01_MB62_[GB]_1910UK_IDTV_TC_PVR_BRONZE19_24942LED_ROCKER_ZIGGO_10077476_50211339.indd 29 15.03.2012 16:27:3015.03.2012 16:27:30

Table of Contents

Other manuals for Sharp LC-24LE240E

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Sharp LC-24LE240E and is the answer not in the manual?

Sharp LC-24LE240E Specifications

General IconGeneral
Response time8 ms
Display diagonal24 \
Display brightness250 cd/m²
Native aspect ratio16:9
LED backlighting typeEdge-LED
Supported video modes1080p
Contrast ratio (dynamic)30000:1
Display diagonal (metric)60 cm
Supported graphics resolutions1920 x 1080 (HD 1080)
3DNo
Number of AV connections1
Annual energy consumption28 kWh
Product colorBlack
Mercury content0 mg
Panel mounting interface75 x 75 mm
Tuner typeAnalog & digital
Analog signal format systemNTSC, PAL, SECAM
Digital signal format systemDVB-T
RMS rated power5 W
Number of speakers2
HDMI version1.3
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity0
Video formats supportedDIVX, H.264, MPEG4
Power consumption (off)0.01 W
Power consumption (standby)0.5 W
Power consumption (typical)19 W
Weight and Dimensions IconWeight and Dimensions
Depth (with stand)149 mm
Height (with stand)405 mm
Weight (with stand)5200 g
Depth (without stand)36 mm
Width (without stand)580 mm
Height (without stand)380 mm
