TROUBLESHOOTING GUIDE
(DVD SECTION)

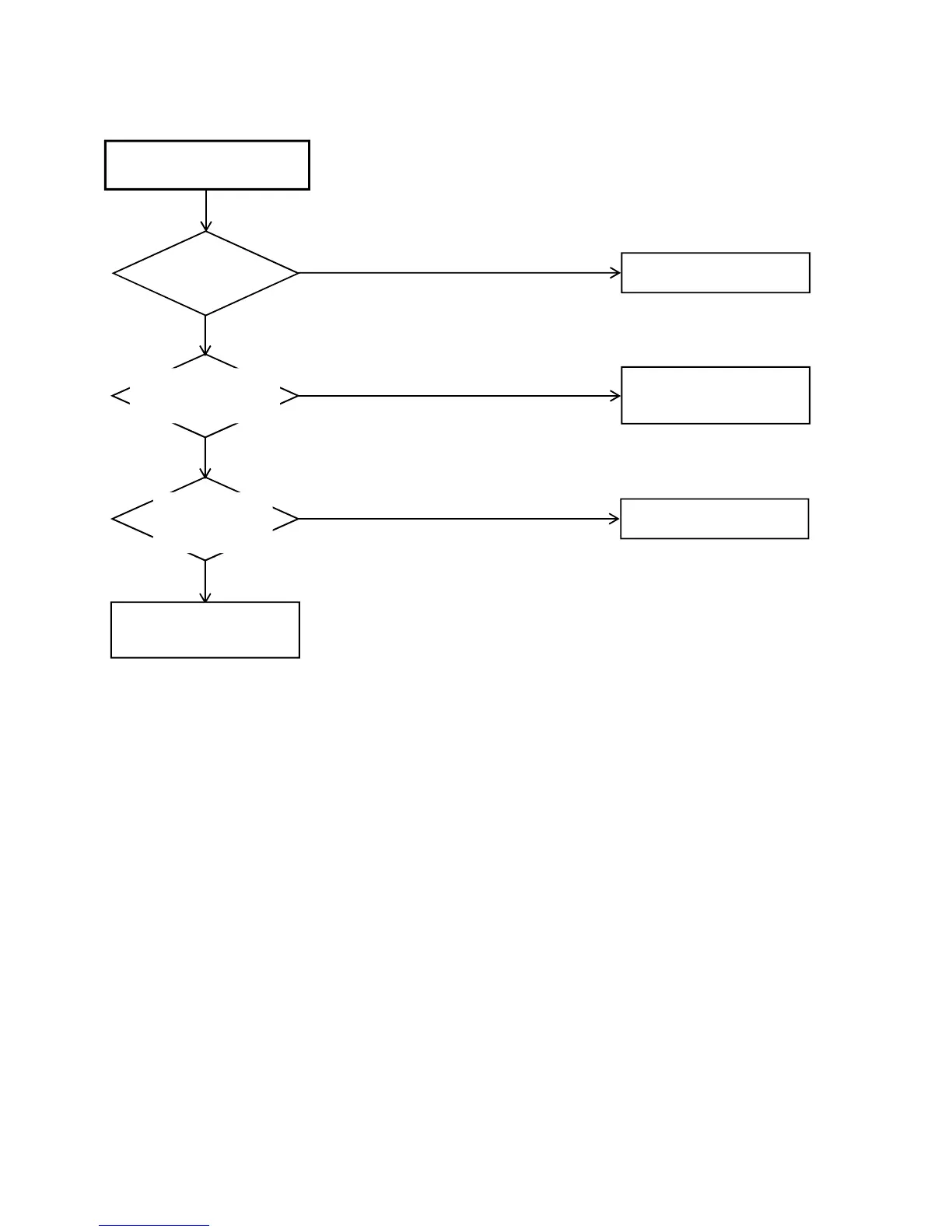

DOES NOT DISPLAY DVD
Does this display
logo picture?
Does IC4001 gets
P.CON+3.3V and
P.CON+1.8V?
Check pins 8 and 10 of
CP8501 and peripheral circuit.
Yes
No
Yes
Change IC4001.
Check the disc.
Yes
No
Does this have signal
at pins 102 and 103 of
IC4001?
E-5
Check P.CON+3.3V and
P.CON+1.8V line.
No
E-5
